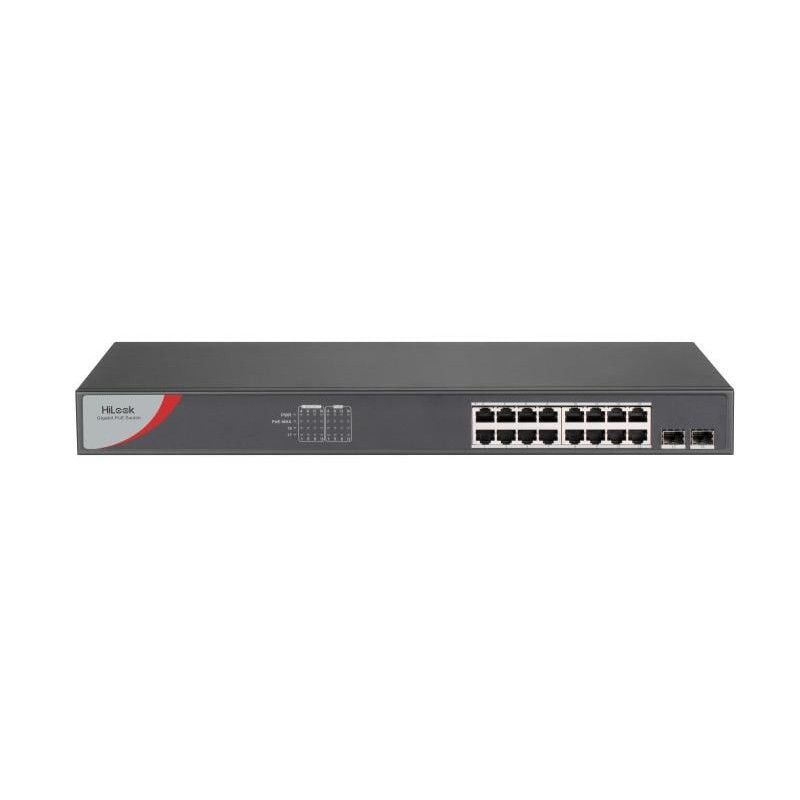

Switch 18 ports HiLook NS-0518P-125
Product reference: 26-6942160450278
  • Connectors: 16 × Gigabit PoE, 2 × Gigabit SFP optical
  • Standards: IEEE 802.3at/af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Protection: 6 kV surge protection (PoE ports)
  • PoE power management
  • Gigabit network connection
  • Wire-speed transmission
  • Switching: Store-and-forward
  • Housing: sturdy metal
Switch 18 ports HiLook NS-0518P-125

Switch 18 ports HiLook NS-0518P-125

Product reference: 26-6942160450278
  • Connectors: 16 × Gigabit PoE, 2 × Gigabit SFP optical
  • Standards: IEEE 802.3at/af, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Protection: 6 kV surge protection (PoE ports)
  • PoE power management
  • Gigabit network connection
  • Wire-speed transmission
  • Switching: Store-and-forward
  • Housing: sturdy metal
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
13540 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Security UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • General information
  • Dimensions (W × H × D) 440.00 mm × 44.00 mm × 220.80 mm (17.30'' × 1.70'' × 8.70'')
  • Total weight 3.57 kg (7.87 lb)
  • Installation Mode Rack (equipped with mounting ears)
  • Max. power consumption 150W
  • Net weight 2.50 kg (5.51 lb)
  • Working humidity 5% to 95% (no condensation)
  • Operating temperature 0 °C to 45 °C (32 °F to 113 °F)
  • Power consumption in sleep mode 25W
  • Power source 100-240 VAC, 50/60 Hz, Max. 2.5 A;
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 KV
  • Network settings
  • Internal cache memory 4.1 Mbits
  • MAC address table 8 K
  • Packet transfer rate 26.79 Mpps
  • Ports 16 × Gigabit PoE port, 2 × Gigabit fiber optical port
  • Switching performance 36 Gbps
  • PoE
  • Max PoE port power 30W
  • PoE port PoE: Ports 1 to 16
  • PoE power budget 125W
  • PoE power connector End span: 1/2(+), 3/6(-)
  • PoE standard IEEE 802.3af; IEEE 802.3at;

Manufacturer codeSWITCHNS0518P125
ManufacturerHilook
Weight2.567 kg
