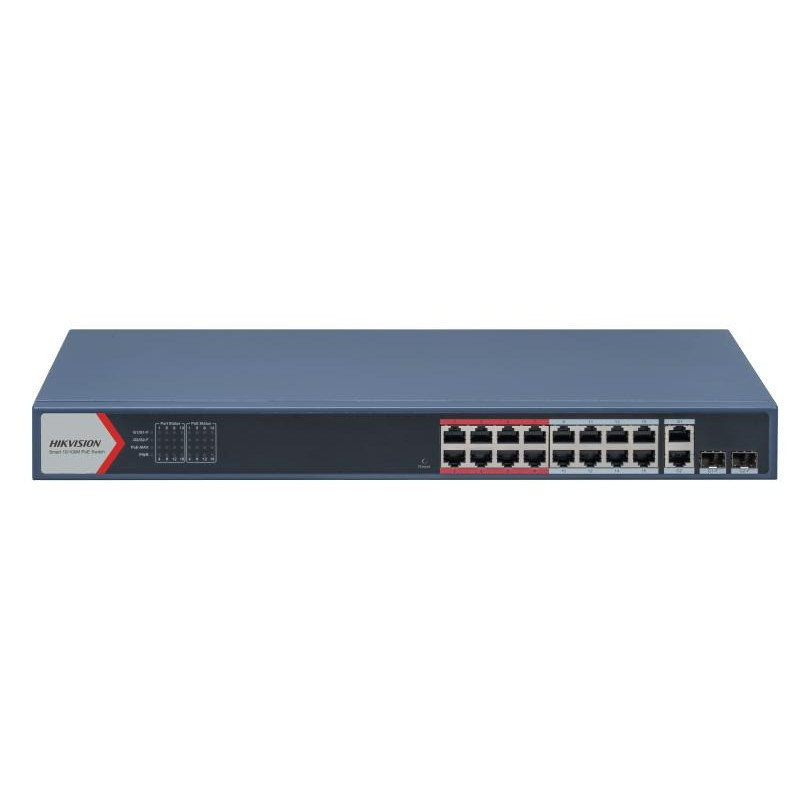

Switch 18 ports Hikvision DS-3E1318P-EI(B) (managed)
Product reference: 26-6942160495767
  • 16 × 100 Mbps PoE RJ45 ports, 2 × Gigabit combo ports
  • PoE ports comply with IEEE 802.3at/af standard
  • Network topology management, sending alerts, monitoring network status
  • 6 kV surge protection for PoE ports
  • AF/AT camera can reach up to 300 m in extended mode
Switch 18 ports Hikvision DS-3E1318P-EI(B) (managed)

Switch 18 ports Hikvision DS-3E1318P-EI(B) (managed)

Product reference: 26-6942160495767
  • 16 × 100 Mbps PoE RJ45 ports, 2 × Gigabit combo ports
  • PoE ports comply with IEEE 802.3at/af standard
  • Network topology management, sending alerts, monitoring network status
  • 6 kV surge protection for PoE ports
  • AF/AT camera can reach up to 300 m in extended mode
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
18511 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • General information
  • Size 440.00 mm × 44.00 mm × 220.80 mm (17.32'' × 1.73'' × 8.69'')
  • Total weight 3.680 kg (8.11 lb)
  • Max. power consumption 250W
  • Net weight 2.59 kg (5.71 lb)
  • Operating humidity 5% to 95% (no condensation)
  • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Power source 100-240 VAC, 50/60 Hz, Max. 2.5 A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material, fan-free design
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Network settings
  • Transmission mode Store-and-forward switching
  • High priority ports Ports 1 to 8
  • Internal cache memory 4 Mbit
  • MAC address table 16 K
  • Packet transfer rate 5.3568 Mpps
  • Port type RJ45 port, full duplex, MDIMDI-X adaptive
  • Ports 16 × 10/100 Mbps PoE port, 2 × 1 Gbps combo
  • Standard IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
  • Switching capacity 7.2 Gbps
  • Working mode Standard mode (default), Extend mode
  • PoE
  • Max PoE ports power 30W
  • PoE port PoE: Ports 1 to 16
  • PoE power budget 230W
  • PoE power connector End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • Software features
  • Device maintenance Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.

Weight2.67 kg
