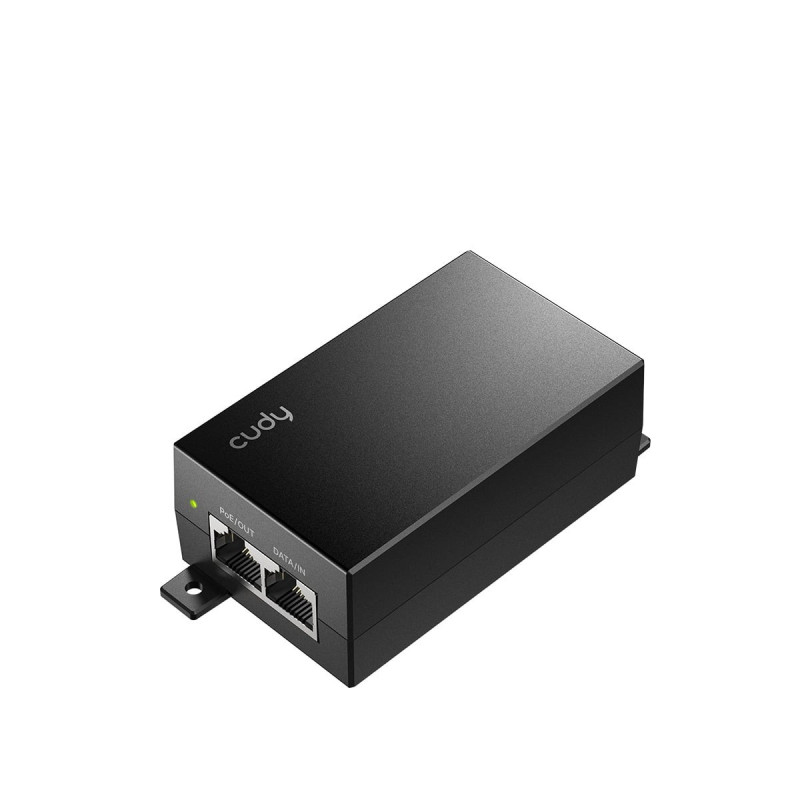

PoE adapter Cudy POE48-18W (48 V, 18 W, Gigabit)
Product reference: 26-CUDYPOE4818W
  • Type: PoE adapter (injector)
  • Brand: CUDY
  • Model: POE48-18W
  • Network interface: GbE input, GbE output, 1 × GbE (IEEE 802.3i/u/ab)
  • Communication protocol: 48V passive PoE, Mode B
  • Power: up to 18 W
  • Operating temperature: 0-40 °C
  • New
PoE adapteris Cudy POE48-18W (48 V, 18 W, Gigabit)

PoE adapter Cudy POE48-18W (48 V, 18 W, Gigabit)

Product reference: 26-CUDYPOE4818W
  • Type: PoE adapter (injector)
  • Brand: CUDY
  • Model: POE48-18W
  • Network interface: GbE input, GbE output, 1 × GbE (IEEE 802.3i/u/ab)
  • Communication protocol: 48V passive PoE, Mode B
  • Power: up to 18 W
  • Operating temperature: 0-40 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
11,12 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General information
  • Model version POE48-18W 1.0
  • 802.3 Protocols 802.3i 10 Mbps over Twisted Pair, 802.3u 100 Mbps over Twisted Pair, 802.3ab 1 Gbps over Twisted Pair
  • Uplink traffic 1× GbE
  • Downlink traffic 1× GbE, Passive PoE
  • Downlink Pin Assignment Mode B
  • Transmission distance Cat. 5e or higher cable: 100 meters at Gigabit (Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment)
  • LED Power
  • Power Interfaces AC Inlet
  • Feeding methods AC
  • Power input 100-240V~ 50/60Hz 0.5A
  • Maximum output power 18W, 48V⎓0.38A
  • Power Protection Surge Protection, ESD Protection, Overvoltage Protection, Short-Circuit Protection
  • EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5, Level 3 Surge: Power: DM 2kV, CM 2kV; RJ45: CM 4kV
  • Grounding Methods Three-Prong Plug
  • Security IEC/EN 62368
  • Environmental protection Ambient Operating Temperature: 0~40 (32~104 ), Storage Temperature: -40~70 (-40~158 ), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 10%~95% non-condensing
  • Certificates FCC, CE, CCC
  • Installation Desktop, Wall-mount
  • Dimensions Main Part: 80.1×48.9×31.9 mm (3.15×1.93×1.26 inches), Each Bracket: 9 mm (0.35 inches)
  • Housing material Plastic
  • Product weight 83.5 g (2.95 oz.)
  • Package contents POE48-18W, Power Cord, Mounting Kit, Installation Guide
  • Retail packaging dimensions 175×63×57 mm (6.89×2.48×2.24 inches)
  • Retail package weight EU: 245.2 g (8.65 oz.)
  • In a box of units 40
  • Net weight of the box EU: 9.8 kg (21.61 lbs)
  • Total weight of the box EU: 10.4 kg (22.93 lbs)
  • Box dimensions 37.8×31×28 cm (14.88×12.2×11.02 inches)
  • Compatible Products AP3000 1.0, LT700 Outdoor 1.0, AP3000 Outdoor 1.0, AP11000 1.0, AP3000_P 1.0, AP3600 1.0, AP6500 1.0, LT700 Outdoor 2.0, AP3600 Outdoor 1.0
