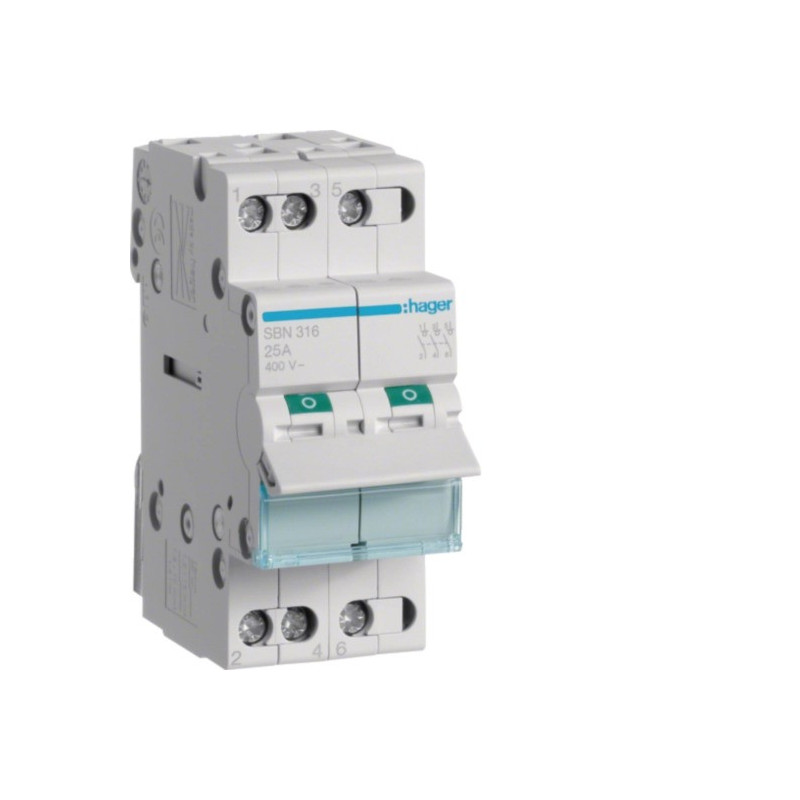

Pickaxe Hager SBN316 (3P, 16A, 400V, 2 mod.)

Product reference: 26-HSBN316

You have 3 products in compare list, please remove someone and try again

Add to compare

1966 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Not available

General information
Number of poles 3
Neutral position Without neutral
Pole type 3P
Rated current 16 A
Permissible current (AC21 category A) 16 A
Permissible current (AC21 category B) 16 A
Permissible current (AC22 category A) 16 A
Permissible current (AC22 category B) 16 A
Rated short-circuit making capacity Icm (415 V AC, IEC 60947-3) 0.33 kA
Rated short-time withstand current Icw (1s, IEC 60947) 0.24 kA
Rated conditional short-circuit current Inc (IEC/EN 60669-2-4) 3000 A / 80 A gG parallel 32 A gG
Nominal tightening torque 1.80 Nm
Bottom connection type (modular units) Screw terminal
Rated operating voltage Ue 400V AC
Rated insulation voltage Ui 440V
Rated impulse withstand voltage Uimp 4,000V
Number of modules 2
IP protection class IP20
Frequency 50-60Hz
Height 83 mm
Width 35mm
Depth 68 mm
Number of NO contacts 3
Number of NC contacts 0
Operating temperature -20 to +70 °C
Storage/transport temperature -40 to +80 °C
Cross-section of a flexible conductor 1.5-10 mm²
Cross-section of a solid conductor 1.5-16 mm²
Mechanical durability 200,000 operations
Electrical durability (AC21, at rated load) 25,000 cycles
Electrical durability (AC22, at rated load) 25,000 cycles
Total power loss at In 1.20W
Power loss per pole at In 0.40 W
Bottom connection arrangement (modular units) Shifted terminal
Top connection arrangement (modular units) Shifted terminal
