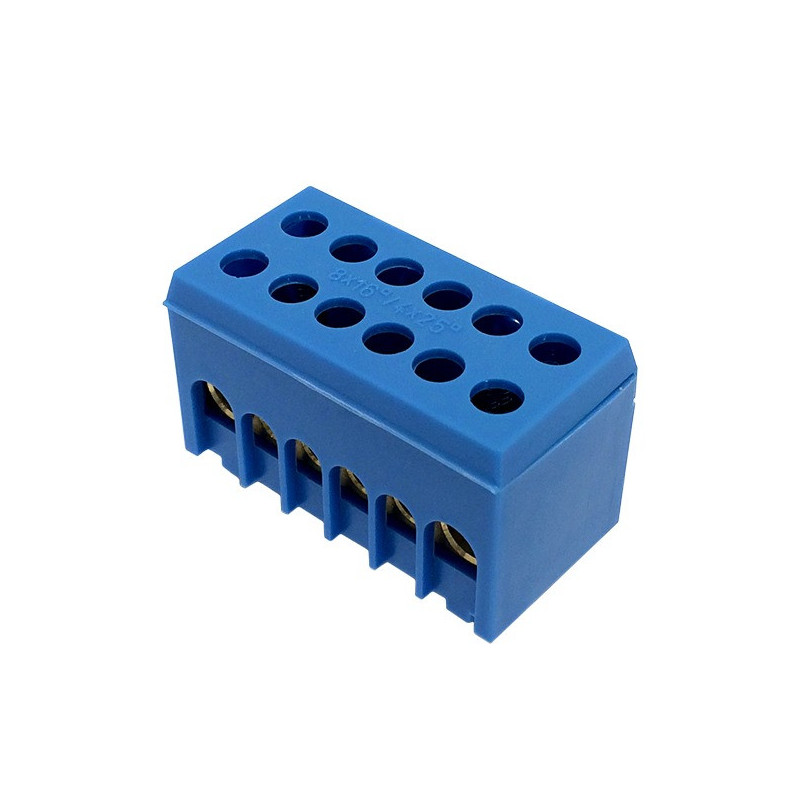

Phase terminal 2p A6H-2 Morek MAD2006N15 (blue, 6x16 mm2, Cu)
Product reference:
26-MAD2006N15
- Rated voltage: 500V
- Rated current: 63A
- Number of poles: 6
- IP20
- 6x16 mm2
Phase terminal 2p A6H-2 Morek MAD2006N15 (blue, 6x16 mm2, Cu)
Product reference:
26-MAD2006N15
- Rated voltage: 500V
- Rated current: 63A
- Number of poles: 6
- IP20
- 6x16 mm2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Home
- Color Blue
- Cable material Copper
- Min. cross-section (mm²) 2.5
- Max. cross-section (mm²) 25
- Min. input wire cross-section (mm²) 1.5
- Max. input wire cross-section (mm²) 25
- Min. output wire cross-section (mm²) 1.5
- Max. output wire cross-section (mm²) 25
- Number of connectors 12
- Rated current (A) 63
- Rated voltage (V) 500
- Short-time short-circuit withstand capacity (kA/1s) 4.2 kA/1 s
- Max. short-time short-circuit current Icw=4.2 kA/1 s
- Rated surge voltage (kV) 8
- Operating temperature (°C) 85
- Material Brass, polyamide PA6
- Installation method DIN rail
- Product width (mm) 27
- Product length (mm) 53
- Product height (mm) 38
- Product weight (g) 88
- Torque (Nm) 2.5 Nm
- IP class IP20
- Certificates EN 60998-1, EN 60998-2-1
- Fire resistance UL94 V2
- CN8 code 85369010
| Manufacturer code | MAD2006N15 |
| Manufacturer | Morek |
| Weight | 0 kg |
