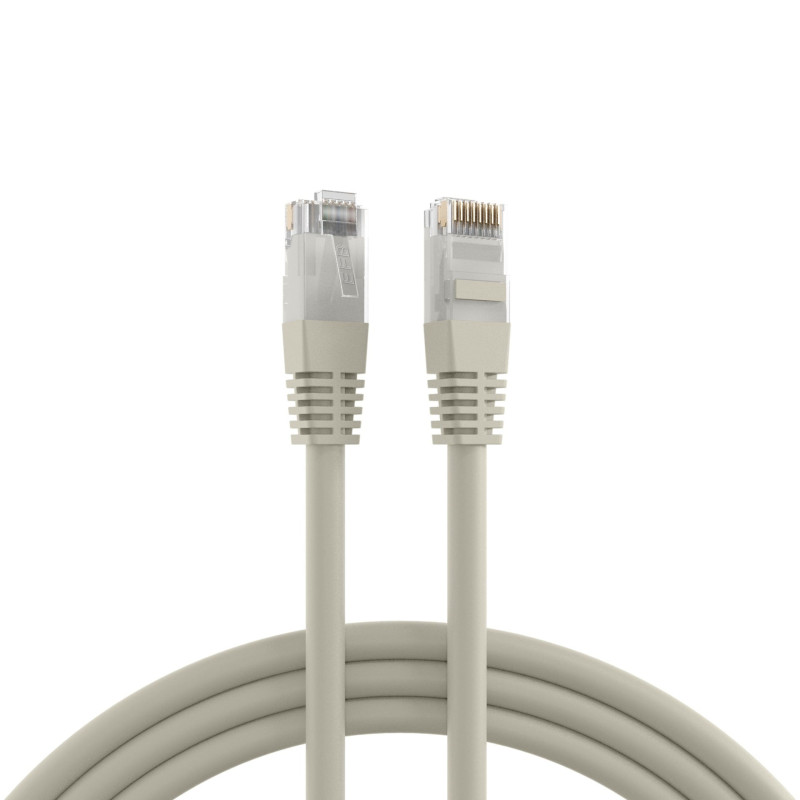

Patch cable U / UTP Cat.5e EFB K8456.7,5 (7.5 m, PVC, CCA, gray)

Product reference: 26-KRPATK845675

You have 3 products in compare list, please remove someone and try again

Add to compare

829 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Not available

Technical specifications
AWG size 24/7
Allocation according to TIA/EIA 568B
Anti-kink sleeve shaped
Area of application Industrial Ethernet, Structured Cabling, Data Center
Bending radius > 27mm
Cable construction 4x2
Cable shape round
Cable Type U/UTP
Cabling standard EN50173, ISO/IEC 11801, ANSI/TIA-568
Category 5e
Colour anti-kink sleeve gray
Color outer sheath gray
Conductive shield No
Conductor Material CCC
Connector IEC 60603-7-2
Connector Type RJ45 standard
Contact Resistance < 20 mΩ
Contacts Gold plated
Current capacity max. 1 A
Fire retardant version according to IEC60332-1
Halogen-free Not true
Harmonized Standard EN 50575
Impedance 100
Insulation material Polyvinyl chloride (PVC)
Length imprint Truth
Locking lever Not true
Mating cycles ≥750
Model without screen
Oil-resistant no
Operating/tempering voltage max. 50 V DC
Operating Temperature 0 - 60 °C
Outer diameter of the Cable 5.4 mm
Ozone resistance No
Pin assignment 1:1
Printing U/UTP CAT.5E 100MHZ 24AWG×4P PATCH ISO/IEC 11801 EN 50173 APPROVED ***2.5 GIGABIT*** www.efb-elektronik.de
Chemical resistant Not true
Silicone-free Truth
Suitable for degree of protection (IP) IP20
Tape width 100MHz
Test voltage 1000 (V DC, 1min) core/core and core/screen
Transmission 2.5Gbit
Type of connector connection 1 RJ45 8(8)
Type of connector connection 2 RJ45 8(8)
UL approved Not true
UV resistant no

Weight

0.232 kg
