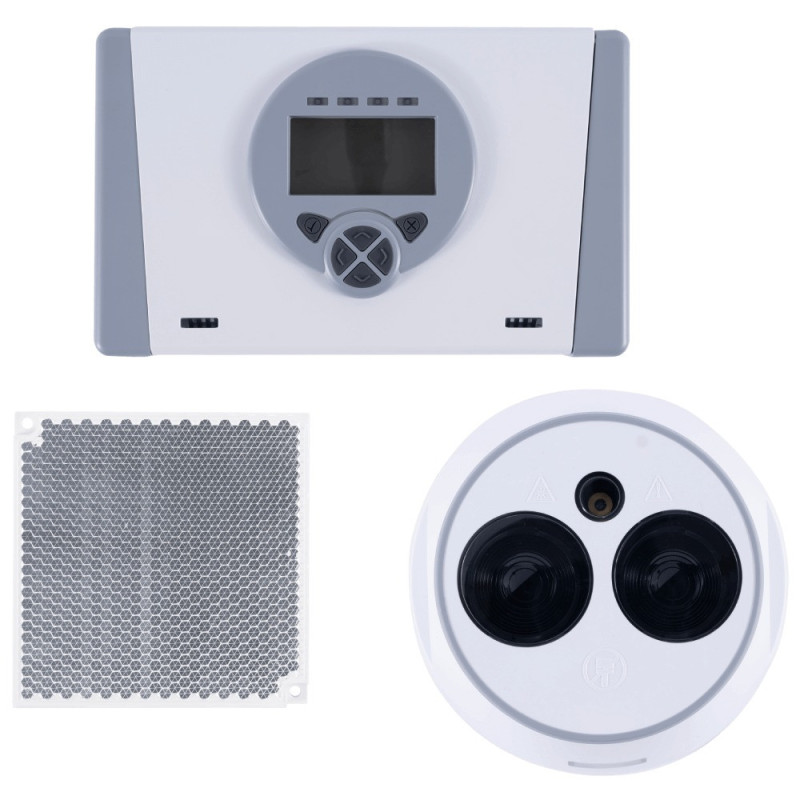

Optical smoke barrier Fireray HUB (8-120m, autocalibration)
Product reference:
26-BDFHUB
- Type: Optical linear smoke detector (barrier)
- Model: FireRay HUB
- Detection type: Optical beam smoke detector
- Detection distance: 8-120 m
- Kit: Controller, transmitter/receiver, reflector (up to 50 m)
- Detector support: Up to 3 detectors per HUB controller
- Installation: Serial connection of detectors possible
- Autocalibration: Automatic system adjustment
- Laser sight: Integrated for reflector mounting
- Compensation: Compensation for building movement and reflections
Optical smoke barrier Fireray HUB (8-120m, autocalibration)
Product reference:
26-BDFHUB
- Type: Optical linear smoke detector (barrier)
- Model: FireRay HUB
- Detection type: Optical beam smoke detector
- Detection distance: 8-120 m
- Kit: Controller, transmitter/receiver, reflector (up to 50 m)
- Detector support: Up to 3 detectors per HUB controller
- Installation: Serial connection of detectors possible
- Autocalibration: Automatic system adjustment
- Laser sight: Integrated for reflector mounting
- Compensation: Compensation for building movement and reflections
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- General information
- Product name Fireray Hub Reflective beam smoke detection system
- System models [EN] 6020-100, [UL] 6020-300, [SAI] 6020-500
- Detector models [EN] 6030-100, [UL] 6030-300, [SAI] 6030-500
- Detection range (single reflector) 8-50 m
- Detection range (four reflectors) 50-120 m
- Maximum number of detectors per controller Up to 3 Fireray Reflective detectors per system controller
- Alignment method Laser-assisted motorized Auto-Alignment from the system controller; optional manual alignment
- Building movement tracking Automatically compensates for natural building movement affecting alignment
- Pollution compensation Compensates for gradual contamination build-up on optical surfaces
- Light attenuation technology Reduces interference from sunlight and artificial lighting
- Optical wavelength (smoke detection) 850 nm near infrared (invisible)
- Integrated alignment laser 650 nm visible laser, Class 3R <5 mW
- Dynamic beam phasing Detectors can be mounted facing each other with reflectors in the middle
- Signal outputs Individual alarm and fault relays (VFCO), max. 1 A at 36 VDC per detector
- Operating voltage 14-36 V DC to the system controller
- Operating current (1 detector) 12.5 mA
- Operating current (2 detectors) 15 mA
- Operating current (3 detectors) 17.5 mA
- Fast equalization mode current 33 mA during alignment or when the LCD backlight is active
- Maximum cable length Up to 100 m between system controller and furthest detector in network mode
- Cable type 2-core cable, 24-14 AWG (0.5-1.6 mm), compatible with fireproof or non-fireproof cable according to local standards
- Beam path freedom 0.5 m radius from center line between detector and reflector
- Controller dimensions 170 × 274 × 73mm
- Detector dimensions 131 × 134 × 131mm
- Reflector dimensions (single) 100 × 100 × 9 mm for up to 50 m distance
- Reflector dimensions (four reflectors) 200 × 200 × 9 mm for up to 120 m distance
- System controller weight 1.05 kg
- Detector weight 0.57 kg
- Reflector weight 0.06 kg
- Operating temperature −10 °C to +55 °C
- Storage temperature −40 °C to +85 °C
- Operating humidity 0-93% RH non-condensing
- IP protection class Controller IP65, detector IP55
- Housing material UL94 V0 polycarbonate
- Body color White RAL9016 or gray RAL7001, UV-stable
- Fault detection level Signal drop > 85% within <2 seconds
- Maximum angular alignment (detector) ±4.5° (±70° with adjustment bracket accessory)
- Maximum angular misalignment (detector) ±0.5°
- Maximum angular misalignment (reflector) ±5°
- Certificates EN 54-12, AS 7240.12, UL268
| Weight | 1.692 kg |
