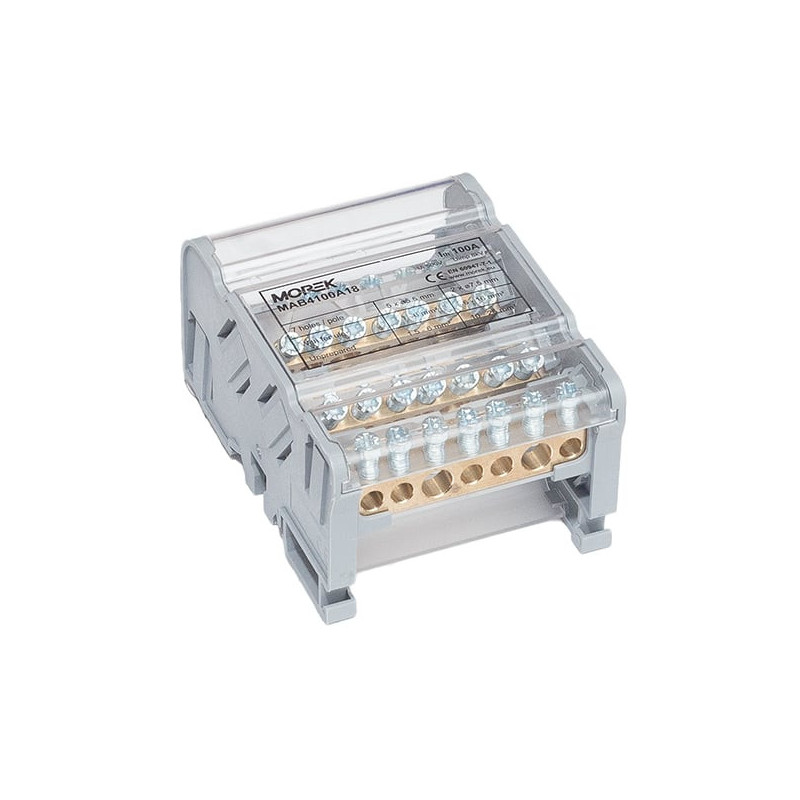

MAB100A-7 distribution terminal 4P 2x25 + 5x6mm² Ipk 20 kA
Product reference:
26-MAB4100A18
- Rated voltage: 500V
- Rated current: 100
- 3x1.5-50mm²
- Ipk=20kA
MAB100A-7 distribution terminal 4P 2x25 + 5x6mm² Ipk 20 kA
Product reference:
26-MAB4100A18
- Rated voltage: 500V
- Rated current: 100
- 3x1.5-50mm²
- Ipk=20kA
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Home
- Color Gray
- Cable type Cu
- Cross section min. (mm²) 1.5
- Cross section max. (mm²) 25
- Input wire min. (mm²) 2x10
- Input wire max. (mm²) 2x25
- Output wire min. (mm²) 5x1.5
- Output wire max. (mm²) 5x6
- Number of connectors 7
- Rated current (A) 100
- Rated voltage (V) 500
- Short circuit withstand (kA/1s) 3
- Rated surge voltage (kV) 8
- Material Brass, galvanized steel, polyamide PA66
- Installation method DIN rail, screw
- Product width (mm) 97
- Product length (mm) 71
- Product height (mm) 52
- Product weight (g) 190
- Tightening torque (Nm) 2.5 Nm
- Certification EN 60947-1; EN 60947-7-4
- Flame resistance UL94 V0
- CN8 code 85369001
| Manufacturer code | MAB4100A18 |
| Manufacturer | Morek |
| Weight | 0.21 kg |
