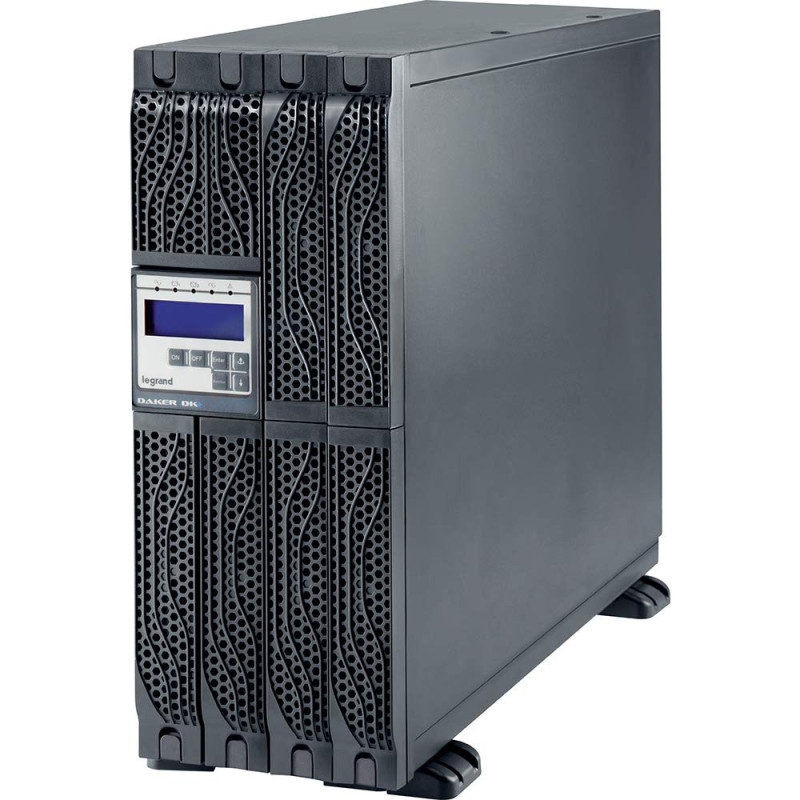

LEGRAND UPS DAKER DK PLUS 310174 (Rack / Tower, LCD, 6000VA / 6000W)
Product reference:
26-3414970826961
- Type: UPS
- Model: DAKER DK+
- Manufacturer code: 310174
- Power: 6000VA / 6000W
- Design: Rack/Tower
- Display: LCD
- Connectors: 8×C13, 2×C19, RS232, USB B, 2×RJ45, SNMP, PDU terminal connection
- LAN card compatibility: Yes
- UPS type: Online
- Sine wave: Pure sine
- EPO function: Emergency Power Off
- Bypass function: Yes
- Dimensions: 440×176 (4U)×680 mm (W×H×D)
- Batteries: 20×12V/5Ah
- Housing: Metal
- External battery pack connection: Possible
LEGRAND UPS DAKER DK PLUS 310174 (Rack / Tower, LCD, 6000VA / 6000W)
Product reference:
26-3414970826961
- Type: UPS
- Model: DAKER DK+
- Manufacturer code: 310174
- Power: 6000VA / 6000W
- Design: Rack/Tower
- Display: LCD
- Connectors: 8×C13, 2×C19, RS232, USB B, 2×RJ45, SNMP, PDU terminal connection
- LAN card compatibility: Yes
- UPS type: Online
- Sine wave: Pure sine
- EPO function: Emergency Power Off
- Bypass function: Yes
- Dimensions: 440×176 (4U)×680 mm (W×H×D)
- Batteries: 20×12V/5Ah
- Housing: Metal
- External battery pack connection: Possible
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- General data
- Nominal power (VA) 6000
- Active power (W) 6000
- Technology On-Line Double Conversion VFI-SS-111
- Waveform Sinusoidal
- UPS architecture Convertible tower and rack 19"
- Surge Rating 1900
- ECO Mode efficiency 98%
- Input voltage 230V
- Input frequency 50-60 Hz ±5% Autosensing
- Input voltage range 170V - 288V at full load
- THD Input current < 3%
- Input power factor > 0.99
- Output voltage 230V ± 1%
- Output frequency (nominal) 50/60 Hz (settable from LCD panel) ± 0.1%
- Crest Factor 1:3
- THD Output voltage Linear load 2%, Nonlinear load 5%
- Output Voltage Tolerance ±1%
- Uptime Expansion No
- Number of batteries 20
- Battery series Type/Voltage 12V 5Ah
- Uptime with 80% load (min) 4
- Display and Signals Four buttons and four LEDs to monitor UPS status in real time
- Communication ports RS232 serial ports, USB
- Remote Management Available
- Network interface slot SNMP
- Measurements H x W x D (mm) 440 x 176 (4U) x 680
- Battery Cabinet Measurements H x L x D (mm) 440 x 132 (3U) x 680
- Weight (kg) 60
- Operating temperature (°C) 0 ÷ 40 °C
- Degree of protection IP20
- Relative humidity (%) 0-95% non-condensing
- Noise level at 1 m (dBA) < 50
- Heat Loss (BTU/h) 1300
- Certificates EN 62040-1, EN 62040-2, EN 62040-3
| Manufacturer code | L310174 |
| Manufacturer | Legrand |
| Weight | 60 kg |
