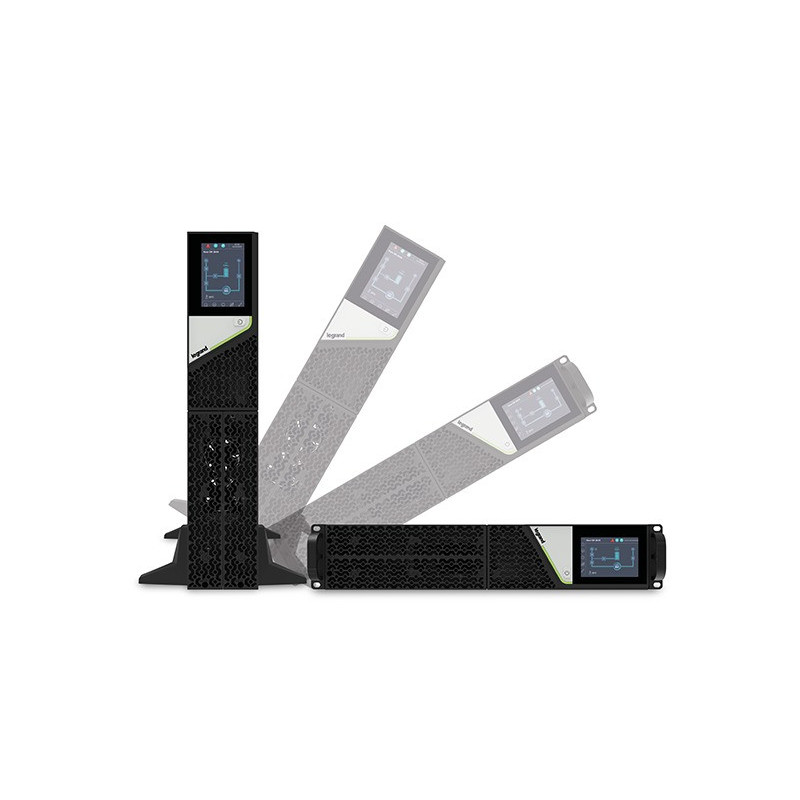

Legrand 311341 UPS (Rack / Tower, 2000VA / 2000W)
Product reference: 26-L311341
  • Type: UPS
  • Model: Keor DK 2 kVA
  • Manufacturer code: 311341
  • Power: 2000VA / 2000W
  • Design: Rack/Tower
  • Display: LCD
  • Connections: 6×C13, 1×C19, RS232, USB B, EPO, Dry contacts
  • LAN card compatibility: Yes
  • UPS type: Online
  • Pure sine
  • EPO: Emergency power off
  • Dimensions: 440x88x640 mm (W×H×D)
  • Batteries: 6×12V/7Ah
  • Can connect an external battery pack
Legrand 311341 UPS (Rack / Tower, 2000VA / 2000W)

Legrand 311341 UPS (Rack / Tower, 2000VA / 2000W)

Product reference: 26-L311341
  • Type: UPS
  • Model: Keor DK 2 kVA
  • Manufacturer code: 311341
  • Power: 2000VA / 2000W
  • Design: Rack/Tower
  • Display: LCD
  • Connections: 6×C13, 1×C19, RS232, USB B, EPO, Dry contacts
  • LAN card compatibility: Yes
  • UPS type: Online
  • Pure sine
  • EPO: Emergency power off
  • Dimensions: 440x88x640 mm (W×H×D)
  • Batteries: 6×12V/7Ah
  • Can connect an external battery pack
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
86934 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Rated power 2000 VA
  • Active power 2000W
  • UPS technology On-Line Double Conversion (VFI-SS-11)
  • Waveform Sinusoidal
  • UPS architecture Convertible tower and rack 19"
  • Efficiency (AC-AC) 92.5%
  • ECO mode efficiency 98.3%
  • Input voltage 230V
  • Input frequency 50 / 60 Hz
  • Input voltage range 176-280 V (100% load), 160-280 V (75% load), 110-280 V (50% load)
  • Input current THD <5%
  • Input power factor ≥0.99 at full linear load
  • Input plug Type E/F Standard or British Standard
  • Output voltage 230 V adjustable to 200 / 208 / 220 / 230 / 240 V
  • Output frequency 50 / 60 Hz
  • Peak coefficient 3:1
  • Output voltage THD <3% at 100% linear load, <5% at 0.9 non-linear load
  • Output voltage tolerance ±1%
  • Bypass Static bypass switch
  • Outlets IEC320 C13 × 6, IEC320 C19 × 1 (programmable outlet)
  • Extension of operating time Yes
  • Internal batteries 6
  • Battery type 12V 7.2Ah
  • Charging time 4 hours to 90%
  • Battery charging current 2A or 8A
  • Battery disconnector Yes
  • Battery replacement Hot swappable with safety touch design
  • Screen 3.5" true-color touch panel with LED status bar
  • Communication ports RS232, USB, 3 dry-contact, EPO, ROO
  • Remote control Available
  • Network interface SNMP slot
  • Dimensions 440 × 88 × 640mm
  • Battery cabinet dimensions 440 × 88 × 583mm
  • Net weight 24 kg or 13 kg (depending on model)
  • Operating temperature 0 °C to +40 °C
  • Protection class IP20
  • Relative humidity 0-95% non-condensing
  • Noise level 41-50 dB at 1 m
  • Heat loss 590 BTU/h
  • Maximum height 0-2000 years
  • Standards EN 62040-1, EN 62040-2, EN 62040-3
  • Compliance CE, RoHS, REACH, WEEE

Weight22 kg
