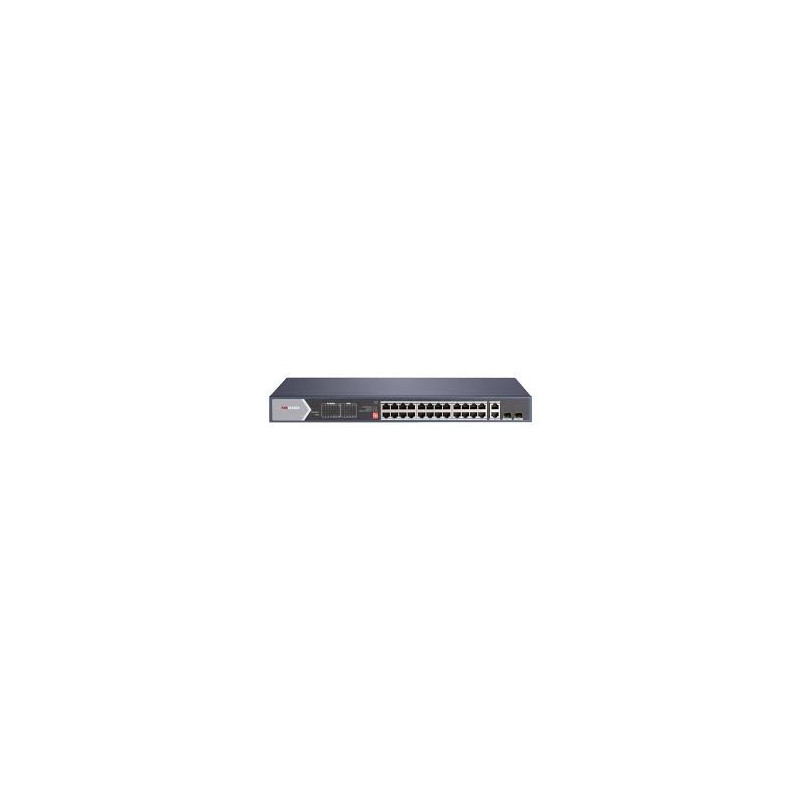

Hikvision 28-port 24 PoE port switch DS-3E0528HP-E,
Product reference:
26-6941264031635
- 20 × gigabit PoE ports
- 4 × gigabit Hi-PoE ports.
- 2 × gigabit RJ45 ports.
- 2 × gigabit fiber optic ports.
- 6 KV discharge protection
- Up to 300 m range.
- PoE capacity: 370 W
- Mac Address Table: 8k
Hikvision 28-port 24 PoE port switch DS-3E0528HP-E,
Product reference:
26-6941264031635
- 20 × gigabit PoE ports
- 4 × gigabit Hi-PoE ports.
- 2 × gigabit RJ45 ports.
- 2 × gigabit fiber optic ports.
- 6 KV discharge protection
- Up to 300 m range.
- PoE capacity: 370 W
- Mac Address Table: 8k
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- PoE power source
- PoE standard
Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 5 to 24: IEEE 802.3af, IEEE 802.3at
- PoE power connector
Ports 5 to 20: Ethernet cables 1/2/3/6 provide power supply.
Ports 1 to 4 and 21 to 24: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE ports Ports 1 to 24
- Max. port power
Ports 1 to 4: 90 W
Ports 5 to 24: 30 W
- Hi-PoE ports Ports 1 to 4
- PoE capability 370W
- Network settings
- Number of ports 20 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports
- Port types RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
- Transmission mode Store-and-forward switching
- Working mode Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
- Ports for long-distance transmission Ports 21 to 24
- MAC address table 8 K
- Switch capacity 56 Gbps
- Packet transfer speed 41.664 Mpps
- Internal container 4.1 Mbits
- Connection function
- Long-distance connection Ports 21 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.
- Port isolation Ports 1 to 24: port isolation mode to improve network security.
- PoE maintenance Ports 1 to 24: auto detect and restart the cameras that do not respond.
- Home
- Housing Metal material
- Net weight 2.98 kg (6.57 lb)
- Dimensions (W × H × D) 440 mm × 220.8 mm × 44 mm (17.32" × 8.69" × 1.73")
- Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
- Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
- Moisture resistance during operation 5% to 95% (no condensation)
- Moisture resistance during storage 5% to 95% (no condensation)
- Energy source 100 to 240 VAC, 50/60Hz, Max. 6.5 A
- Power consumption in idle state < 30W
- Energy source 400W
- Max. power consumption 400W
- Approval
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
| Manufacturer code | SWITCHDS3E0528HPE |
| Manufacturer | Hikvision |
| Weight | 3.168 kg |
