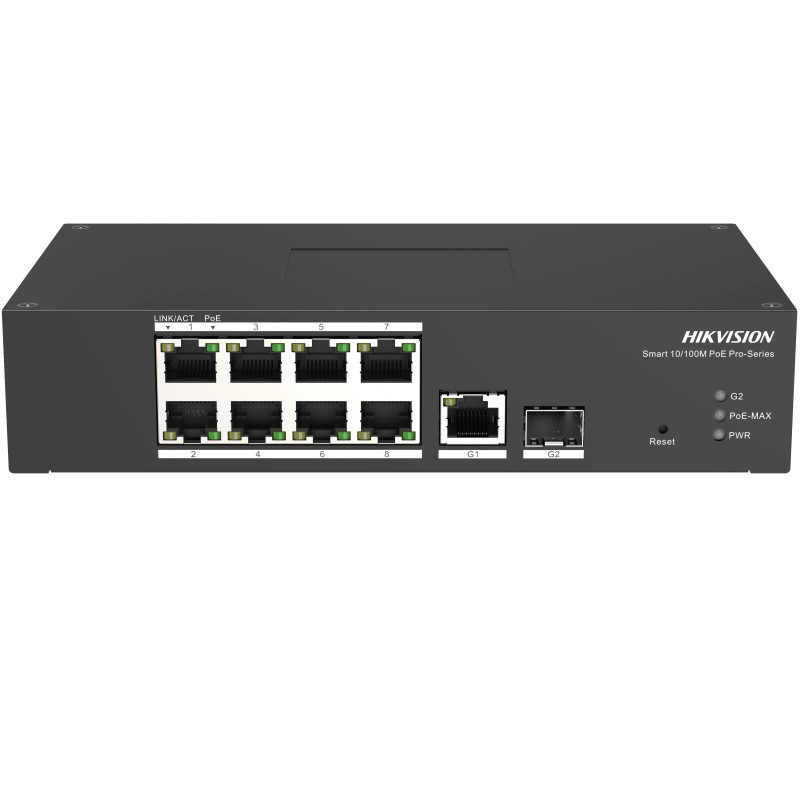

Hikvision 10-port 8 PoE port switch DS-3T1310P-SI/HS
Product reference:
26-6931847175481
- 10 ports
- 8 × 10/100 Mbps PoE LAN ports, 2 × 1000 Mbps SFP port, 1 × 1000 Mbps LAN port
- PoE ports: 8
- Maximum power: 110W
- Total bandwidth: 9.2 Gbps
- Packet transmission rate: 6.84 Mpps
- MAC address table: 16K
- Current: 2.5 A
- Mounting: Desktop; Din rail
- Operating temperature range: -30°C ~ 65°C
- IP40
Hikvision 10-port 8 PoE port switch DS-3T1310P-SI/HS
Product reference:
26-6931847175481
- 10 ports
- 8 × 10/100 Mbps PoE LAN ports, 2 × 1000 Mbps SFP port, 1 × 1000 Mbps LAN port
- PoE ports: 8
- Maximum power: 110W
- Total bandwidth: 9.2 Gbps
- Packet transmission rate: 6.84 Mpps
- MAC address table: 16K
- Current: 2.5 A
- Mounting: Desktop; Din rail
- Operating temperature range: -30°C ~ 65°C
- IP40
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Patvirtinimai
- Cheminių komponentų sertifikavimas CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
- Saugumas UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Pagrindinis
- Dydis 197.00 mm × 114.20 mm × 42.20 mm (7.70'' × 4.40'' × 1.60'')
- Svoris su įpakavimu 1.2 kg (2.6 lb)
- Maks. energijos sunaudojimas 120 W
- Svoris be įpakavimo 0.6 kg (1.3 lb)
- Darbo sąlygosdrėgmė 5% to 95% (no condensation)
- Darbinė temperatūra -30 °C to 65 °C (-22 °F to 149 °F)
- Energijos sunaudojimas miego režime < 5 W
- Maitinimas Power adapter: 48 VDC (working temperature: 0°C to 45°C); Grounding terminal: 48-57 VDC (working temperature: -30°C to 65°C)
- Santykinė drėgmė 5% to 95% (no condensation)
- Rėmas Metal material
- Sandėliavimo sąlygos temperatūra -40 °C to 85 °C (-40 °F to 185 °F)
- Tinklo parametrai
- Perdavimo režimas Store-and-forward switching
- Vidinė cache atmintis 4 Mbits
- MAC adresų lentelė 16 K
- Paketų persiuntimo greitis 4.16 Mpps
- Prievadų tipas RJ45 port,full duplex,MDIMDI-X adaptive
- Prievadai 1 × 1 Gigabit fiber optical port,8 × 10/100 Mbps PoE port,1 × 1 Gigabit RJ45 port
- Standartas IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z,IEEE 802.3x
- Perjungimo talpa 5.6 Gbps
- Darbo režimas Standard mode (default)
- PoE
- Maks. PoE prievadų galia 30 W
- PoE prievadas PoE: Ports 1 to 8
- PoE disponuojama galia 110 W
- PoE galios jungtis End-span: 1/2(-), 3/6(+)Mid-span: 4/5(+), 7/8(-)8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE standartas IEEE 802.3af,IEEE 802.3at
- Programinės įrangos funkcijos
- DHCP Supported
- Prietaiso priežiūra Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
- ERPS Supported
- LLDP LLDP supported for port configuration, global configuration, and neighbour discovery
- Ilgo diapazono režimas Ports 1 to 8: up to 300 m
- PoE konfigūracija PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.PoE enabling: supported
- Prievado konfigūracija Support port rate configuration, flow control, and ports enabling.
- Prievado izoliacija Ports in an isolation group cannot communicate with each other.
- Prievado atvaizdavimas Supported
- Paslaugų kokybė (QoS) WRR and SP scheduling and port priority
- SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
- STP STP and RSTP
- VLAN 4094 VLANs
| Gamintojo kodas | SWITCHDS3T1310PSIHS |
| Gamintojas | Hikvision |
| Svoris | 1.148 kg |
