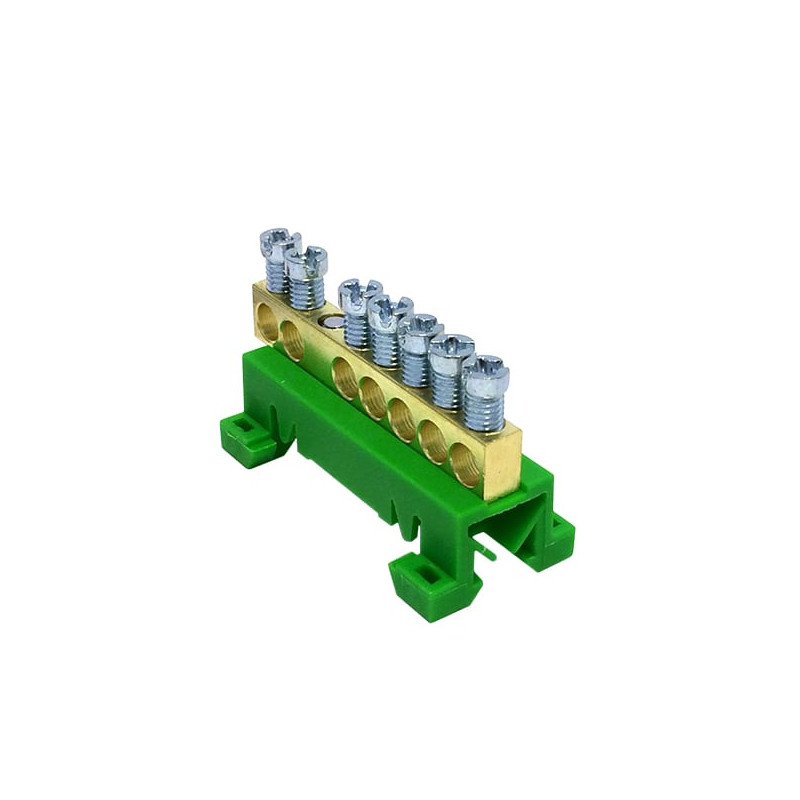

Grounding terminal PE7 7x16 mm2 Morek MAD0007G15 (green)
Product reference:
26-MAD0007G15
- Rated voltage: 690V
- Rated current: 63A
- Number of poles: 7
- IP00
- 7x16 mm2
Grounding terminal PE7 7x16 mm2 Morek MAD0007G15 (green)
Product reference:
26-MAD0007G15
- Rated voltage: 690V
- Rated current: 63A
- Number of poles: 7
- IP00
- 7x16 mm2
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
Not available
- Home
- Color Green
- Cable type Cu
- Cross section min. (mm²) 1.5
- Cross section max. (mm²) 16
- Input wire min. (mm²) 1.5
- Input wire max. (mm²) 16
- Output wire min. (mm²) 1.5
- Output wire max. (mm²) 16
- Number of connectors 7
- Rated current (A) 63
- Rated voltage (V) 690
- Material Brass, polyamide PA6
- Installation method DIN rail
- Product width (mm) 23
- Product length (mm) 54
- Product height (mm) 30
- Product weight (g) 26
- Tightening torque (Nm) 2.5 Nm
- IP rating IP00
- CN8 code 85369001
| Manufacturer code | MAD0007G15 |
| Manufacturer | Morek |
| Weight | 0.026 kg |
