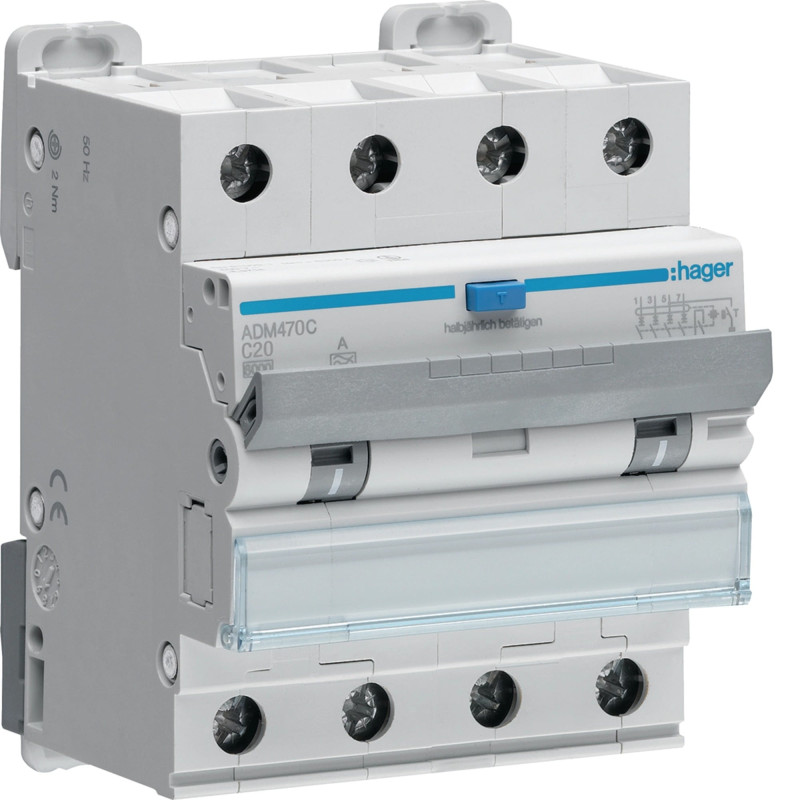

Differential circuit breaker Hager ADM470C (4P, 20A, A, 30mA, 6kA)
Product reference: 26-3250611020318
  • Type: Residual current relay with circuit breaker
  • Brand: Hager
  • Model: ADM470C
  • Poles: 4P
  • Current: 20 A
  • Leakage current: 30 mA
  • Type: C
  • Breaking capacity: 6 kA
  • New
Diferencinis automatinis jungiklis Hager ADM470C (4P, 20A, A, 30mA, 6kA)

Differential circuit breaker Hager ADM470C (4P, 20A, A, 30mA, 6kA)

Product reference: 26-3250611020318
  • Type: Residual current relay with circuit breaker
  • Brand: Hager
  • Model: ADM470C
  • Poles: 4P
  • Current: 20 A
  • Leakage current: 30 mA
  • Type: C
  • Breaking capacity: 6 kA
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
159,81 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Architecture
  • Pile type 4P
  • Number of protected poles 4
  • Curve C
  • Security
  • Residual current type A
  • IP protection class IP2X
  • Main electrical attributes
  • Rated short-circuit breaking capacity Icn AC according to IEC 60898-1 6kA
  • Voltage
  • Rated insulation voltage Ui 500V
  • Rated impulse withstand voltage Uimp 4,000V
  • Rated operating voltage Ue 230 - 400V
  • Overvoltage category according to IEC 60947-1 3
  • Type voltage supply AC
  • Dielectric strength value of power frequency 2 kV
  • Electric current
  • Rated current 20 A
  • Rated residual operating current Idn 30 mA
  • Rated current -25°C 23.80 A
  • Rated current at -20°C 23.50 A
  • Rated current -15°C 23.20 A
  • Rated current -10°C 22.90 A
  • Rated current -5°C 22.50 A
  • Rated current at 0°C 22.20 A
  • Rated current 5°C 21.80 A
  • Rated current 10°C 21.50 A
  • Rated current 15°C 21.10 A
  • Rated current at 20°C 20.80 A
  • Rated current 25°C 20.40 A
  • Rated current 30°C 20 A
  • Rated current 35°C 19.60 A
  • Rated current at 40°C 19.10 A
  • Rated current at 45°C 18.60 A
  • Rated current at 50°C 18.20 A
  • Rated current 55°C 17.70 A
  • Rated current 60°C 17.20 A
  • Correction factor of rating current for 2 devices placed side by side 0.80
  • min./max. threshold value of the AC thermal operation 1.13 - 1.45 A
  • Rated service breaking capacity Ics AC according to IEC 60898-1 6kA
  • Power supply
  • Total power losses at IN 11.70 W
  • Frequency
  • Frequency 50 - 50Hz
  • Installation, mounting
  • Nominal tightening torque down terminal 2 - 2 Nm
  • Nominal tightening torque top terminal 2 - 2 Nm
  • Type of bottom connection for modular devices biconnect
  • Terms of Use
  • Maximum height 2,000 m
  • Class of energy limitation I²t 3
  • Operating temperature -25 - 40 °C
  • Storage/transport temperature -55 - 70 °C
  • Degree of pollution according to IEC 60664 / IEC 60947-2 2
  • Durability
  • Electric endurance in number of cycles 2,000
  • Number of mechanical operations 4,000
  • Connection
  • Cross-section of input with screws, for flexible conductors 1 - 16 mm²
  • Cross-section of input with screws, for massive conductors 1 - 25 mm²
  • Cross-section of input and output with screws, for flexible conductors 1 - 16 mm²
  • Cross-section of input and output with screws, for massive conductors 1 - 25 mm²
  • Capacity
  • Number of modules 4
  • Dimensions
  • Height 84 mm
  • Width 71 mm
  • Depth 70 mm

Manufacturer codeHADM470C
ManufacturerHager
Weight0 kg
