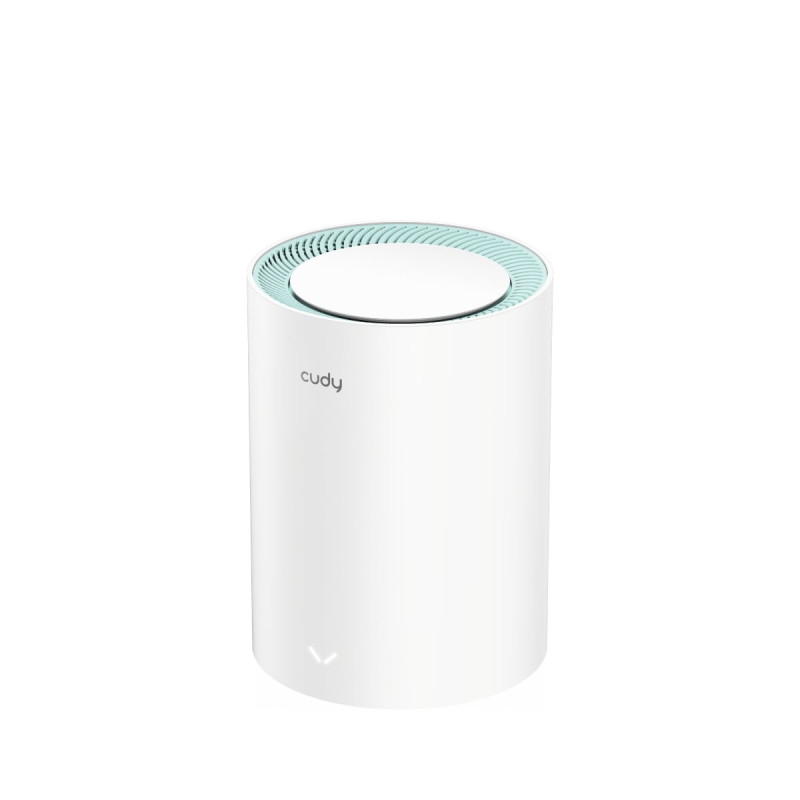

Cudy M1300 Mesh Wi-Fi System
Product reference: 26-6971690792800
  • Type: Wi-Fi Mesh system
  • Model: CUDY M1300 1.0
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Ports: 2 x 1 Gbps RJ45 (1 x WAN; 1 x LAN)
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended number of connected devices: 50 (max 128)
  • MIMO technology: 2x2 MU-MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 170 m
  • Flash memory: 16MB NOR
  • DDR Memory (RAM): 128MB DDR3
  • Power supply: 12V 1A DC
Cudy M1300 Mesh Wi-Fi System

Cudy M1300 Mesh Wi-Fi System

Product reference: 26-6971690792800
  • Type: Wi-Fi Mesh system
  • Model: CUDY M1300 1.0
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Ports: 2 x 1 Gbps RJ45 (1 x WAN; 1 x LAN)
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended number of connected devices: 50 (max 128)
  • MIMO technology: 2x2 MU-MIMO
  • Security protocols: WPA/WPA2/WPA3
  • Operating modes: Router, AP, Extender, WISP, Client
  • Cudy Mesh: Yes
  • Wi-Fi distance: up to 170 m
  • Flash memory: 16MB NOR
  • DDR Memory (RAM): 128MB DDR3
  • Power supply: 12V 1A DC
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3435 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General
  • Model version M1300 1.0
  • CPU 880 MHz Dual-Core, MIPS1004Kc
  • Flash/ROM 16 MB (128 Mbit) NOR
  • DDR/RAM 128MB (1Gbit) DDR3
  • 5GHz Wi-Fi speed 867Mbps
  • 2.4 GHz Wi-Fi speed 300Mbps
  • 5 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 4× Internal
  • FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
  • Beamforming True
  • Operating range Max: 170 m (558 ft) in open-space environments
  • Wall permeability Two wooden walls < 10 cm, One concrete wall < 20 cm
  • Indoor Coverage Reference 2 Pack: 160 m² (1700 sq ft), 3 Pack: 220 m² (2400 sq ft)
  • Gigabit RJ45 Ports 2
  • Ethernet notes Port 1 is WAN by default; all ports become LAN in Mesh satellite mode
  • LED indicators System, Speed/Link/Activity for Ethernet Port
  • Physical buttons WPS Button, Reset Button
  • Power input DC Jack
  • Feeding methods DC
  • DC input 12V 1A
  • Power adapter Input: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 1A DC
  • Operating temperature 0 ~ 40 (32 ~104)
  • Storage temperature -40 ~ 70 (-40 ~ 158 )
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 95% non-condensing
  • Certificates FCC, CE
  • Installation Desktop
  • Dimensions Φ110 × 154.5 mm (Φ4.33 × 6.08 inches)
  • Package contents M1300, Power Adapter, Ethernet Cable, Installation Guide

Weight0.386 kg
