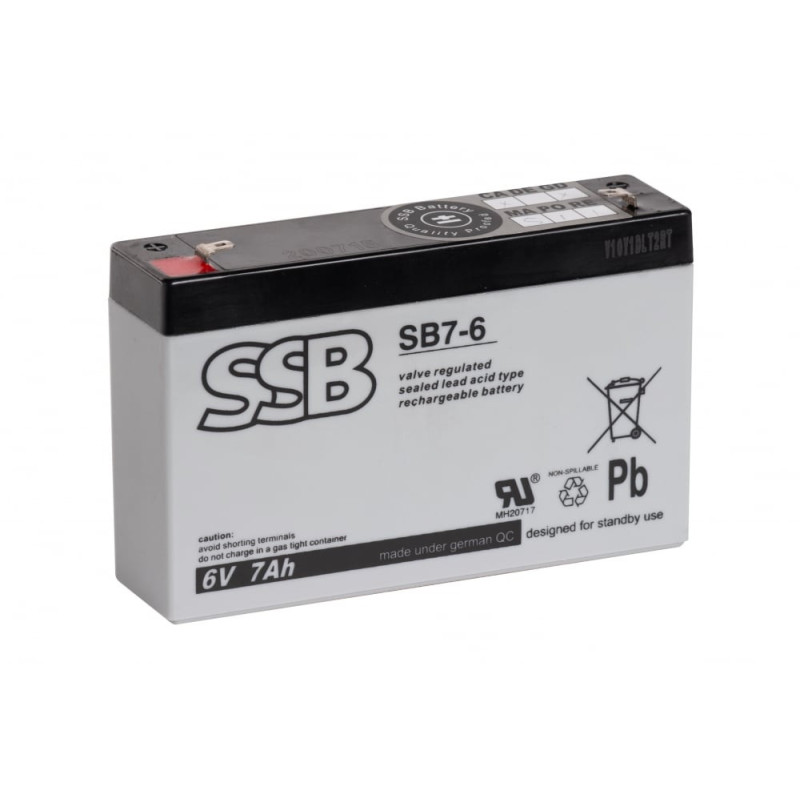

Battery (AGM) SSB SB (7Ah, 6V, F1, VRLA)
Product reference: 26-5902311970971
  • Type: AGM battery
  • Model: SB 7-6
  • Capacity: 7 Ah
  • Voltage: 6V
  • Connector: F1
  • Technology: VRLA (Valve Regulated Lead Acid)
  • Weight: 1.10 kg
  • Dimensions: 151x34x94 mm (length x width x height)
  • Height with connectors: 100 mm
  • In stock
Battery (AGM) SSB SB (7Ah, 6V, F1, VRLA)

Battery (AGM) SSB SB (7Ah, 6V, F1, VRLA)

Product reference: 26-5902311970971
  • Type: AGM battery
  • Model: SB 7-6
  • Capacity: 7 Ah
  • Voltage: 6V
  • Connector: F1
  • Technology: VRLA (Valve Regulated Lead Acid)
  • Weight: 1.10 kg
  • Dimensions: 151x34x94 mm (length x width x height)
  • Height with connectors: 100 mm
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1555 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General data
  • Nominal voltage 6 V
  • Nominal capacity 8 Ah @ C20 to 1.75 V/cell
  • Technology AGM (Absorbent Glass Mat), VRLA (Valve Regulated Lead Acid)
  • Weight ~ 1.1 kg
  • Design life 6-9 years (standby use), General Purpose acc. Eurobat
  • Internal resistance ~ 14.5 mΩ (fully charged)
  • Operating temperature range Discharge: -20°C to +60°C, Charge: 0°C to +50°C, Storage: -20°C to +60°C
  • Maximum discharge current 80 A (5 seconds)
  • Short-circuit current 400 A
  • Maximum charging current 2.40 A
  • Charging voltage Standby use: 6.85 - 6.94 VDC, Cycle use: 7.30 - 7.40 VDC
  • Self-discharge Monthly loss less than 3% at 25°C
  • Container material ABS UL94HB (optional UL94-V0)
  • Dimensions (L x W x H) 151 ±1.5 mm x 34 ±1.5 mm x 94 ±1.5 mm
  • Total height 100 ±1.5mm
  • Terminal types Fast-on 4.8 mm
  • Compliance standards PN-EN 60896-21:2007, PN-EN 60896-22:2007, PN-EN 61056-1:2013, PN-EN 61056-2:2013, PN-E-83016:1999
  • Certificates ISO 9001, ISO 14001
  • Usage UPS, Emergency Lighting, Fire Alarm Systems, Security Systems, Energy Utilities, DC Power Supply

Manufacturer codeAS7AH6V
ManufacturerSSB
Weight1.1 kg
