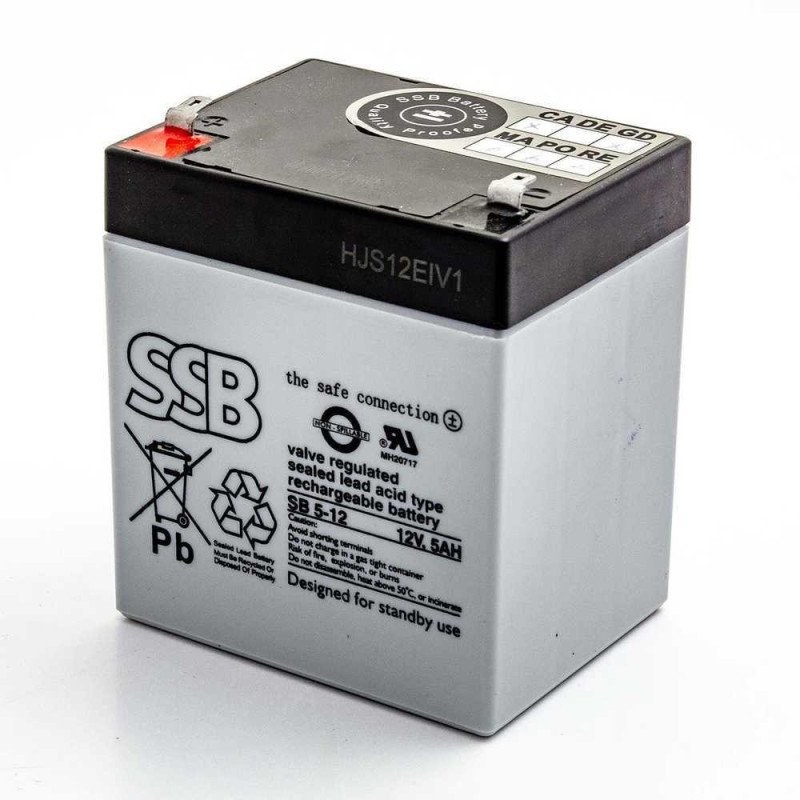

Battery (AGM) SSB SB (5Ah, 12V, F1, VRLA)
Product reference: 26-5902311971091
  • Type: AGM battery
  • Model: SB 5-12
  • Capacity: 5 Ah
  • Voltage: 12V
  • Connector: F1
  • Technology: VRLA (Valve Regulated Lead Acid)
  • Weight: 1.85 kg
  • Dimensions: 90x70x101 mm (length x width x height)
  • Height with connectors: 107 mm
  • In stock
Battery (AGM) SSB SB (5Ah, 12V, F1, VRLA)

Battery (AGM) SSB SB (5Ah, 12V, F1, VRLA)

Product reference: 26-5902311971091
  • Type: AGM battery
  • Model: SB 5-12
  • Capacity: 5 Ah
  • Voltage: 12V
  • Connector: F1
  • Technology: VRLA (Valve Regulated Lead Acid)
  • Weight: 1.85 kg
  • Dimensions: 90x70x101 mm (length x width x height)
  • Height with connectors: 107 mm
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1906 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General data
  • Nominal voltage 12V
  • Nominal capacity 5.2 Ah @ C20 to 1.75 V/cell, 5 Ah @ C10 to 1.80 V/cell
  • Technology AGM (Absorbent Glass Mat), VRLA (Valve Regulated Lead Acid)
  • Weight ~ 1.85 kg
  • Design life 6-9 years (standby use), General Purpose acc. Eurobat
  • Internal resistance ~ 26 mΩ (fully charged)
  • Operating temperature range Discharge: -20°C to +60°C, Charge: 0°C to +50°C, Storage: -20°C to +60°C
  • Maximum discharge current 75 A (5 seconds)
  • Short-circuit current 270 A
  • Maximum charging current 1.5A
  • Charging voltage Standby use: 13.7 - 13.9 VDC, Cycle use: 14.6 - 14.8 VDC
  • Self-discharge Monthly loss less than 3% at 25°C
  • Container material ABS UL94HB (optional UL94-V0)
  • Dimensions (L x W x H) 90 ±1.5 mm x 70 ±1.5 mm x 101 ±1.5 mm
  • Total height 107 ±1.5mm
  • Terminal types Fast-on 4.8 mm
  • Compliance standards PN-EN 60896-21:2007, PN-EN 60896-22:2007, PN-EN 61056-1:2013, PN-EN 61056-2:2013, PN-E-83016:1999
  • Certificates ISO 9001, ISO 14001
  • Usage UPS, Emergency Lighting, Fire Alarm Systems, Security Systems, Energy Utilities, DC Power Supply

Manufacturer codeAS5AH12V
ManufacturerSSB
Weight1.85 kg
