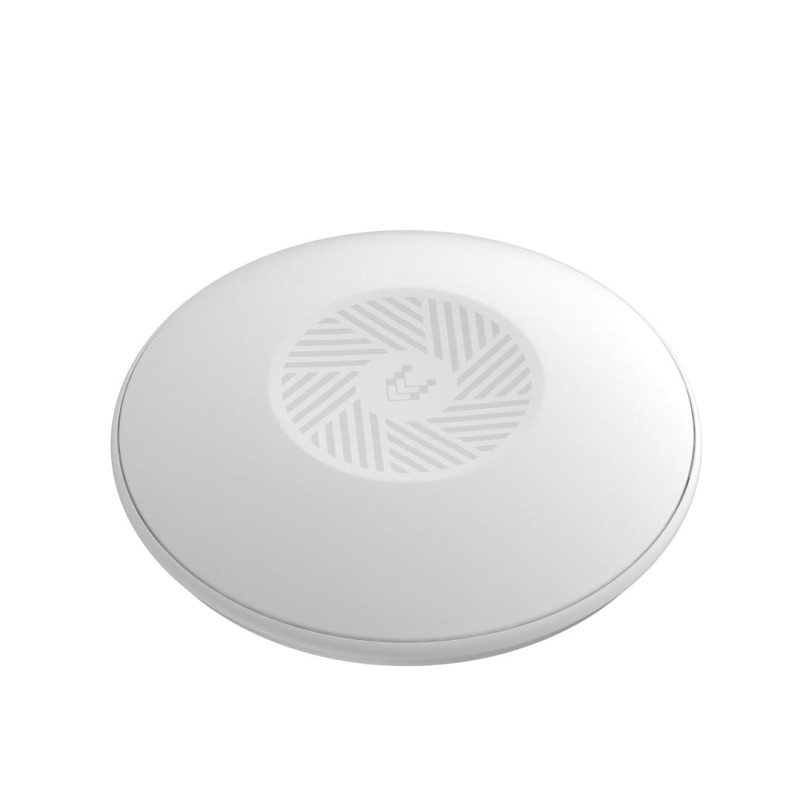

Access point Teltonika TAP400
Product reference: 26-TELTAP400
  • Type: Wireless Access Point
  • Manufacturer: Teltonika
  • Model: TAP400
  • Wi-Fi standard: Wi-Fi 6 (802.11b/g/n/ac/ax)
  • Wi-Fi frequencies: 2.4 GHz and 5 GHz
  • Antennas: 3 internal antennas
  • Ethernet port: 1 × RJ45 (2.5 Gbps)
  • Operating system: RutOS
  • RAM: 512MB DDR3
  • Internal memory: 16 MB SPI NOR Flash
  • SSID support: multiple SSIDs
  • Maximum number of Wi-Fi users: up to 512
  • Management: SSH
  • Power supply: 44-57V
  • Power consumption: 11 W
  • Operating temperature: 0 °C to +50 °C
Prieigos taškas Teltonika TAP400

Access point Teltonika TAP400

Product reference: 26-TELTAP400
  • Type: Wireless Access Point
  • Manufacturer: Teltonika
  • Model: TAP400
  • Wi-Fi standard: Wi-Fi 6 (802.11b/g/n/ac/ax)
  • Wi-Fi frequencies: 2.4 GHz and 5 GHz
  • Antennas: 3 internal antennas
  • Ethernet port: 1 × RJ45 (2.5 Gbps)
  • Operating system: RutOS
  • RAM: 512MB DDR3
  • Internal memory: 16 MB SPI NOR Flash
  • SSID support: multiple SSIDs
  • Maximum number of Wi-Fi users: up to 512
  • Management: SSH
  • Power supply: 44-57V
  • Power consumption: 11 W
  • Operating temperature: 0 °C to +50 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
12175 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Wireless standards 802.11b/g/n/ac/ax (Wi-Fi 6), dual band with speeds up to 2402 Mbps (5 GHz) and 576 Mbps (2.4 GHz), MU-MIMO
  • Wireless modes Access Point (AP), Station (STA)
  • Wireless roaming technologies 802.11r fast transition, 802.11k radio resource measurement, 802.11v BSS transition management
  • Wireless mesh 802.11s wireless mesh networking
  • Wi-Fi security WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP; 802.11w Protected Management Frames (PMF)
  • SSID features SSID stealth mode, MAC-based access control
  • Maximum wireless users Up to 512 simultaneous connections
  • Wireless MAC filtering Allowlist and blocklist
  • Wireless QR code connection QR code generator allowing automatic connection without manual login
  • TravelMate Forwards Wi-Fi hotspot landing page to subsequent connected devices
  • Ethernet port 1 × RJ45 port, 100/1000/2500 Mbps
  • Ethernet standards IEEE 802.3, IEEE 802.3u, IEEE 802.3az with auto MDI/MDIX
  • Network protocols TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, PPP, HTTP, HTTPS
  • Connection monitoring Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection
  • DNS security DNS over HTTPS proxy
  • Hotspot standard Hotspot 2.0 for seamless and secure automatic Wi-Fi connection
  • Traffic management Real-time monitoring, wireless signal charts, traffic usage history
  • Authentication methods SSH key-based authentication, HTTPS, CLI access control, login attempt blocking, time-based login blocking, random password generator
  • VLAN support Tag-based VLAN separation
  • Access control Access control for SSH, Web UI, CLI and Telnet
  • Certificate manager Supports CA, server, client, Let's Encrypt and SCEP certificates
  • 802.1X support Port-based network access control client
  • Data to server protocols HTTP(S), MQTT, Azure MQTT
  • Data to server features Data collection from multiple sources and protocols with custom LUA scripting
  • API support Teltonika Networks Web API (beta)
  • Control interface Web UI (HTTP/HTTPS), CLI, event logs, firmware update notifications
  • Remote management Teltonika Remote Management System (RMS)
  • Firmware updates FOTA updates from server with automatic notification
  • SSH support SSH v1 and v2
  • Email alerts Service status notifications via email
  • Management API JSON-RPC over HTTP/HTTPS
  • Wi-Fi scanner Detects nearby wireless devices and networks
  • CPU Mediatek dual-core 1.3 GHz
  • RAM 512MB DDR3
  • Flash storage 16MB SPI NOR Flash, 512MB SPI NAND Flash
  • Operating system RutOS (OpenWrt-based Linux OS)
  • Supported programming languages BusyBox shell, Lua, C, C++
  • Developer tools SDK package with build environment
  • Equipment customization GPL-based firmware customization including branding and web interface changes
  • Power input 44.0-57.0 V DC via PoE
  • PoE standard IEEE 802.3af PoE Class 3
  • Energy consumption Idle <7 W, maximum <11 W
  • Ethernet interfaces 1 × RJ45 100/1000/2500Mbps
  • Status LED indicators 1 × Power LED (configurable via Web UI)
  • Antenna 3 × internal dual-band antennas
  • Antenna frequency range 2400-2500 MHz and 5150-5850 MHz
  • Antenna amplification <4.33 dBi (2.4 GHz), <4.9 dBi (5 GHz), omnidirectional
  • Reset options Reboot, user default reset, factory reset button
  • Housing material UV-stabilized plastic and aluminum
  • Dimensions Ø 158 mm × 31.4 mm
  • Weight 285 g
  • Installation Ceiling mounting bracket for access point installation
  • Operating temperature 0 °C to 50 °C
  • Operating humidity 10-90% non-condensing
  • Dust and moisture protection class IP30
  • Regulatory approvals CE, UKCA, CB, EAC, UCRF, RCM, FCC, IC, WEEE
  • EMC standards EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
  • RF standards EN 300 328 V2.2.2, EN 300 893 V2.1.1, EN 300 440 V2.2.1
  • Safety standards IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020
  • Package contents Access Point TAP400, Quick Start Guide, Wi-Fi information sticker, packaging box
