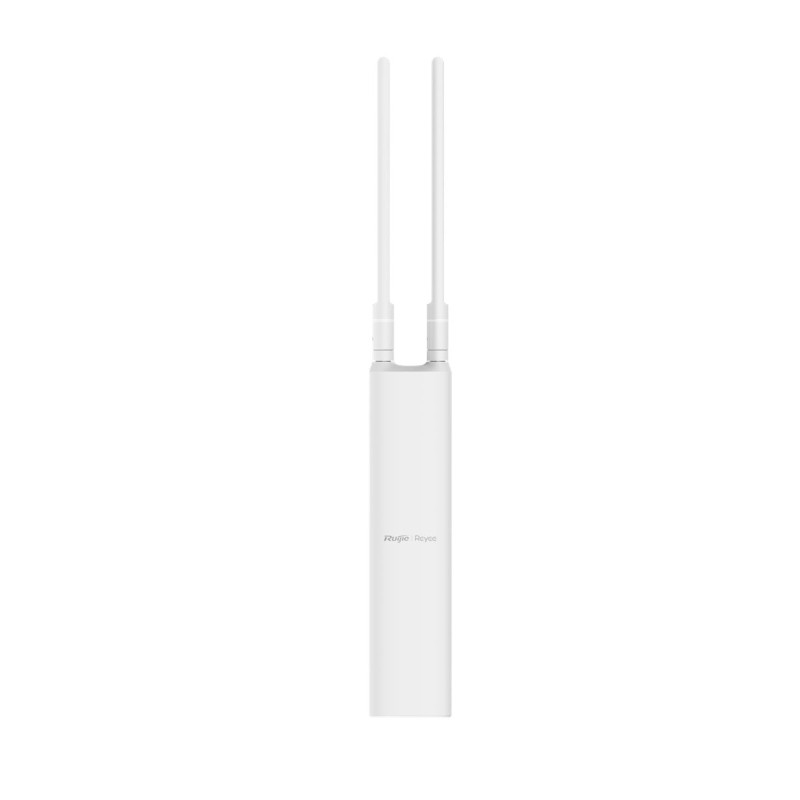

Access Point Ruijie Reyee RG-RAP52-OD (Wi-Fi 5, Outdoor Mountable)
Product reference: 26-6971693277519
  • Type: Access Point
  • Model: Ruijie Reyee RG-RAP52-OD
  • Wi-Fi standard: Wi-Fi 5 (802.11ac Wave2)
  • Ports: 1 x 1Gbps RJ45
  • Wi-Fi speed: up to 400 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended number of connected devices: 80 (max 110)
  • MIMO technology: 2x2 @ 2.4 GHz; 2x2 @ 5 GHz
  • Power consumption: ≤ 14 W
  • Power supply: 802.3af or 24V passive PoE
  • Operating temperature: -30°C to 70°C
  • IP Standard: IP65
  • Warranty: 3 years
  • In stock.
Access Point Ruijie Reyee RG-RAP52-OD (Wi-Fi 5, Outdoor Mountable)

Access Point Ruijie Reyee RG-RAP52-OD (Wi-Fi 5, Outdoor Mountable)

Product reference: 26-6971693277519
  • Type: Access Point
  • Model: Ruijie Reyee RG-RAP52-OD
  • Wi-Fi standard: Wi-Fi 5 (802.11ac Wave2)
  • Ports: 1 x 1Gbps RJ45
  • Wi-Fi speed: up to 400 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended number of connected devices: 80 (max 110)
  • MIMO technology: 2x2 @ 2.4 GHz; 2x2 @ 5 GHz
  • Power consumption: ≤ 14 W
  • Power supply: 802.3af or 24V passive PoE
  • Operating temperature: -30°C to 70°C
  • IP Standard: IP65
  • Warranty: 3 years
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
8974 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Wi-Fi protocols 5 GHz: Wi-Fi 4 (IEEE 802.11a/n), Wi-Fi 5 (IEEE 802.11ac Wave2); 2.4 GHz: Wi-Fi 4 (IEEE 802.11b/g/n)
  • Frequency bands 5 GHz: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz; 2.4 GHz: 2.400 GHz to 2.4835 GHz
  • Spatial flows 5 GHz: 2 spatial streams, 2x2 MIMO; 2.4 GHz: 2 spatial streams, 2x2 MIMO
  • Antenna Omni-directional
  • Antenna amplification 5 GHz: 4.0 dBi; 2.4 GHz: 3.0 dBi
  • Channel width 5 GHz: Auto/20/40/80 MHz; 2.4 GHz: Auto/20/40 MHz
  • Data transfer speed Max Throughput: 1266 Mbps; 5 GHz: 866 Mbps; 2.4 GHz: 400 Mbps
  • Maximum transmission power 5 GHz: ≤125 mW (21 dBm); 2.4 GHz: ≤160 mW (22 dBm)
  • Wi-Fi coverage 5 GHz Max. Range: 400m; 2.4 GHz Max. Range: 300 m
  • Modulation OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps, 64QAM@48/54 Mbps; DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, CCK@5.5/11 Mbps; MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
  • Receiver sensitivity 11b: -91dBm (1 Mbps), -88dBm (5.5 Mbps), -85dBm (11 Mbps); 11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps); 11n: -83dBm (MCS0), -65dBm (MCS7), -83dBm (MCS8), -65dBm (MCS15); 11ac (20 MHz): -83dBm (MCS0), -57dBm (MCS9); 11ac (40 MHz): -79dBm (MCS0), -57dBm (MCS9); 11ac (80MHz): -76dBm (MCS0), -51dBm (MCS9)
  • Size (W x D x H) 220 mm × 50 mm × 35.7 mm (8.66 in. × 1.97 in. × 1.41 in.), Antenna size: 185 mm (7.28 in.)
  • Weight ≤ 0.4 kg (0.88 lbs.) (excluding mounting kits)
  • Service Ports Number of 10/100/1000BASE-T Ports: 1 (supports 802.3af PoE); Number of 10/100/1000/2500BASE-T Ports: 0; Number of 1 Gbps Optical Ports (SFP): 0; Number of 10 Gbps Optical Ports (SFP+): 0
  • Power supply DC (Local Power): No; DC Port Dimensions: No; 802.3af: Yes; 802.3at: Yes; 802.3bt: N/A; 48 V passive PoE: N/A; PoE Out: No; Max. PoE Wattage by PSE: No
  • Energy consumption < 13.5W
  • Power adapter No
  • Keys 1 × Factory reset
  • LED 1 × System LED indicator (blue)
  • Working conditions (temperature) -30°C to +65°C (-22°F to +149°F)
  • Storage conditions temperature -40°C to +75°C (-40°F to +167°F)
  • Operating conditions (humidity) 10% to 95% (non-condensing)
  • Storage conditions humidity 10% to 95% (non-condensing)
  • Installation Ceiling-mount: No; Wall-mount: Yes; Pole-mount: Yes
  • Compliance Standards Health: EN IEC 62311:2020; Spectrum: EN 300 328 V2.2.2, EN 301 893 V2.1.1, EN 300 440 V2.2.1
  • Weather resistance IP Rating: IP65; Lightning Protection/Surge: ±4 kV
  • Operating mode Router Mode: Yes; AP Mode: Yes
  • WLAN Recommended Number of Clients: 16 (2.4G) + 64 (5G) = 80; Max. Number of SSIDs: 8; Radio-based STA Limit: Yes; Layer 2 Client Isolation: Yes; OFDMA Subcarrier: No; OFDMA: Well; Target Wake Time (TWT): No; Wi-Fi Multimedia (WMM): Yes; 802.1Q VLAN: Yes; Multi-Link Operation (MLO): No; 4K-QAM: No; Same SSID for Different VLANs: Yes
  • Roaming 802.11k/v: Yes; 802.11r: Yes; Layer 2 Roaming: Yes; Layer 3 Roaming: Yes; AI Roaming: Yes
  • Security PSK Authentication: Yes; Static Blocklist and Allowlist: Yes; WPA (TKIP), WPA2 (AES), and WPA-PSK: Yes; OWE (Enhanced Open): No; WPA3-SAE/WPA2-PSK: No; WPA3-SAE: No
  • Security features 802.1X: Yes; ARP Check: No; IP Source Guard: No; LLDP: Well; Static ARP Binding: Yes; Proxy ARP: No; Ping: Yes; Traceroute: Yes
  • Route NAT: Yes; Static IP Address: Yes; DHCP Server: Yes; PPPoE Client: Yes
  • AP Mesh Mesh Management: Yes; Reyee Mesh: Yes
  • Standalone Portal Captive Portal: Yes
  • Bandwidth throttling Yes
  • Data quota No
  • Management and maintenance Default Access/Password: Yes; Well of APs on a Self-Organizing Network: 300; Unified Networking for All Network Equipment: Yes
  • Management options Local or Remote Management via RuijieReyee App: Yes; Local Management via the Web Interface: Yes; Remote Management via Ruijie Cloud: Yes; SNMP: No
  • Platform management features Optimization of Channel, Transmit Power, and Management Frame Power Settings with Pre- and Post-Optimization Settings Displayed: Yes; Unified Configuration via Ruijie Cloud: Yes; Unified Monitoring via Ruijie Cloud: Yes

Weight0.237 kg
