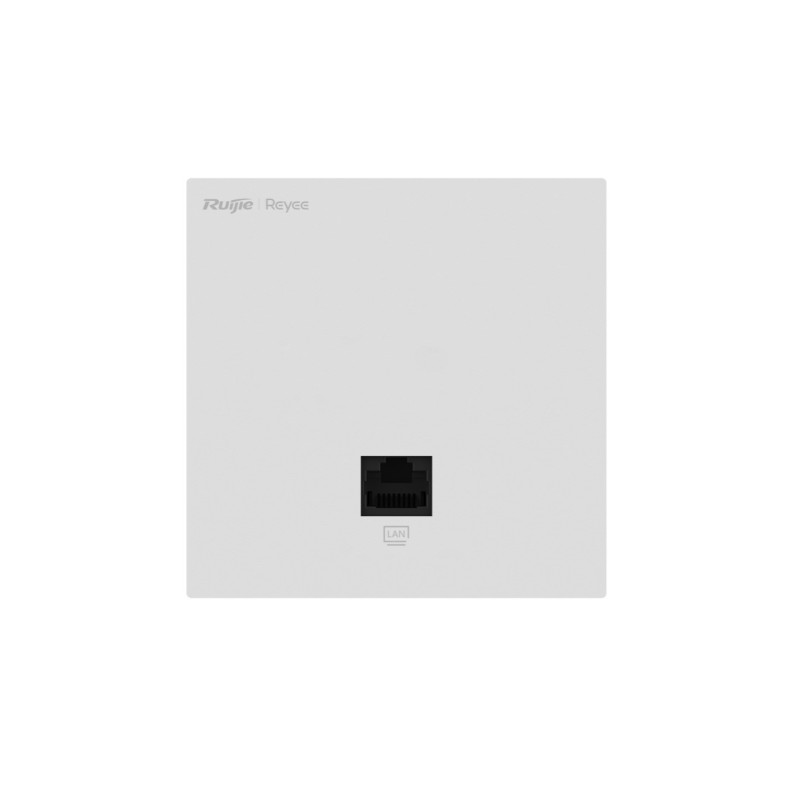

Access point Ruijie Reyee RG-RAP1201
Product reference: 26-6971693275706
  • Type: Access Point
  • Brand: Ruijie Reyee
  • Model: RG-RAP1201
  • Wi-Fi standard: Wi-Fi 5 (802.11ac Wave2)
  • Ports: 2 x 1Gbps RJ45
  • Wi-Fi speed: up to 400 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended devices: 40 (max. 110)
  • MIMO: 2x2 @ 2.4GHz; 2x2 @ 5GHz
  • Power consumption: ≤ 9 W
  • Power supply: 802.3af/at PoE
  • Operating temperature: 0°C - 40°C
  • Warranty: 3 years
Access point Ruijie Reyee RG-RAP1201

Access point Ruijie Reyee RG-RAP1201

Product reference: 26-6971693275706
  • Type: Access Point
  • Brand: Ruijie Reyee
  • Model: RG-RAP1201
  • Wi-Fi standard: Wi-Fi 5 (802.11ac Wave2)
  • Ports: 2 x 1Gbps RJ45
  • Wi-Fi speed: up to 400 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • Recommended devices: 40 (max. 110)
  • MIMO: 2x2 @ 2.4GHz; 2x2 @ 5GHz
  • Power consumption: ≤ 9 W
  • Power supply: 802.3af/at PoE
  • Operating temperature: 0°C - 40°C
  • Warranty: 3 years
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
5623 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Model RG-RAP1201
  • Type Wall-mounted Wi-Fi 5 Access Point
  • Wi-Fi standard 802.11ac Wave 2 (Dual-band)
  • Maximum wireless speed 1267 Mbps (867 Mbps on 5GHz, 400 Mbps on 2.4GHz)
  • MIMO configuration 2x2 MU-MIMO on both bands
  • Antenna type Built-in (2 dBi gain for both 2.4 GHz and 5 GHz)
  • Maximum number of customers 110
  • Recommended customers 40
  • SSID support Up to 8 SSIDs, with SSID hiding and VLAN assignment
  • Roaming Supports Layer 2 and Layer 3 roaming
  • Security PSK authentication, blacklist/whitelist, WPA, WPA2, WPA-PSK encryption
  • Route support Static IP, DHCP, PPPoE Dial-Up
  • Connectors Front: 1x 10/100/1000Base-T, Rear: 1x 10/100/1000Base-T (PoE in)
  • Power source PoE (IEEE 802.3af/at)
  • Energy consumption ≤ 9W
  • Management methods Ruijie Cloud, local web UI, Ruijie Reyee app, SON (Self-Organizing Network)
  • Cloud features Remote monitoring, portal authentication, centralized management
  • Optimization features WIO (WiFi Intelligent Optimization) - one-click optimization
  • Installation method Wall plate (86mm EU/US/Standard)
  • Dimensions 86 x 86 x 42.4 mm
  • Weight 0.14 kg
  • Operating temperature 0°C ~ 40°C
  • Storage temperature -40°C ~ 70°C
  • Humidity 5% ~ 95% non-condensing
  • Safety and EMC standards GB4943, IEC 62368-1, EN301 489, EN55032, EN61000, EN50121, EN55035
  • Vibration standard IEC61373
  • Radio certification SRRC, EN300 328, EN301 893
  • MTBF > 400,000 hours

Weight0.138 kg
