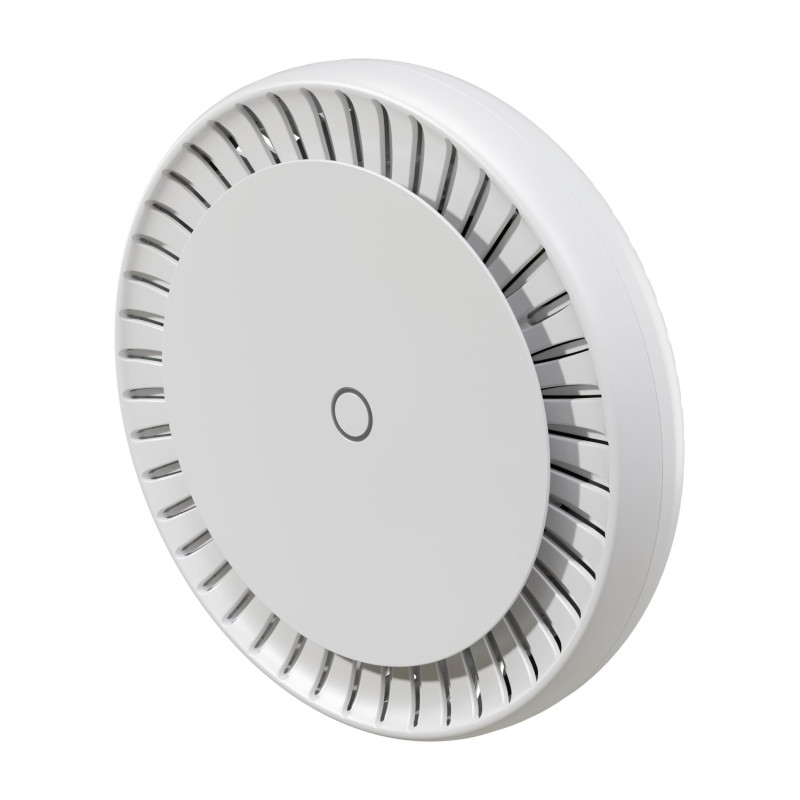

Access point MikroTik cAPGi-5HaxD2HaxD EG12-EA (Wi-Fi 6, 2x1GB LAN, 1xSIM)
Product reference:
26-MIKROTIKCAPGI5HAXD2HAX
- Type: Wireless access point with LTE
- Manufacturer: MikroTik
- Model: cAPGi-5HaxD2HaxDEG12-EA
- Processor: IPQ-6010
- Wi-Fi standard: Wi-Fi 6
- MIMO: 4×4
- Ethernet ports: 2 × 1G LAN
- SIM slot: 1 × SIM
- Operating system: RouterOS v7
- RAM: 1 GB RAM
- Internal memory: 128MB NAND
- Power supply: 18-57 V DC, 2 × DC jacks, PoE (802.3af/at, Passive PoE up to 57 V)
- Maximum power consumption: 34 W
- Protection class: IP20
Access point MikroTik cAPGi-5HaxD2HaxD EG12-EA (Wi-Fi 6, 2x1GB LAN, 1xSIM)
Product reference:
26-MIKROTIKCAPGI5HAXD2HAX
- Type: Wireless access point with LTE
- Manufacturer: MikroTik
- Model: cAPGi-5HaxD2HaxDEG12-EA
- Processor: IPQ-6010
- Wi-Fi standard: Wi-Fi 6
- MIMO: 4×4
- Ethernet ports: 2 × 1G LAN
- SIM slot: 1 × SIM
- Operating system: RouterOS v7
- RAM: 1 GB RAM
- Internal memory: 128MB NAND
- Power supply: 18-57 V DC, 2 × DC jacks, PoE (802.3af/at, Passive PoE up to 57 V)
- Maximum power consumption: 34 W
- Protection class: IP20
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Specifications
- Product code cAPGi-5HaxD2HaxDEG12-EA
- Architecture ARM 64bit
- CPU IPQ-6010
- Number of processor cores 4
- Nominal CPU frequency auto (864 - 1800) MHz
- Number of CPU threads 4
- Switch chip model IPQ-6010
- RouterOS license 4
- Operating system RouterOS v7
- RAM memory 1GB
- Storage size 128MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 50°C
- Power supply
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input voltage 18-57 V
- Maximum power consumption 34W
- Maximum energy consumption without accessories 13W
- PoE IN 802.3af/at
- Cooling type Passive
- PoE input voltage 18-57 V
- PoE output
- PoE output ports Ether2
- PoE OUT Passive PoE up to 57V
- Low Voltage PoE-Output Current Limiting 0.6A
- High Voltage PoE-Output Current Limiting 0.4A
- Total maximum current (A) 0.6A
- Total output current 0.6
- Total output power 22.8
- Mobile connection
- 3G category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
- 3G frequencies 1 (2100MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz)
- LTE category 12 (600Mbps Downlink, 150Mbps Uplink)
- MIMO DL 4x4
- MIMO UL 1x1
- LTE FDD frequency bands 1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900MHz) 20 (800MHz) 28 (700MHz)
- LTE TDD frequency bands 38 (2600MHz) 40 (2300MHz) 41 (2500MHz)
- TAC 86056104
- Wireless specifications
- Wireless 2.4 GHz maximum data transfer rate 574 Mbps
- Wireless 2.4 GHz number of circuits 2
- 2.4 GHz wireless standards 802.11b/g/n/ax
- Antenna gain dBi 2.4 GHz 6
- Wireless 2.4 GHz chip model QCN-5022
- Wireless 2.4 GHz frequency generation Wi-Fi 6
- Wireless 5 GHz maximum data transfer rate 1200 Mbps
- Number of wireless 5 GHz circuits 2
- 5 GHz wireless standards 802.11a/n/ac/ax
- Antenna gain dBi 5 GHz 5.5
- Wireless 5 GHz chip model QCN-5022
- Wireless 5 GHz generation Wi-Fi 6
- Ethernet
- 10/100/1000 Ethernet ports 2
- Number of 1G Ethernet ports with PoE output 1
- External devices
- Number of SIM slots 1 Modem (Micro SIM)
- Other
- CPU temperature monitoring Yes
- Mode button Yes
- Certificates and approvals
- Certification CE, EAC, ROHS
- IP 20
| Weight | 0.892 kg |
