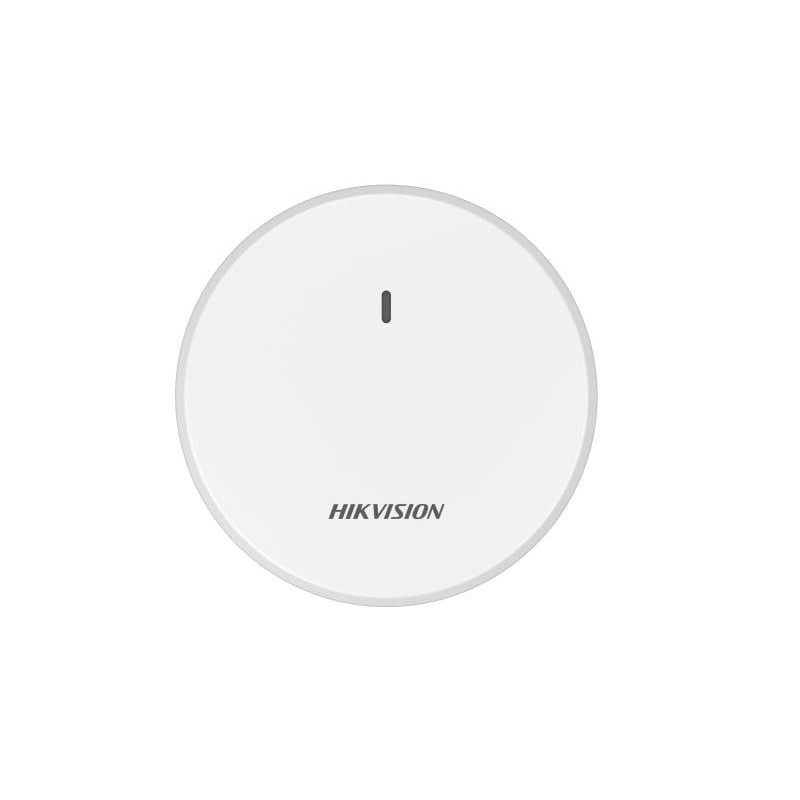

Access point Hikvision DS-3WAP522-SI
Product reference: 26-6942160449562

  • Wi-Fi 5 (802.11ac Wave 2) indoor access point (AP); dual-band 2×2 MU-MIMO.
  • Total wireless speed up to 1167 Mbps (300 Mb/s @ 2.4 GHz + 867 Mb/s @ 5 GHz).
  • 1× Gigabit RJ45 connection with PoE input (802.3af/at); max. power 11.35W.
  • Supports 80+ concurrent users (80 recommended; max. 256 customers).
  • Automatic RF optimization (speed optimization) and smart express roaming for smoother transitions between APs.
  • Installation: ceiling, wall.
  • Dimensions 220×220×35mm, weight 0.4 kg.
  • Working environment: 0-40°C, 5-95%RH (non-condensing).
  • In stock.
Access point Hikvision DS-3WAP522-SI

Access point Hikvision DS-3WAP522-SI

Product reference: 26-6942160449562

  • Wi-Fi 5 (802.11ac Wave 2) indoor access point (AP); dual-band 2×2 MU-MIMO.
  • Total wireless speed up to 1167 Mbps (300 Mb/s @ 2.4 GHz + 867 Mb/s @ 5 GHz).
  • 1× Gigabit RJ45 connection with PoE input (802.3af/at); max. power 11.35W.
  • Supports 80+ concurrent users (80 recommended; max. 256 customers).
  • Automatic RF optimization (speed optimization) and smart express roaming for smoother transitions between APs.
  • Installation: ceiling, wall.
  • Dimensions 220×220×35mm, weight 0.4 kg.
  • Working environment: 0-40°C, 5-95%RH (non-condensing).
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
6280 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
  • Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017), UL (UL 60950-1)
  • General information
  • Installation Mode Desk-Mounted, Wall-Mounted, Ceiling Mounting
  • In the package 1200 M Access Point ×1,Screw Pack ×1,Quick Start Guide ×1,Regulatory Compliance and Safety Information ×1
  • Energy consumption Max. 11.35 W
  • Product dimensions (W × H × D) 220mm × 220mm × 35mm (8.66'' × 8.66'' × 1.37'')
  • Storage humidity 5% to 95% (no condensation)
  • Storage temperature -40 °C to 70 °C (-40 °F to 158 °F)
  • Weight 0.4 kg (0.88 lb)
  • Operating humidity 5% to 95% (no condensation)
  • Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Hardware Specifications
  • Interface 1 × Gigabit RJ45 uplink port
  • LED indicator Yellow/green/blue for different working states, flashing mode
  • Power source IEEE 802.3af/at POE, 12 VDC 1.5 A
  • Reset button Hardware Reset Button
  • Software Specifications
  • Management Maintenance Centralized AC management
  • Version Upgrade upgrade on Web
  • WLAN security WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support SSID and VLAN binding,Support 802.11i
  • WLAN Parameters
  • Antenna amplification 2.4GHz: 3dBi,5GHz: 4dBi
  • Antenna type Built-in omnidirectional antennas
  • Channel width 2.4GHz: Auto/20/40MHz, 5GHz: Auto/20/40/80/MHz
  • Maximum Number of Clients 256
  • Maximum Number of SSIDs 8
  • Modulation Technology OFDM：BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps; DSSS：DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
  • Number of Antennas 2.4GHz: 2；5GHz: 2
  • Recommended Number of Clients 80
  • Spatial flows 2.4 GHz, 2 × 2, MU-MIMO, 5 GHz, 2 × 2, MU-MIMO
  • Transfer power 20 dBm
  • Wi-Fi Speed 2.4G: 300Mbps,5G: 867Mbps
  • Wi-Fi standards Wi-Fi 5
  • Working Frequency Band radio 1: 5G(11a/an/ac), radio 2: 2.4G(11b/g/gn)

Weight0.482 kg
