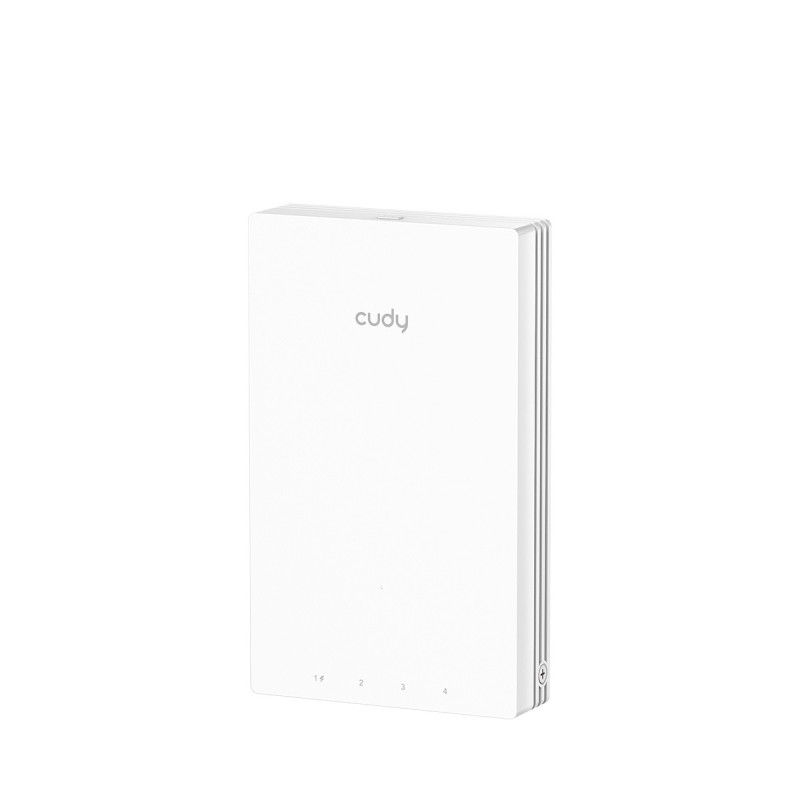

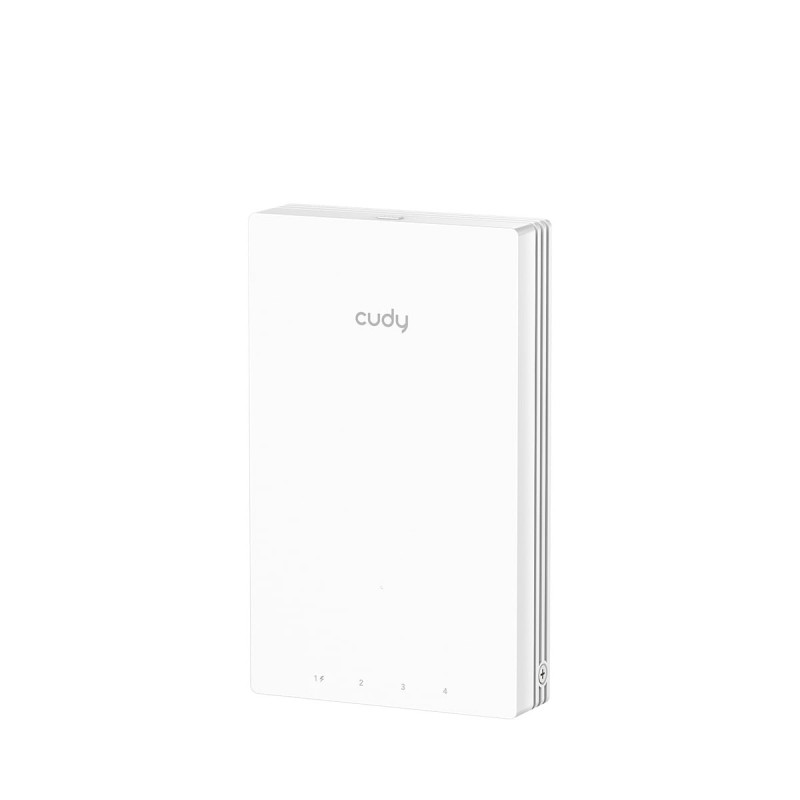

Access point CUDY AP3000 Wall (Wi-Fi 6)
Product reference: 26-6971690793395
  • Type: Access Point
  • Model: CUDY AP3000 Wall 1.0
  • Wi-Fi standard: Wi-Fi 6
  • Ports: 5 x 1Gbps RJ45
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 80 m
  • Power consumption: ≤ 12 W
  • Power supply: 802.3af/at PoE; 48V Passive PoE
  • Operating temperature: 0°C to 40°C
Access point CUDY AP3000 Wall (Wi-Fi 6)

Access point CUDY AP3000 Wall (Wi-Fi 6)

Product reference: 26-6971690793395
  • Type: Access Point
  • Model: CUDY AP3000 Wall 1.0
  • Wi-Fi standard: Wi-Fi 6
  • Ports: 5 x 1Gbps RJ45
  • Wi-Fi speed: up to 574 Mbps @ 2.4 GHz; 2402 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 80 m
  • Power consumption: ≤ 12 W
  • Power supply: 802.3af/at PoE; 48V Passive PoE
  • Operating temperature: 0°C to 40°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
6626 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General data
  • Model version AP3000 Wall 1.0
  • CPU 1.3 GHz Dual-Core CPU
  • Flash/ROM 128MB (1Gbit) NAND
  • DDR/RAM 256MB (2Gbit) DDR3
  • 5GHz Wi-Fi speed 2402 Mbps
  • 2.4 GHz Wi-Fi speed 574 Mbps
  • 5 GHz Wi-Fi streams 2T2R (2×2 MIMO) with an Extra Stream
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 3× Internal
  • Max. 5 GHz antenna gain 7.08 dBi (US), 6.52 dBi (EU)
  • Max. 2.4 GHz antenna gain 3.17 dBi
  • FEM or PA/LNA 5 GHz: 3× Internal, 2.4 GHz: 2× Internal
  • Beamforming True
  • Operating range Max: 80 m (262 ft)
  • Wall operation Two wooden walls < 10 cm, One concrete wall < 20 cm
  • Gigabit RJ45 Ports 5
  • Notes on Ethernet Back port accepts PoE; one front port supports PoE passthrough
  • LED indicators System
  • Physical buttons Reset Button, LED On/Off Button (configurable)
  • Power input PoE via Ethernet Port
  • Feeding methods Passive PoE, 802.3af/at PoE
  • Passive PoE voltage 48V
  • Maximum power consumption 12W (48V PoE)
  • Standby power consumption 5W (48V PoE)
  • Advanced features Hardware Watchdog
  • EMS Protection ESD Contact: 4kV, Air: 8kV
  • Operating temperature 0°C ~ 40°C (14°F ~ 149°F)
  • Storage temperature -40°C ~ 70°C (-40°F ~ 158°F)
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 90% non-condensing
  • Certificates FCC, CE
  • Installation type Wall-mount
  • Dimensions 143×86×27.6 mm (5.63×3.39×1.09 inches)
  • Product weight 298.6 g (10.53 oz.)

Weight0.298 kg
