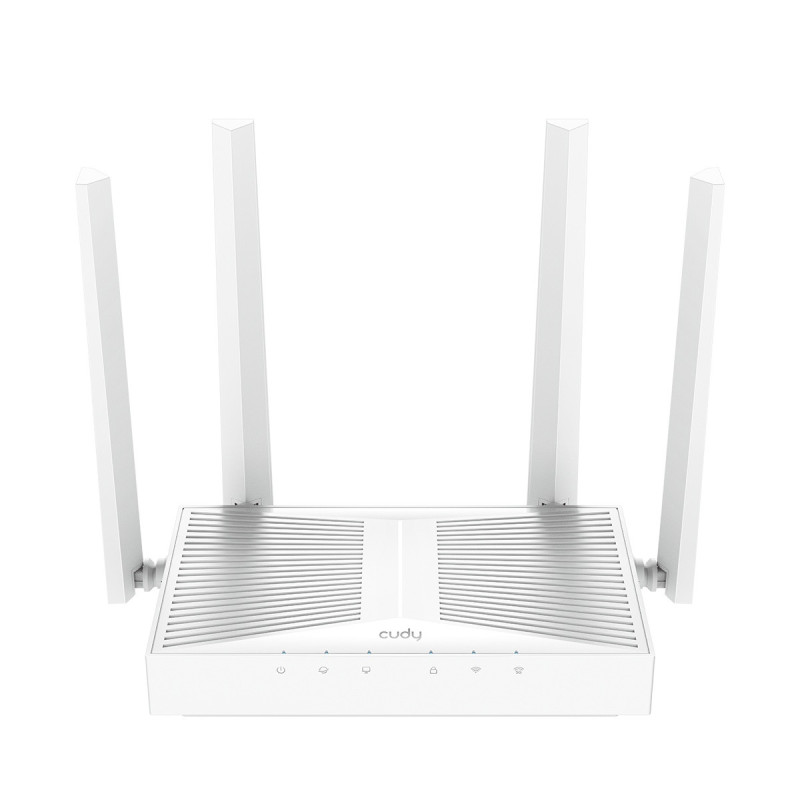

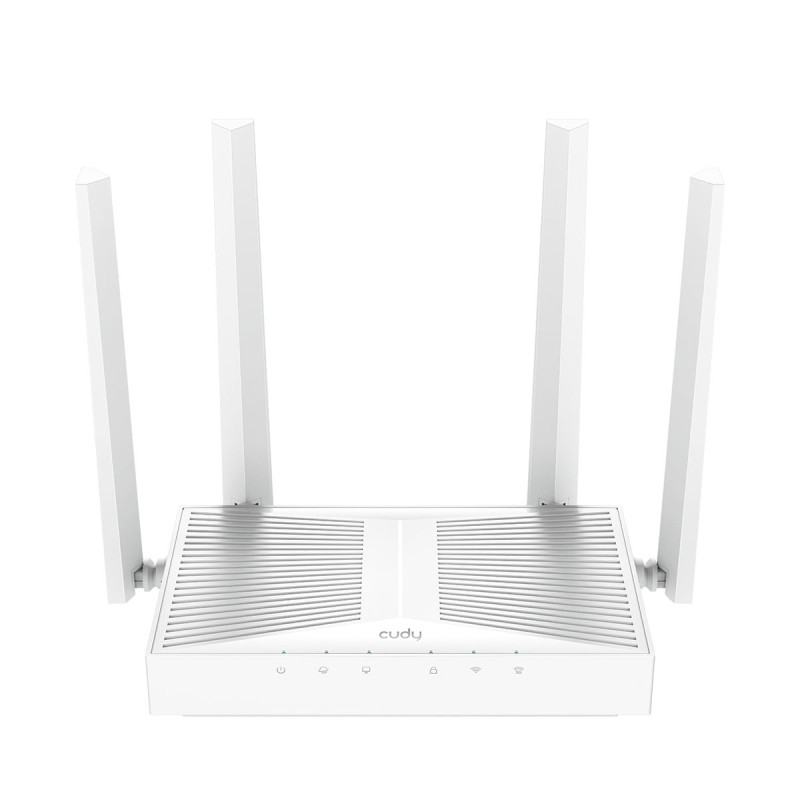

Access point CUDY AP1300D (Wi-Fi 5)
Product reference: 26-6971690793920
  • Type: Access Point
  • Model: CUDY AP1300D 1.0
  • Wi-Fi standard: Wi-Fi 5
  • Ports: 5 x 1Gbps RJ45
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 12 W
  • Power supply: 802.3af/at PoE; 12 - 57V Passive PoE; 12V 1A DC
  • Operating temperature: 0°C to 40°C
Access point CUDY AP1300D (Wi-Fi 5)

Access point CUDY AP1300D (Wi-Fi 5)

Product reference: 26-6971690793920
  • Type: Access Point
  • Model: CUDY AP1300D 1.0
  • Wi-Fi standard: Wi-Fi 5
  • Ports: 5 x 1Gbps RJ45
  • Wi-Fi speed: up to 300 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
  • MIMO technology: 2x2 MIMO
  • Operating distance: 170 m
  • Power consumption: ≤ 12 W
  • Power supply: 802.3af/at PoE; 12 - 57V Passive PoE; 12V 1A DC
  • Operating temperature: 0°C to 40°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3474 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • General data
  • Model version AP1300D 1.0
  • CPU 880 MHz Dual-Core CPU
  • Flash/ROM 16 MB (128 Mbit) NOR
  • DDR/RAM 128MB (1Gbit) DDR3
  • 5GHz Wi-Fi speed 867Mbps
  • 2.4 GHz Wi-Fi speed 300Mbps
  • 5 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi streams 2T2R (2×2 MIMO)
  • Wi-Fi antennas 4× Fixed
  • Max. 5 GHz antenna gain 5.3 dBi
  • Max. 2.4 GHz antenna gain 5.2 dBi
  • FEM or PA/LNA 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
  • Beamforming True
  • Operating range Max: 170 m (558 ft) in open space
  • Wall operation Two wooden walls (<10 cm), one concrete wall (<20 cm)
  • Gigabit RJ45 Ports 1
  • Notes on Ethernet Supports PoE input
  • LED indicators 5 GHz Wi-Fi, 2.4 GHz Wi-Fi, WPS, LAN, Internet, Power
  • Physical buttons Reset Button, Power On/Off Button
  • Power input DC Jack, PoE via Ethernet Port
  • Feeding methods DC, Passive PoE, 802.3af/at PoE
  • DC Specification 12V 1A
  • Passive PoE Range 12~57V
  • Power Adapter Input 100-240V AC, 50/60Hz
  • Power Adapter Output 12V 1A DC
  • Maximum power consumption Max (PoE): 11W, Max (DC): 8.5W
  • ESD protection Contact: 4kV, Air: 8kV
  • Operating temperature -10°C ~ 65°C (14°F ~ 149°F)
  • Storage temperature -40°C ~ 70°C (-40°F ~ 158°F)
  • Operating humidity 10% ~ 90% non-condensing
  • Storage humidity 5% ~ 90% non-condensing
  • Certificates FCC, CE
  • Installation type Desktop, Wall-mount
  • Device Dimensions 183.3×109×38 mm (7.22×4.29×1.5 inches)
  • Antenna Length 175 mm (6.89 inches)
  • Product weight 265.2 g (9.35 oz.)

Weight0.35 kg
