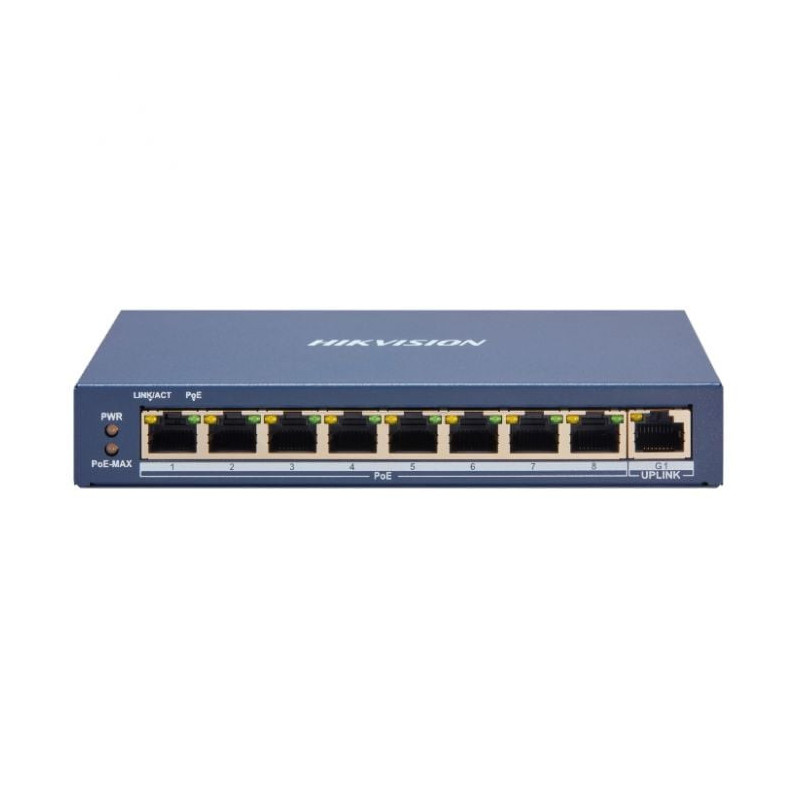

9-port, 8 PoE switch Hikvision DS-3E1309P-EI
Product reference: 26-6941264052883
  • 9 ports
  • 8 × 10/100 Mbps PoE LAN ports, 1 × 1000 Mbps LAN port,
  • PoE ports: 8
  • Maximum power: 110W
  • Total bandwidth: 5.6 Gbps
  • Packet transmission rate: 4.17 Mpps
  • MAC address table: 8K
  • Current: 2.22 A
  • Installation: Desktop; wall-mounted
  • Operating temperature range: 0°C ~ 40°C
9-port, 8 PoE switch Hikvision DS-3E1309P-EI

9-port, 8 PoE switch Hikvision DS-3E1309P-EI

Product reference: 26-6941264052883
  • 9 ports
  • 8 × 10/100 Mbps PoE LAN ports, 1 × 1000 Mbps LAN port,
  • PoE ports: 8
  • Maximum power: 110W
  • Total bandwidth: 5.6 Gbps
  • Packet transmission rate: 4.17 Mpps
  • MAC address table: 8K
  • Current: 2.22 A
  • Installation: Desktop; wall-mounted
  • Operating temperature range: 0°C ~ 40°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
8068 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Network settings
  • Number of ports 8 × 10/100 Mbps PoE ports, and 1 × Gigabit RJ45 port
  • Port type RJ45 port, full duplex, MDI/MDI-X adaptive
  • Working mode

    Standard mode (default)

    Extend mode
  • Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
  • Transmission mode Store-and-forward switching
  • MAC address table 16 K
  • Internal cache memory 4 Mbit
  • Switching capacity 3.6 Gbps
  • Packet transfer speed 2.6784 Mpps
  • PoE
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • PoE power connector

    End span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE port Ports 1 to 8
  • Max PoE port power 30W
  • PoE available power 110W
  • Software features
  • Port configuration Support rate, flow control, and switch configuration
  • Device maintenance Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
  • PoE function IEEE 802.3at/af device provides power supply.
  • PoE configuration

    PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.

    PoE enabling: Support
  • Home
  • Frame Metal material, fan-free design
  • Weight without packaging 0.35 kg (0.77 lb)
  • Weight with packaging 1.114 kg (2.45 lb)
  • Size (W×H×D) 170 mm × 27.6 mm × 93.1 mm (4.76" × 3.47" × 1.09")
  • Working conditions (temperature) 0°C to 40°C (32°F to 104°F)
  • Storage conditions -40°C to 85°C (-40°F to 185°F)
  • Operating conditions (humidity) 5% to 95% (no condensation)
  • Relative humidity 5% to 95% (no condensation)
  • Power supply 48VDC, 2.5A
  • Max. power consumption 120W
  • Approvals
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Certification of chemical components CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Manufacturer codeSWITCHDS3E1309PEI
ManufacturerHikvision
Weight0.35 kg
