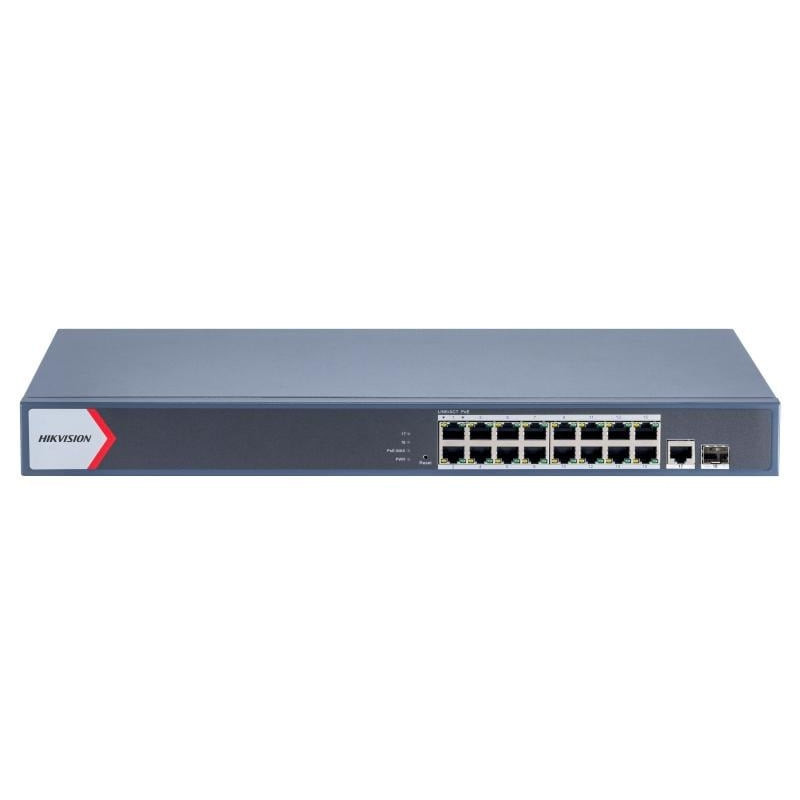

18-port, 16-port PoE switch Hik-vision DS-3E1518P-EI(V2)
Product reference:
26-6942160430911
- 18 ports
- 16 × 1000 Mbps PoE LAN ports, 1 × 1000 Mbps SFP port, and 1 × 1000 Mbps uplink LAN port
- PoE ports: 16
- Maximum power: 230 W
- Total bandwidth: 56 Gbps
- Packet transmission rate: 41.66 Mpps
- MAC address table: 8K
- Standards: IEEE 802.3u, IEEE 802.3x
- Operating voltage: 110-250 VAC
- Current: 2.5 A
- Mounting: RACK
- Operating temperature range: -10°C ~ 55°C
18-port, 16-port PoE switch Hik-vision DS-3E1518P-EI(V2)
Product reference:
26-6942160430911
- 18 ports
- 16 × 1000 Mbps PoE LAN ports, 1 × 1000 Mbps SFP port, and 1 × 1000 Mbps uplink LAN port
- PoE ports: 16
- Maximum power: 230 W
- Total bandwidth: 56 Gbps
- Packet transmission rate: 41.66 Mpps
- MAC address table: 8K
- Standards: IEEE 802.3u, IEEE 802.3x
- Operating voltage: 110-250 VAC
- Current: 2.5 A
- Mounting: RACK
- Operating temperature range: -10°C ~ 55°C
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Home
- Frame Metal material
- Weight without packaging 2.85 kg (6.28 lb)
- Weight with packaging 3.05 kg (6.72 lb)
- Size 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
- Working conditions (temperature) 0 °C to 45 °C (32 °F to 113 °F)
- Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
- Operating conditions (humidity) 5% to 95% (no condensation)
- Relative humidity 5% to 95% (no condensation)
- Power supply 100~240 V AC, 50/60 Hz, Max. 4 A
- Installation Mode Rack (equipped with mounting ears)
- Max. power consumption 250W
- Power consumption in sleep mode 20W
- Surge Protection 6 KV
- Network settings
- Ports 16 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port
- MAC address table 8 K
- Switching capacity 56 Gbps
- Packet forwarding speed 41.66 Mpps
- Internal cache memory 4.1 Mbits
- PoE
- PoE standard IEEE 802.3af, IEEE 802.3at
- PoE power connector 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE port PoE: Ports 1 to 16
- Max PoE port power 30W
- PoE available power 230W
- Software features
- Long range mode Ports 1 to 16: up to 300 m. Long range performance may vary depending on camera model or cable condition.
- Port insulation
Ports 1 to 16: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE Watchdog Ports 1 to 16: auto detect and restart the cameras that do not respond.
- Link aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 8 aggregation group(s).
- Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Support 802.1w RSTP.
- VLANs
VLAN is used for network scale planning and network health improvement.
Supports 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLANs.
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
- System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Support 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
- Approvals
- EMC CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017)
- Security
CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);
CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Chemical analysis CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
| Weight | 2.575 kg |
