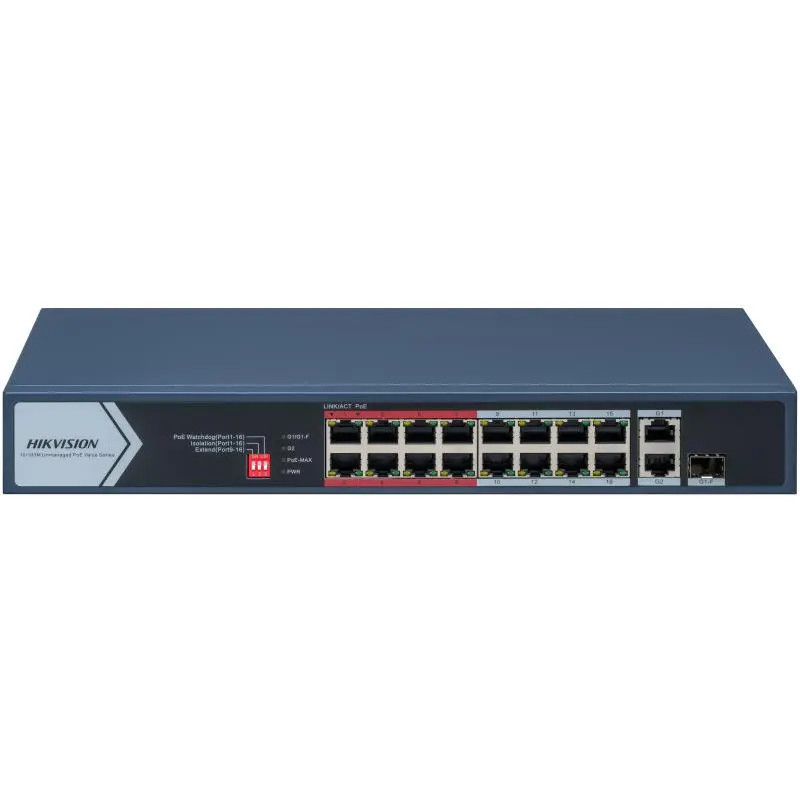

18-port, 16-port PoE switch Hik-vision DS-3E0318P-E / M(C)
Product reference: 26-6931847185992
  • 18 ports
  • 16 × 10/100 Mbps PoE RJ45 ports, 1 Gigabit RJ45 port, 1 Gigabit combo port
  • Up to 300m long-range PoE transmission
  • Video transmission-oriented design: VIP port ensures critical data transmission when network congestion occurs.
  • 6kV
  • 4/8 core adaptive power supply with lower power loss
18-port, 16-port PoE switch Hik-vision DS-3E0318P-E / M(C)

18-port, 16-port PoE switch Hik-vision DS-3E0318P-E / M(C)

Product reference: 26-6931847185992
  • 18 ports
  • 16 × 10/100 Mbps PoE RJ45 ports, 1 Gigabit RJ45 port, 1 Gigabit combo port
  • Up to 300m long-range PoE transmission
  • Video transmission-oriented design: VIP port ensures critical data transmission when network congestion occurs.
  • 6kV
  • 4/8 core adaptive power supply with lower power loss
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
16399 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Network settings
  • Ports 16 × 10/100 Mbps PoE RJ45 port, 1 Gigabit RJ45 port, 1 Gigabit combo port
  • Port type RJ45 port, full duplex, MDI/MDI-X adaptive
  • Working mode Standard mode (default); Extend mode
  • Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Transmission mode Store-and-forward switching
  • High priority ports Ports 1 to 8
  • MAC address table 4K
  • Switching capacity 7.2 Gbps
  • Packet forwarding speed 5.356 Mpps
  • Internal cache memory X
  • PoE
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • PoE power connector

    End span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE port Ports 1 to 16
  • Max PoE port power 30W
  • PoE available power 130W
  • Call function
  • Long range mode Ports 9 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
  • Home
  • Size 266 mm × 44.5 mm × 220.8 mm (10.5" × 1.8" × 8.7")
  • Frame Metal material
  • Weight with packaging 2.58 kg (5.69 lb)
  • Weight without packaging 1.80 kg (4.00 lb)
  • Working conditions humidity -10 °C to 55 °C (14 °F to 131 °F)
  • Working conditions humidity 5% to 95% (no condensation)
  • Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage conditions humidity 5% to 95% (no condensation)
  • Power supply 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
  • Power consumption in sleep mode 20W
  • Max. power consumption 150W
  • Approvals
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Chemical analysis CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Weight2.161 kg
