ALFA NETWORK 2.4GHz Omni Antenna 9dBi N-Female
Product reference: 18-AOA-2409TFA

ALFA NETWORK 2.4GHz Omni Antenna 9dBi N-Female

ALFA NETWORK 2.4GHz Omni Antenna 9dBi N-Female

Product reference: 18-AOA-2409TFA

ALFA NETWORK 2.4GHz Omni Antenna 9dBi N-Female

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2611
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

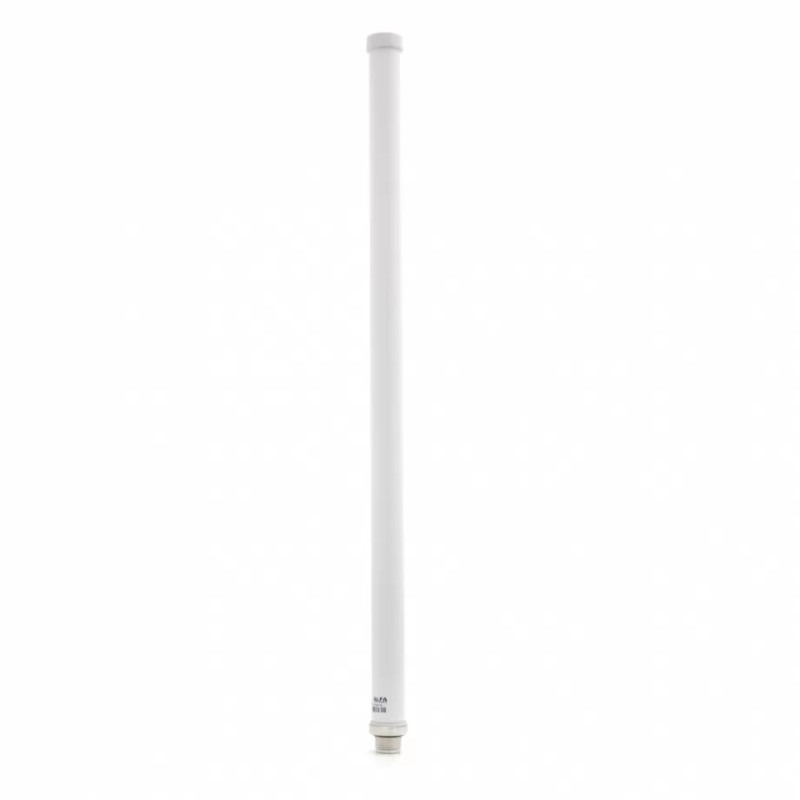

Alfa AOA-2409TFA is a light-weight outdoor omni-directional antenna priced much lower than comparable products from competing brands. At 1.5 feet tall, AOA-2409TFA is a great option for use on boats, RVs, or building-to-building Wi-Fi installations.


With an N-female connector, AOA-2409TFA can be connected directly to a variety of outdoor Wi-Fi products including Alfa's Tube-U series, the Ubiquiti Bullet series, and the Mikrotik Groove. Contact our sales team for information about compatible extension cables and pigtails for use with your particular WiFi receiver. This antenna was designed for direct connection to these adapters.While it can be mounted separately and connected to a receiver with an extension cable, this does not include a mounting bracket for the antenna. No bracket is needed when connecting directly to a product like Alfa's Tube-U(G) or Ubiquiti's Bullet, as those products are specifically designed for mounting themselves.


More about this item:



  • Lightweight fiberglass construction makes installation easy

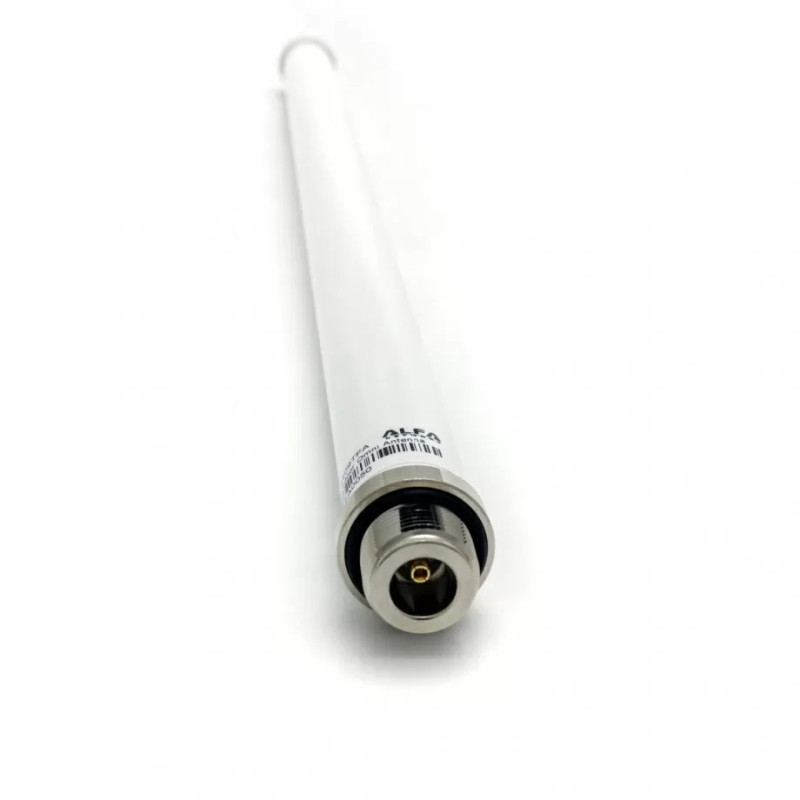

  • Integrated N-Female connector provides fast and easy cable connection

  • Designed for the 2.4GHz ISM band, supporting 2.4 to 2.5 GHz and provides superb performance in IEEE 802.11b/g Wi-Fi and Bluetooth applications

  • Superior Performance and Weatherproof


Features* Light weight * All weather operation













































Frequency Range2400 - 2500 MHz
Gain9 dBi
VSWR≤ 2.0
RadiationOmni Direction
Impedance50Ω
ConnectorN female
Dimensions22 x 418 mm
Weight108 g
Temperature-40°C to 80°C
Humidity95% @ 25°C
