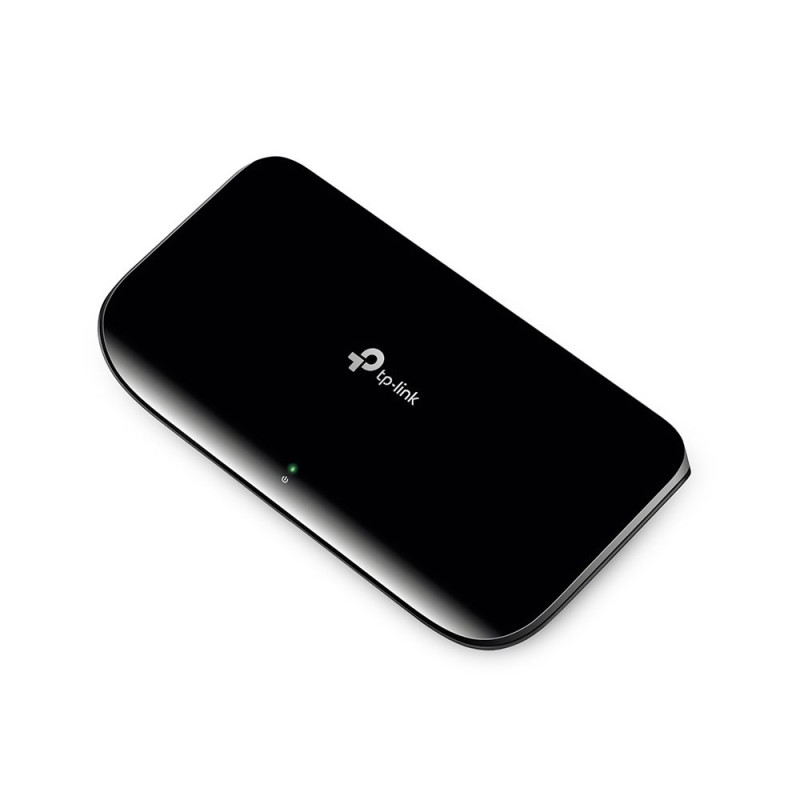

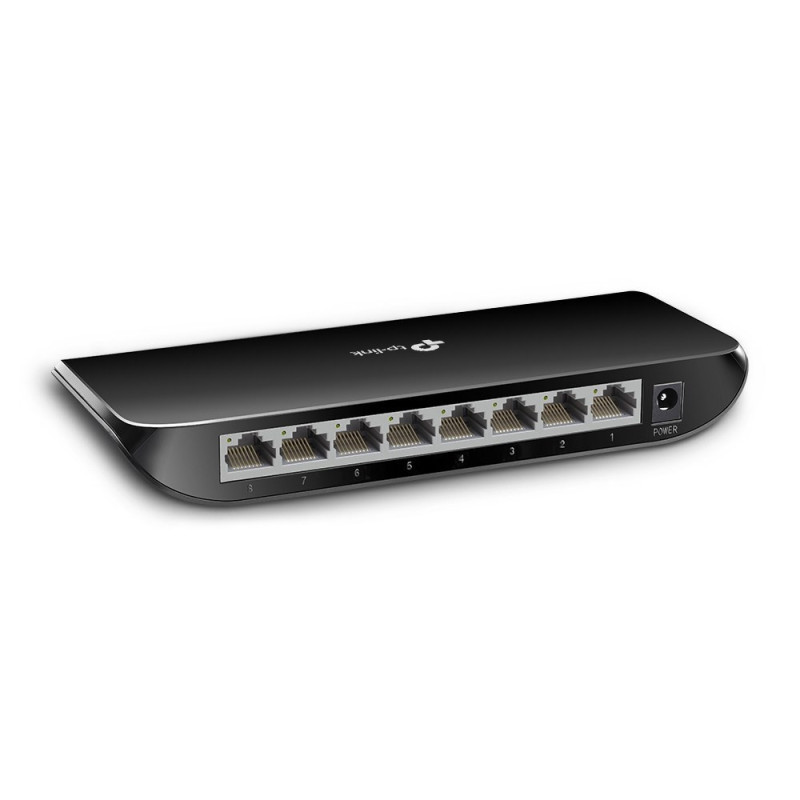

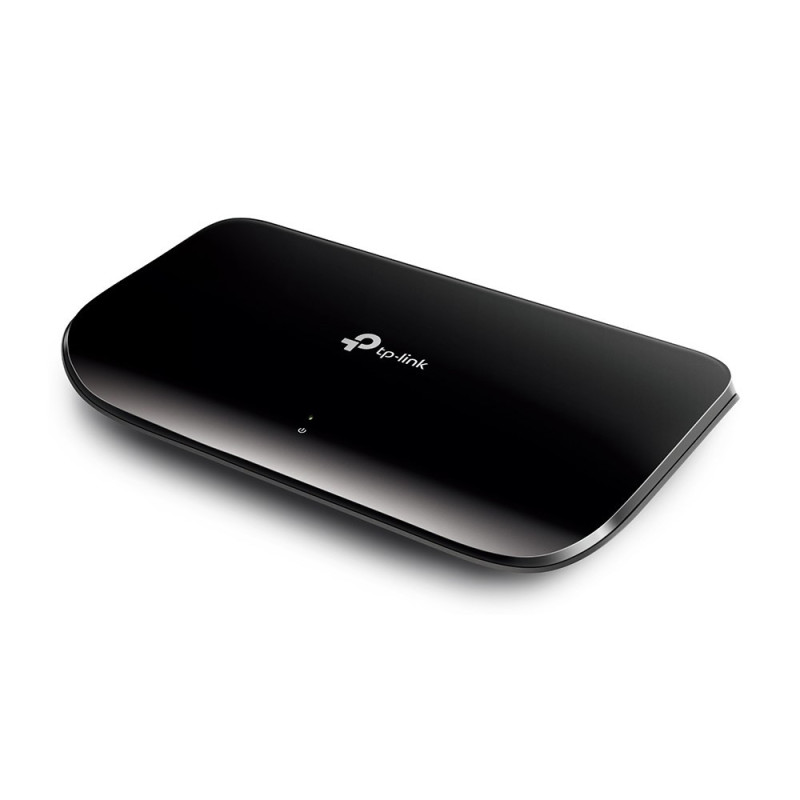

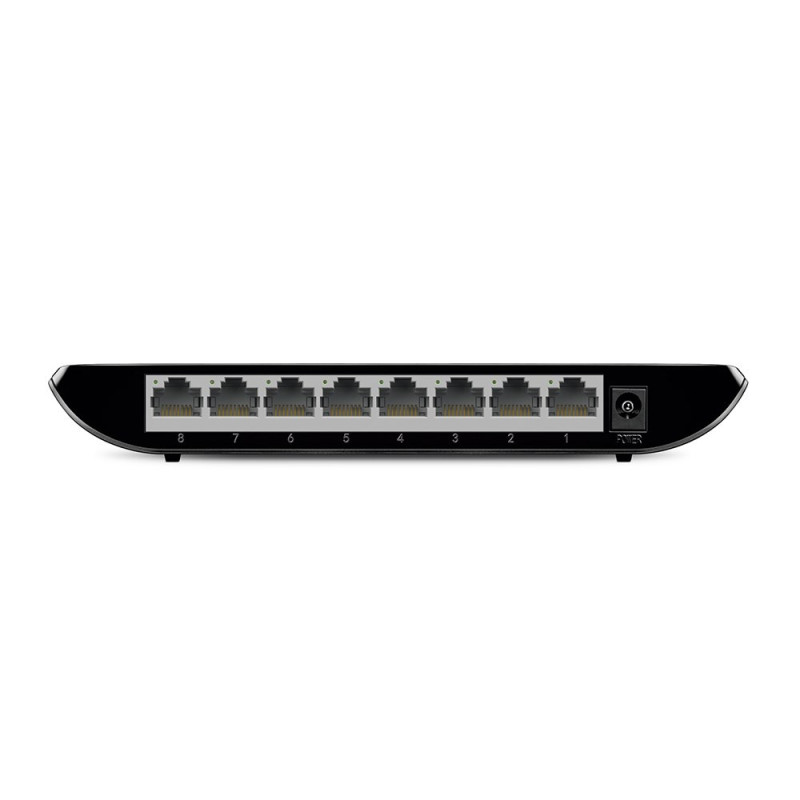

TP-Link 8-Port Gigabit Desktop Network Switch
Product reference:
6-TL-SG1008D
TP-Link 8-Port Gigabit Desktop Network Switch
TP-Link 8-Port Gigabit Desktop Network Switch
Product reference:
6-TL-SG1008D
TP-Link 8-Port Gigabit Desktop Network Switch
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
Not available
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Cables included | AC |
| Certification | CE, FCC, RoHS |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| DC input voltage | 9 V |
| Depth | 90 mm |
| Ethernet LAN data rates | 10,100,480,800,1000 Mbit/s |
| Fanless | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Harmonized System (HS) code | 85176990 |
| Heat dissipation | 15.8 BTU/h |
| Height | 25.5 mm |
| Housing material | Plastic |
| Input current | 0.6 A |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| MAC address table | 4000 entries |
| Maximum cable length | 100 m |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 2 MB |
| Packet forwarding rate (1 Gbps) | 14880 pps |
| Packet forwarding rate (10 Mbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Power connector | DC-in jack |
| Power consumption (max) | 3.53 W |
| Power consumption (typical) | 4.63 W |
| Power over Ethernet (PoE) | No |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Rack mounting | No |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Sustainability compliance | Yes |
| Switch type | Unmanaged |
| Switching capacity | 16 Gbit/s |
| User guide | Yes |
| Wall mountable | Yes |
| Warnings | Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Width | 180 mm |
