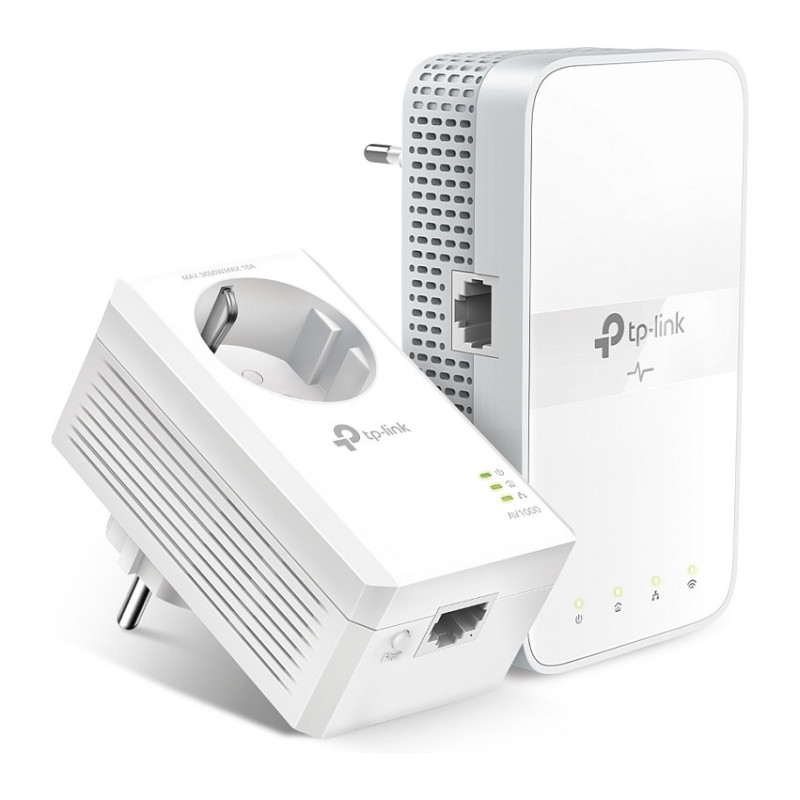

TP-Link TL-WPA7617 KIT PowerLine network adapter

TP-Link TL-WPA7617 KIT. Maximum data transfer rate: 1200 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab,..., Power plug: Type E / F. Power consumption (typical): 6.5 W. Product colour: White, Antenna type: Internal, Certification: CE,RoHS. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP. Width: 69.5 mm, Depth: 35 mm, Height: 124.1 mm
Enjoy even more with an ultra-fast Wi-Fi extender and the existing power grid.
AV1000 Gigabit Passthrough Powerline AC Wifi-kit

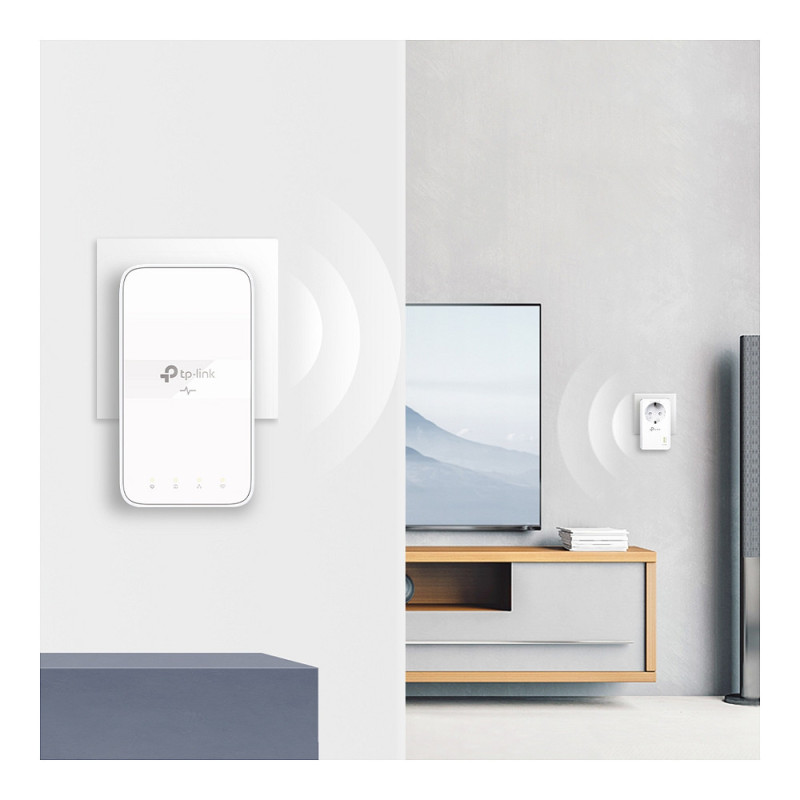

Easily extend fast, reliable Wi-Fi to every room
With the TL-WPA7617 KIT, you turn the existing power grid into a gigabit ultra-fast network and extend wired and wireless networks to locations with a power outlet.
- No need to drill or lay cables
- Network penetrates walls and floors
- Compatible with all Wi-Fi routers or other Powerline products
- Expand coverage by adding extra extenders
Maximum speeds up to 1000 Mbps and 300 meters range
Using advanced HomePlug AV2 technology, the TL-WPA7617 KIT provides stable and super-fast Wi-Fi with transfer speeds of up to 1000 Mbps* over distances of up to 300 meters via the existing power grid. Stream in HD, game online, and download large files without interruptions thanks to the reliable Powerline connections.

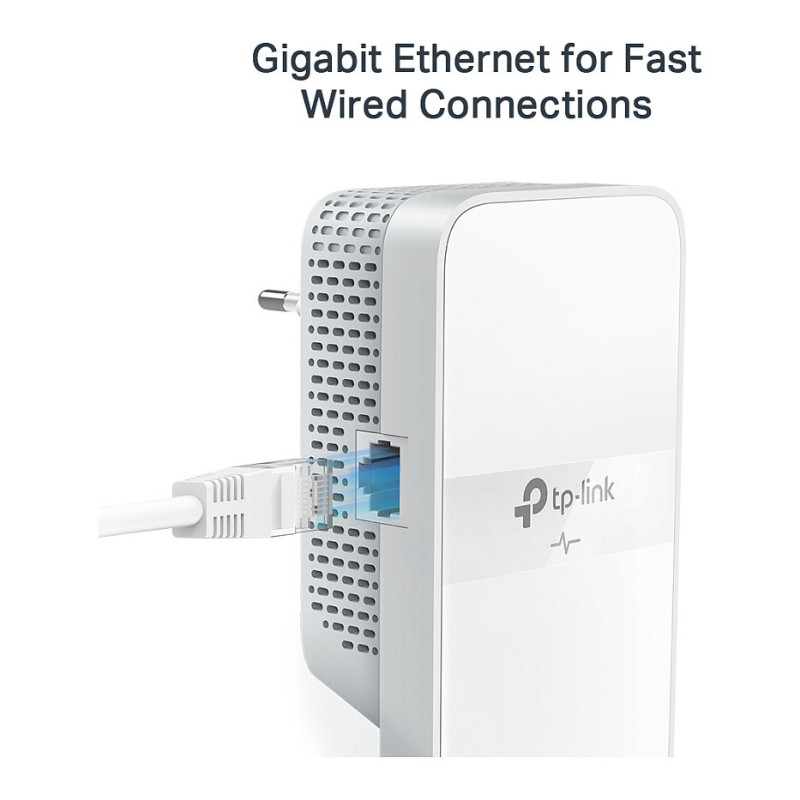

Gigabit Ethernet for reliable connections
One gigabit Ethernet port offers lightning-fast wired connections for streaming 4K HD video, lag-free gaming, and more. Two Ethernet cables are included.
AC 1200 Wi-Fi for ultra-fast internet connections
AC1200 dual-band Wi-Fi (867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz) enables streaming, gaming, emailing, browsing the internet, and posting content via wireless devices throughout the house.

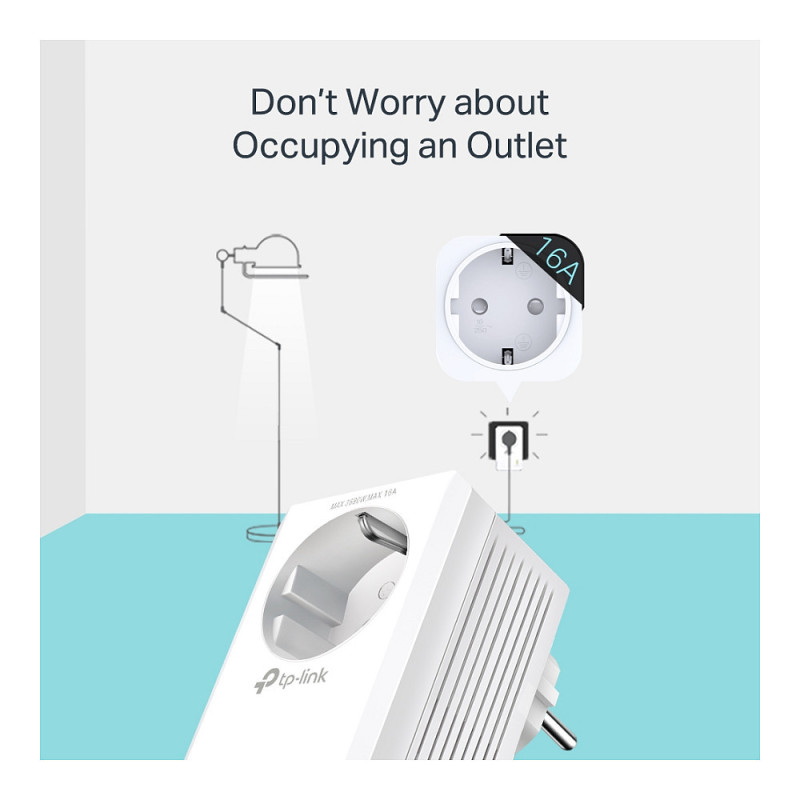

Don't worry about the power outlet
You can use the TL-PA7017P as a regular power outlet. Connect PCs, smart TVs, or other wired devices; performance remains the same.
Note: Additionally, the built-in noise filter helps eliminate electrical signals that can interfere with the performance of Powerline devices.

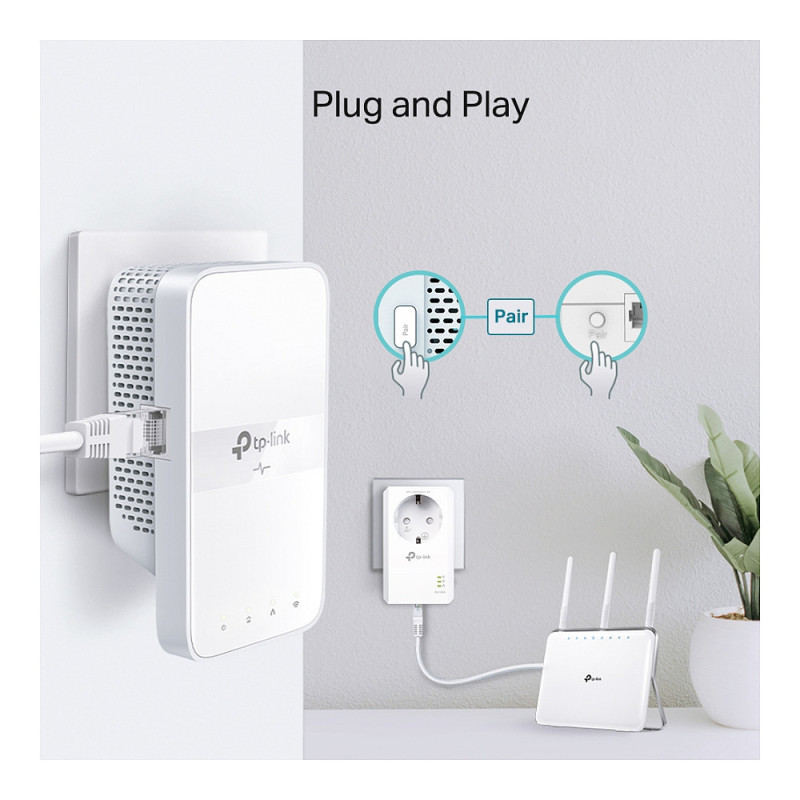

Plug and play:
no configuration needed
Say goodbye to complicated installation forever. With Powerline, you only need to follow two steps:
- Step 1: Connect the TL-PA7017P to the router.
- Step 2: Plug the TL-WPA7617 into a power outlet where you need wired and wireless internet.

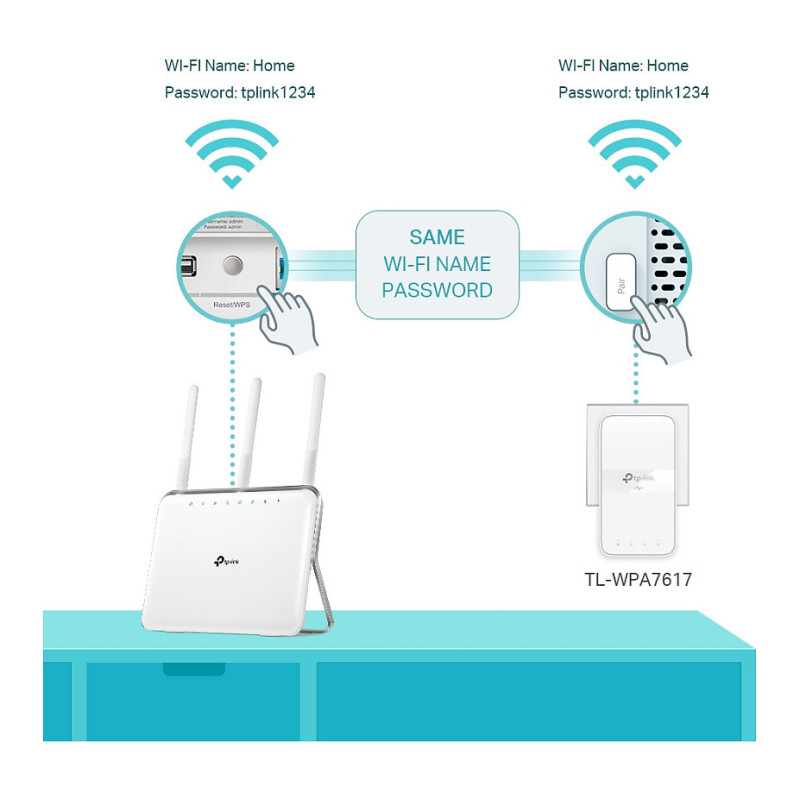

Configure at the touch of a button
Press the Wifi Clone button to copy the network name (SSID) and password from the router. Additionally, all changes to the Wi-Fi settings will be automatically applied throughout the entire Powerline network.
Manage Powerline via your smartphone
Manage the Powerline connection via your smartphone (Android, iOS) with the tpPLC app or download the new tpPLC utility to manage the Powerline network via your computer.
- View real-time Powerline speed
- LED control (can also be controlled with the LED on/off button)
- Guest network

Performance

Maximum data transfer rate: 1200 Mbit/s
Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

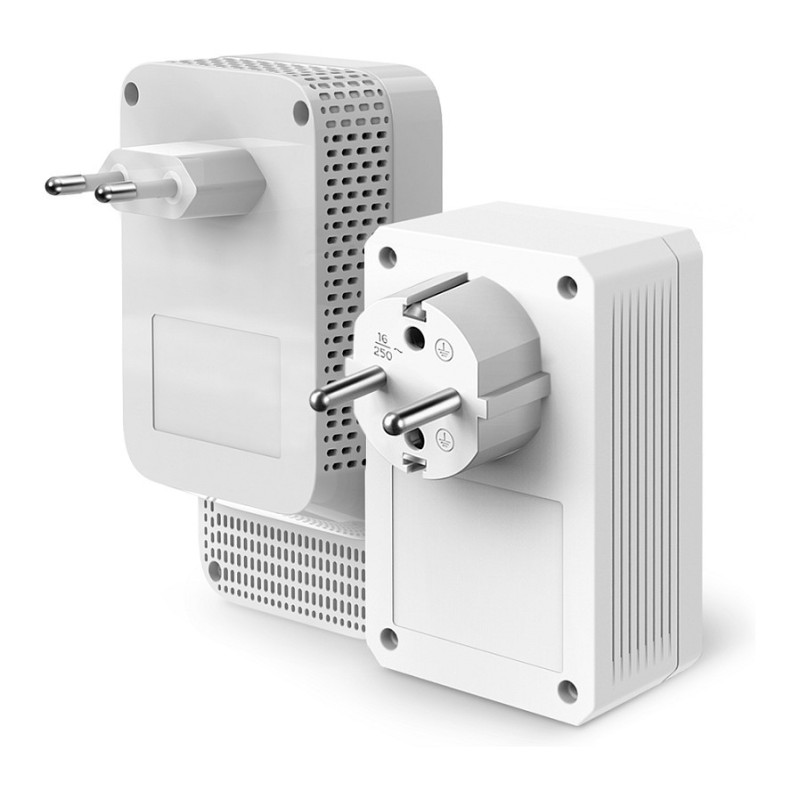

Power plug: Type E / F
Built-in power socket: Yes
PowerLine standard: HomePlug AV2
Modulation: OFDM
Security algorithms: 128-bit AES, WEP, WPA-PSK, WPA2-PSK
Maximum operating distance: 300 m
Encryption button: Yes
Plug and Play: Yes

Power

Power consumption (typical): 6.5 W

Design

Antenna type: Internal
LED indicators: Yes
Product colour: White
Certification: CE,RoHS

System requirements

Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Linux operating systems supported: Yes
Mac compatibility: Yes
Mac operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 69.5 mm
Depth: 35 mm
Height: 124.1 mm

Certificates

Compliance certificates: CE, RoHS

Packaging data

Package width: 230 mm
Package depth: 190 mm
Package height: 100 mm
Package weight: 670 g
Package type: Box

Packaging content

Quantity per pack: 2 pc(s)
Quick installation guide: Yes
Cables included: LAN (RJ-45)
