Switch, UBIQUITI, USW-24, Type L2, 24x10Base-T / 100Base-TX / 1000Base-T, 1xSFP, USW-24
Product reference:
2-810010071385
Switch, UBIQUITI, USW-24, Type L2, 24x10Base-T / 100Base-TX / 1000Base-T, 1xSFP, USW-24
Product reference:
2-810010071385
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
3 - 5
business days

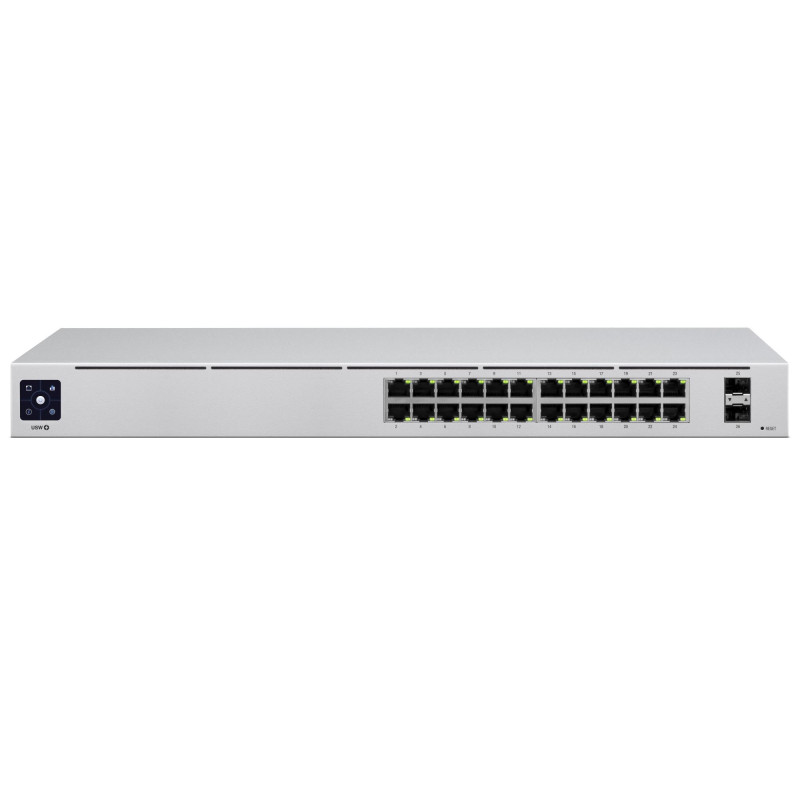

UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity
The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
- (24) Gigabit Ethernet Ports
- (2) Gigabit SFP Ports
- 1.3" color touchscreen for status information
- Managed with UniFi Network application
- 1U rackmountable (kit included)
| 10G support | No |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE, FCC, IC |
| Depth | 200 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Height | 43.7 mm |
| Model name | USW-24 |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
| Power connector | AC-in jack |
| Power consumption (typical) | 120 W |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Silver |
| Product Net Weight | 2.79 kg |
| Rack mounting | Yes |
| SFP module slots quantity | 2 |
| Shipping Box Depth | 54 cm |
| Shipping Box Height | 34 cm |
| Shipping Box Weight | 8.5 kg |
| Shipping Box Width | 26 cm |
| Stackable | Yes |
| Summary | Ubiquiti UniFi USW-24. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Rack mounting |
| Switch layer | L2 |
| Switch type | Managed |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.52 |
| Unit Box Width | 0.12 |
| Unit Calculated Volume | 0.02387 cubm |
| Unit Calculated Weight | 4.25 kg |
| Unit Depth | 52 cm |
| Unit Height | 31 cm |
| Unit Width | 12 cm |
| Units per Pallet | 18 |
| Units per Shipping Box | 2 |
| Vendor Homepage | https://dl.ubnt.com/ |
| Web-based management | Yes |
| Weight | 2700 g |
| Width | 442.4 mm |
