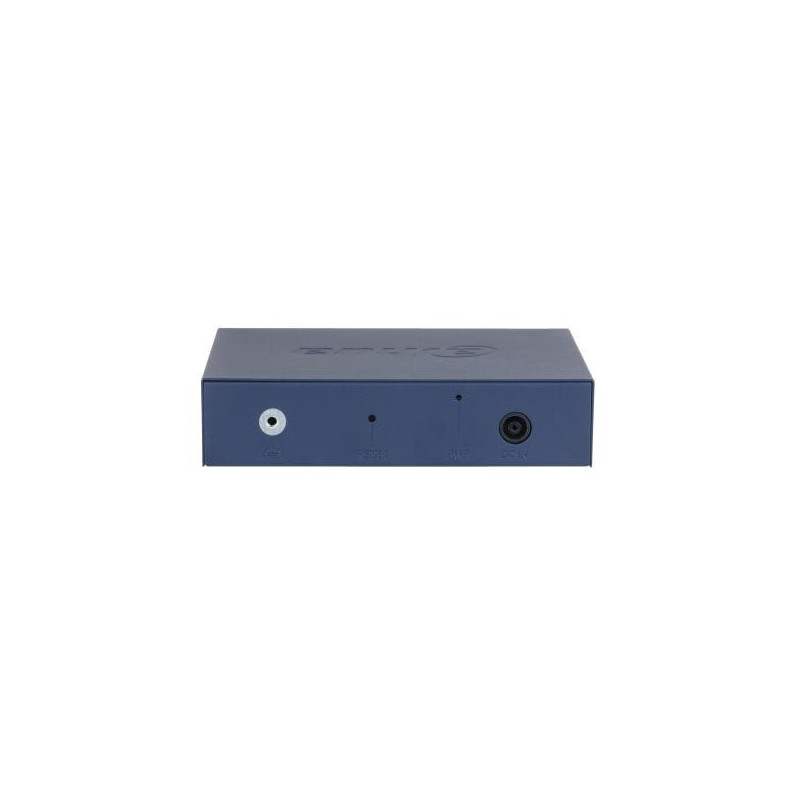

Switch, DAHUA, CS4005-4GT-36, Switch type Managed, Switch layer L2, Form factor Desktop / Wall-Mounting, 5xRJ-45 ports,
Product reference: 2-6939554922268
NET SWITCH 5PORT 4POE 1G / CS4005-4GT-36 DAHUA
NET SWITCH 5PORT 4POE 1G / CS4005-4GT-36 DAHUA
NET SWITCH 5PORT 4POE 1G / CS4005-4GT-36 DAHUA
NET SWITCH 5PORT 4POE 1G / CS4005-4GT-36 DAHUA

Switch, DAHUA, CS4005-4GT-36, Switch type Managed, Switch layer L2, Form factor Desktop / Wall-Mounting, 5xRJ-45 ports,

Product reference: 2-6939554922268
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
36,89 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

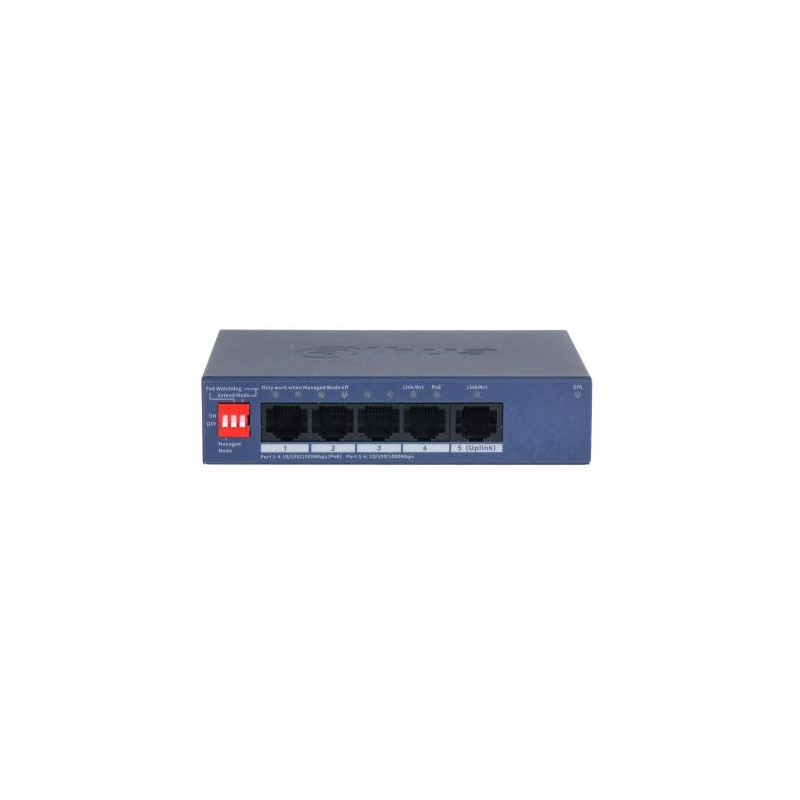

  • 4 × RJ45 Gigabit PoE ports, 1 × RJ45 Gigabit ports

  • 36 W total PoE budget, 802.3af/at on all PoE ports

  • DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE

  • Wide operating temperature ranging from -10 °C to 55 °C

  • Supports VLAN and loop protection

  • WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network

  • Easy config to auto detect and set up network and systems



Summary Dahua Technology CS4005-4GT-36. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 53 V. Power connector: DC-in jack. Power over Ethernet (PoE). Form factor: Desktop/Wall-Mounting
Vendor Homepage https://transmission.dahuasecurity.com/en/product-list/business/cloudmanagementsolution/networkswitch/cs4005-4gt-36
Unit Box Height 0.085
Unit Box Length 0.195
Unit Box Width 0.115
Cloud-managed Yes
Switch layer L2
Switch type Managed
System event log Yes
Web-based management Yes
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
Power connector DC-in jack
10G support No
Broadcast storm control Yes
Flow control support Yes
Networking standards IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Number of VLANs 32
Port mirroring Yes
VLAN support Yes
Forwarding rate 7.4 Mpps
Jumbo frames 9216
Jumbo frames support Yes
MAC address table 2000 entries
Packet buffer memory 4 MB
Switching capacity 10 Gbit/s
DHCP features DHCP client
Loop protection Yes
Form factor Desktop/Wall-Mounting
Housing material Metal
LED indicators Yes
Product colour Blue
Rack mounting No
Reset button Yes
Mean time between failures (MTBF) 2039146.92 h
DC input voltage 53 V
Input current 0.8 A
Power consumption (max) 42.4 W
Power source DC/PoE
Power supply included Yes
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Total Power over Ethernet (PoE) budget 36 W
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) -10 - 55 °C
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Depth 115 mm
Height 27 mm
Weight 200 g
Width 84 mm
Cables included AC
Quick start guide Yes
Package depth 195 mm
Package height 83 mm
Package weight 720 g
Package width 114 mm
Model name CS4005-4GT-36
Units per Shipping Box 1
Unit Calculated Volume 0.001906 cubm
Unit Calculated Weight 0.7 kg
