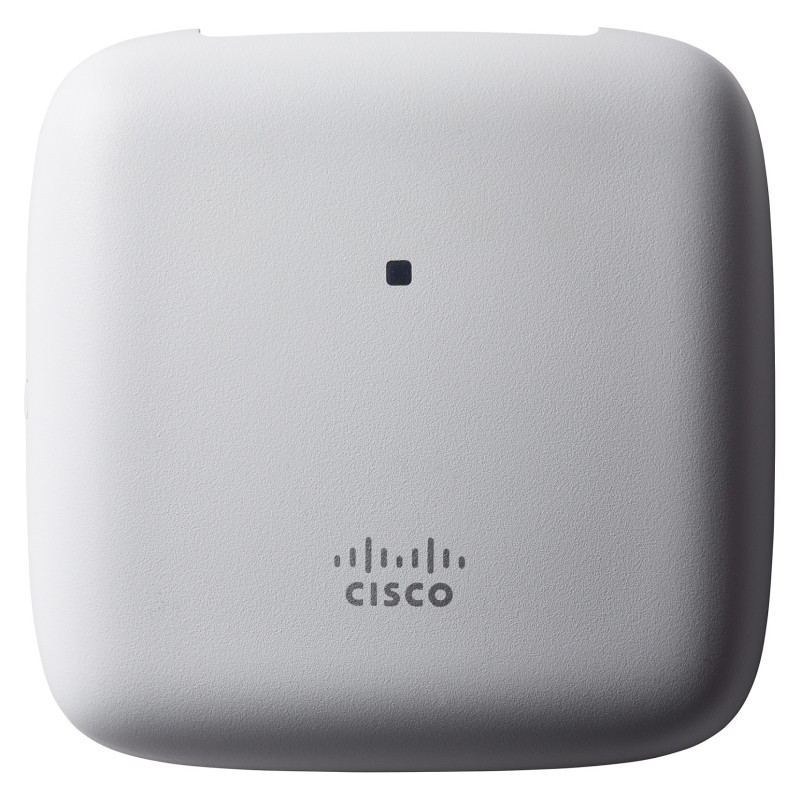

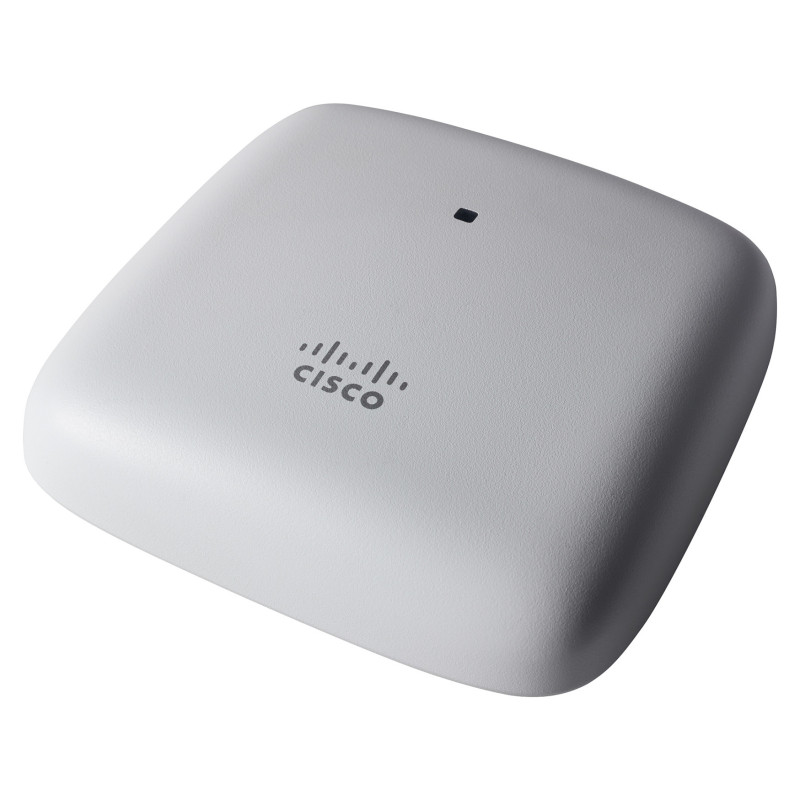

Cisco CBW140AC

Cisco Business 140AC 802.11ac 2x2 Wave 2 Access Point 1 GbE Port- Ceiling Mount, Limited Lifetime Protection (CBW140AC-E). 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: WPA, WPA2, WPA3, WPA2-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

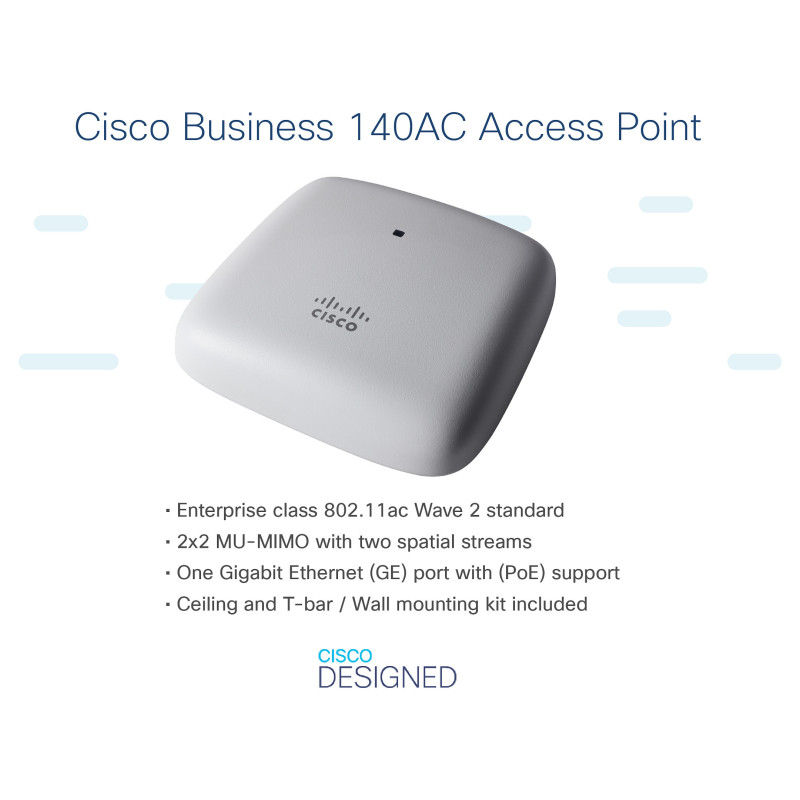

The Cisco Business 140AC Access Point delivers powerful multi-user, multiple input, multiple output (MU-MIMO) (2x2) wireless in a compact form factor. Ideal for indoor Wi-Fi coverage, the Cisco Business 140AC delivers a highly secure and reliable wireless connection for small business workplaces.
Compatible with Cisco Business 100 Series Mesh Extenders to rapidly expand your Wi-Fi network.

Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate: 867 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Maximum data transfer rate (5 GHz): 867 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz
Networking standards: IEEE 802.3af, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Number of users: 400 user(s)
Channels quantity: 29 channels
MIMO: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
VLAN support: Yes
Dynamic Frequency Selection (DFS): Yes
Transmitting power: 20 dBmW

Security

Security algorithms: WPA, WPA2, WPA3, WPA2-Enterprise
MAC address filtering: Yes
Remote Authentication Dial-In User Service (RADIUS): Yes

Ports interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Power over Ethernet (PoE): Yes
AC input voltage: 100 - 240 V
AC input frequency: 50 Hz
Power plug type: Type C

Design

Placement: Ceiling, Wall
Product colour: White
LED indicators: Yes
Market segment: Business

Antenna

Antenna type: Internal
Antenna features: Integrated antenna
Antenna gain level (max): 4 dBi

Performance

Built-in processor: Yes
Processor frequency: 710 MHz
Flash memory: 256 MB
Internal memory: 1000 MB

Technical details

Products per shipping (inner) case: 1 pc(s)

Certificates

Certification: UL 60950-1CAN/CSA-C22.2 No. 60950-1UL 2043IEC 60950-1EN 60950-1FCC 15.247, 15.407RSS-247 (Canada)EN 300.328, EN 301.893 (Europe)ARIB-STD 66 (Japan)ARIB-STD T71 (Japan)EMI (Class B)FCC Part 15.107 / 15.109ICES-003 (Canada)VCCI (Japan)EN 301.489-1 / -17 (Europe)EN 50385FCC OET-65CRSS-102

Weight dimensions

Width: 150.8 mm
Depth: 150.8 mm
Height: 33 mm
Weight: 373 g

Packaging data

Package width: 239.6 mm
Package depth: 220.6 mm
Package height: 69.8 mm
Package weight: 898 g

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes

Other features

Antenna: 2X2:2SS - 80 MHz

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -30 - 70 °C
Storage relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3000 m
Non-operating altitude: 0 - 4500 m

Logistics data

Harmonized System (HS) code: 85176990
Country of origin: China
Products per master (outer) case: 1 pc(s)
