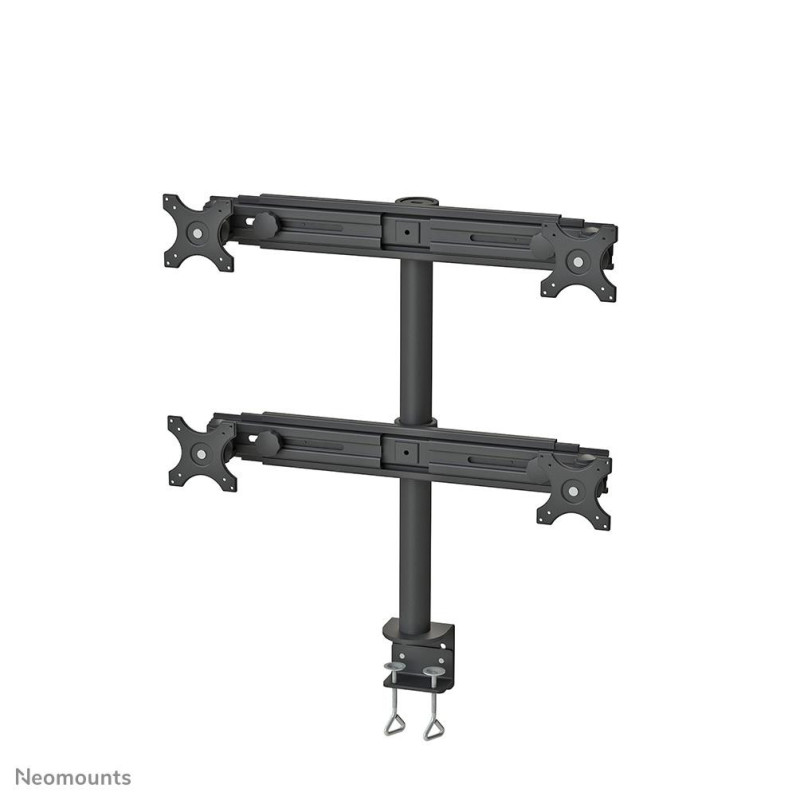

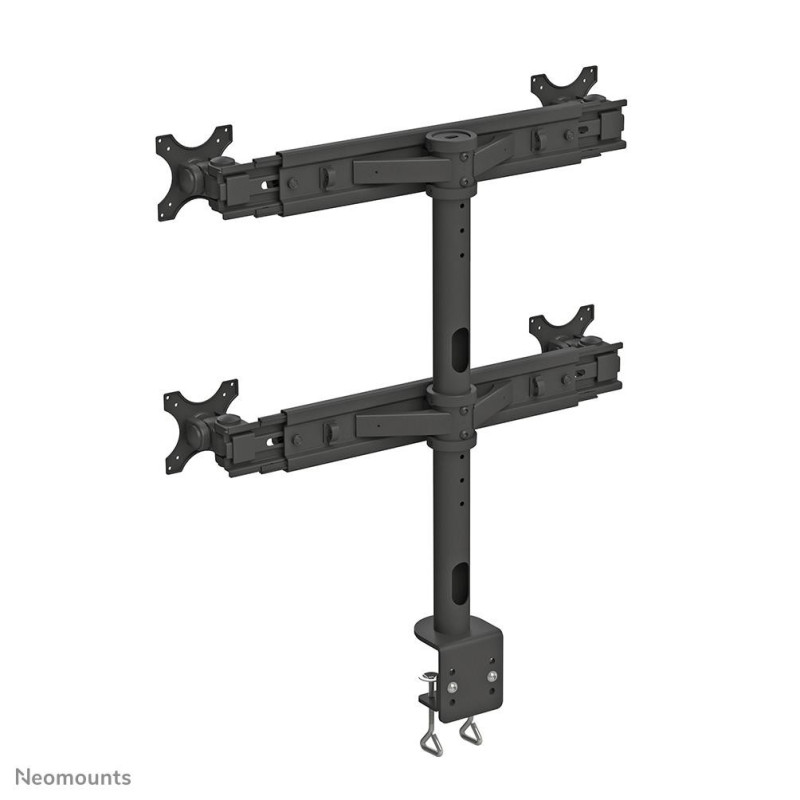

The Neomounts desk mount, model FPMA-D700D4 is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.

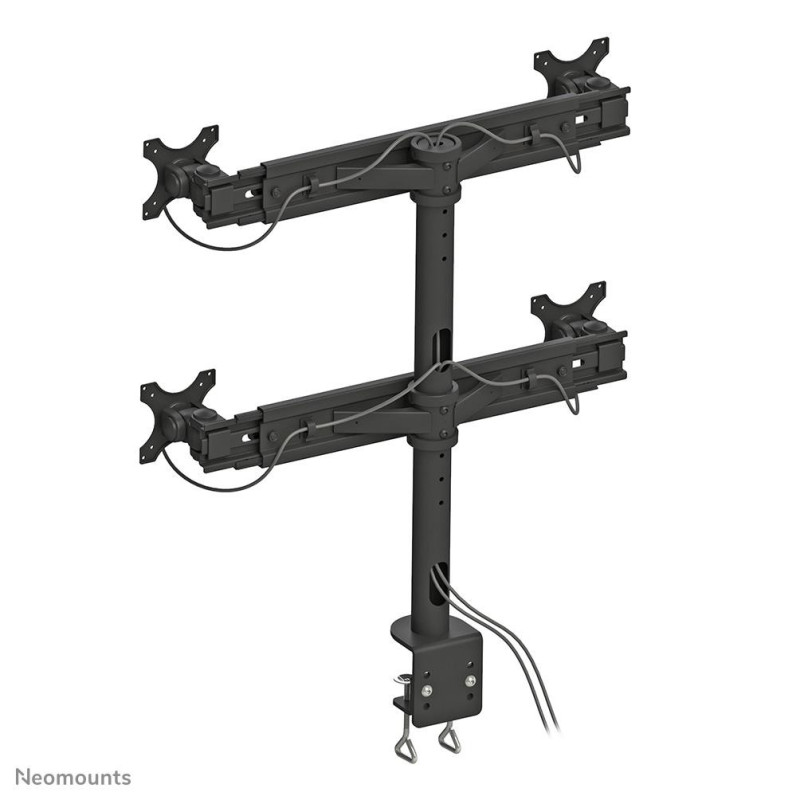

Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 70 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D700D4 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.

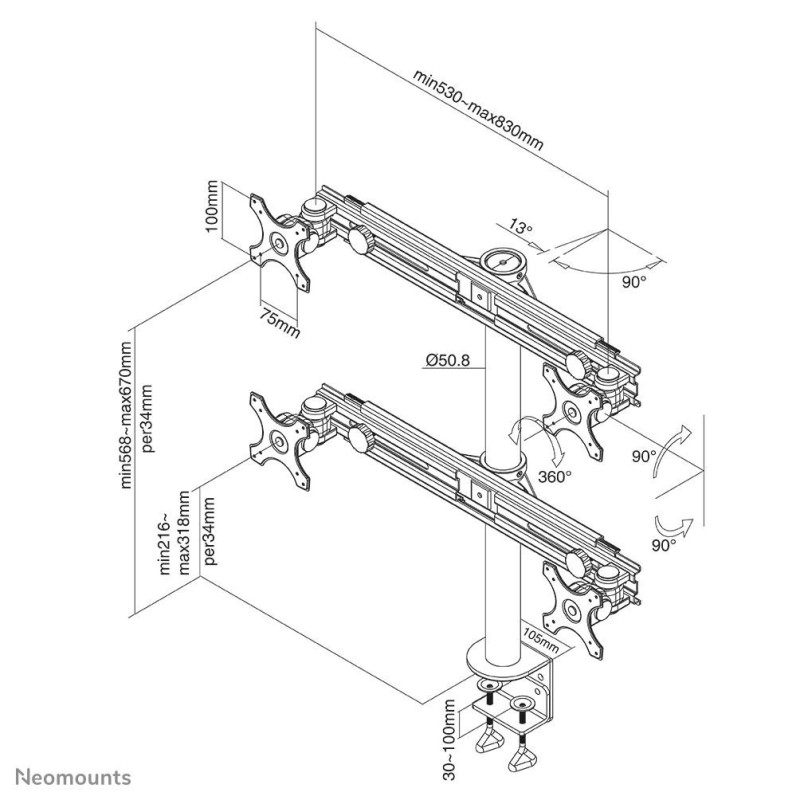

| Angle of rotation | 360 ° |
| Country of origin | Taiwan |
| Depth | 150 mm |
| Depth adjustment range | 0 - 150 mm |
| Desk thickness (max) | 90 mm |
| Harmonized System (HS) code | 7326909890 |
| Height | 700 mm |
| Height adjustment | Yes |
| Height adjustment range | 220 - 700 mm |
| Height adjustment type | Manual |
| Housing material | Steel |
| Master (outer) case gross weight | 14200 g |
| Master (outer) case height | 180 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case net weight | 12600 g |
| Master (outer) case width | 830 mm |
| Maximum screen size | 30 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 8 kg |
| Maximum weight capacity (per display) | 8 kg |
| Minimum screen size | 19 " |
| Minimum VESA mount | 75 x 75 mm |

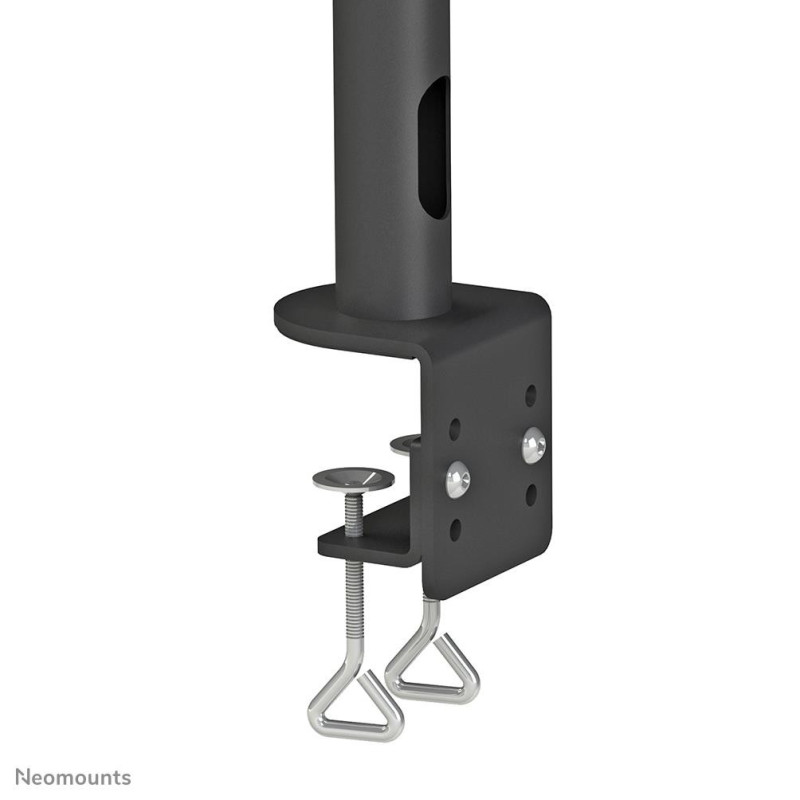

| Mounting | Clamp |
| Mounting type | Desk |
| Number of displays supported | 4 |
| Package depth | 555 mm |
| Package height | 180 mm |
| Package weight | 12600 g |
| Package width | 830 mm |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Product colour | Black |
| Product Net Weight | 10.5 kg |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 14 pc(s) |
| Rotating | Yes |
| Shipping Box Depth | 83 cm |
| Shipping Box Height | 16 cm |
| Shipping Box Weight | 14.2 kg |
| Shipping Box Width | 55.5 cm |
| Summary | Neomounts FPMA-D700D4 Monitor arm 19-30". Mounting: Clamp, Maximum weight capacity: 8 kg, Minimum screen size: 48.3 cm (19"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 180°, Tilt angle range: 0 - 180°. Product colour: Black |
| Swivel angle | 180 ° |
| Swivel angle range | 0 - 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180 ° |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.83 |
| Unit Box Width | 0.555 |
| Unit Calculated Volume | 0.0737 cubm |
| Unit Calculated Weight | 14.2 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D700D4 |
| Weight | 13930 g |
| Width | 830 mm |
| Width adjustment range | 520 - 830 mm |
