Motherboard - ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 micro ATX
Product reference:
14-4711387844625
The ASUS PRIME H810M-A-CSM motherboard supports Intel Core Ultra processors with the LGA 1851 socket and has a maximum memory capacity of 128 GB DDR5-SDRAM. It offers dual-channel memory, multiple USB ports, and support for M.2 and SATA III storage devices.
Motherboard - ASUS PRIME H810M-A-CSM Intel H810 LGA 1851 micro ATX
Product reference:
14-4711387844625
The ASUS PRIME H810M-A-CSM motherboard supports Intel Core Ultra processors with the LGA 1851 socket and has a maximum memory capacity of 128 GB DDR5-SDRAM. It offers dual-channel memory, multiple USB ports, and support for M.2 and SATA III storage devices.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
9 - 13
business days

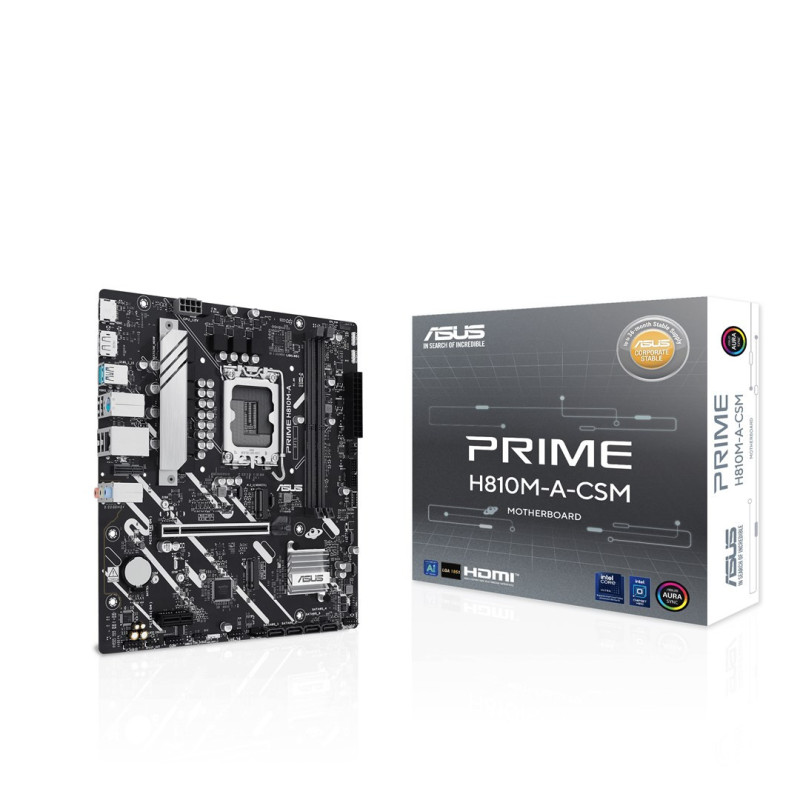

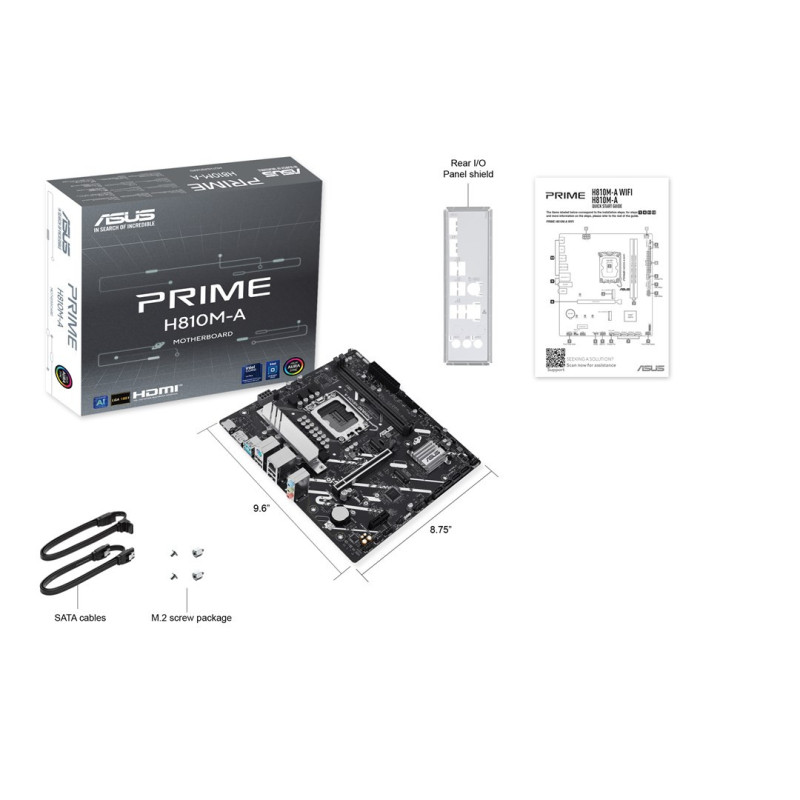

ASUS PRIME H810M-A-CSM
It supports Intel Core Ultra processors with the LGA 1851 socket and has a maximum memory capacity of up to 128 GB using DDR5-SDRAM. Key features include dual-channel memory, multiple USB ports, and support for M.2 and SATA III storage devices.
- Supports Intel Core Ultra processors with LGA 1851 socket
- Maximum internal memory capacity 128 GB with dual-channel DDR5-SDRAM support
- Equipped with 4 SATA III connectors, supporting up to 6 storage devices
- Includes 2 USB 3.2 Gen 2 Type-A ports and HDMI 2.1 for versatile connectivity
Processor | |
|---|---|
| Supported processor sockets | LGA 1851 |
| Compatible processor series | Intel Core Ultra (2 series) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Supported Windows operating systems | Windows 10 x64, Windows 11 |
| Power supply type | ATX |
| Motherboard chipset family | Intel |
| Motherboard chip | Intel H810 |
| Motherboard format type | micro ATX |
| Product color | Black |
| Audio output channels | 7.1 channels |
Memory | |
| Maximum internal memory | 128GB |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 2 |
| Memory channels | Dual channel |
| Supported memory frequency (max) | 6400MHz |
Weight and dimensions | |
| Width | 244 mm |
| Height | 37 mm |
| Depth | 222 mm |
Network | |
| Wake-on-LAN ready | Yes |
| LAN controller | Intel I219V |
| Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
| Number of RGB LED pin connectors | 3 |
| Number of CPU cooler connections | 1 |
| Number of SATA III connectors | 4 |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| Supported storage device types | HDD SSD |
| Number of supported storage devices | 6 |

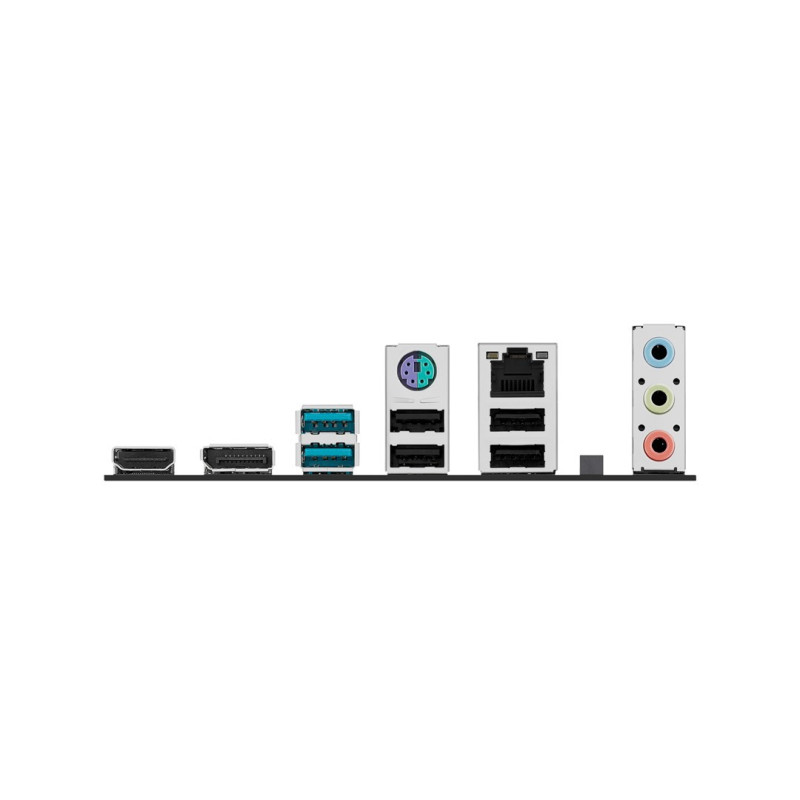

Rear panel I/O ports | |
| Number of USB 3.2 Gen 2 Type-A ports | 2 |
| Number of USB 2.0 ports | 4 |
| HDMI version | 2.1 |
Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 1 |
Other features | |
| Weight | 534 grams |
