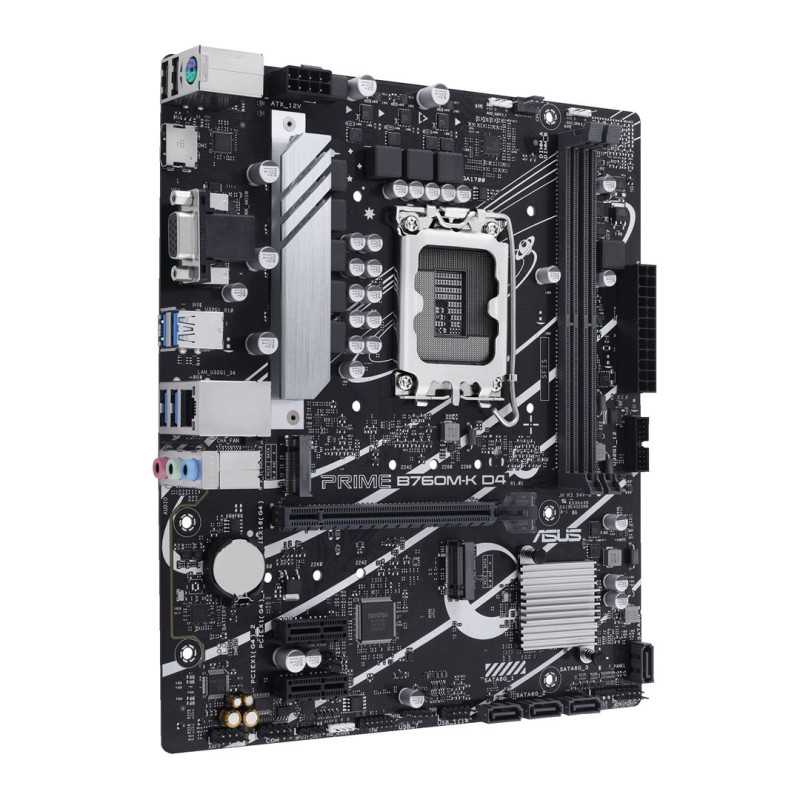

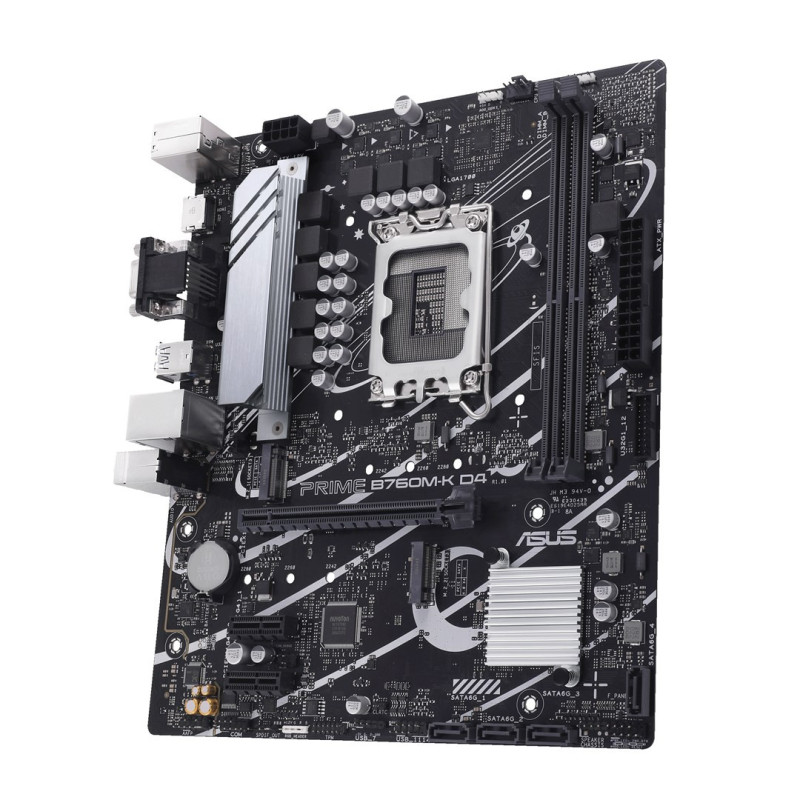

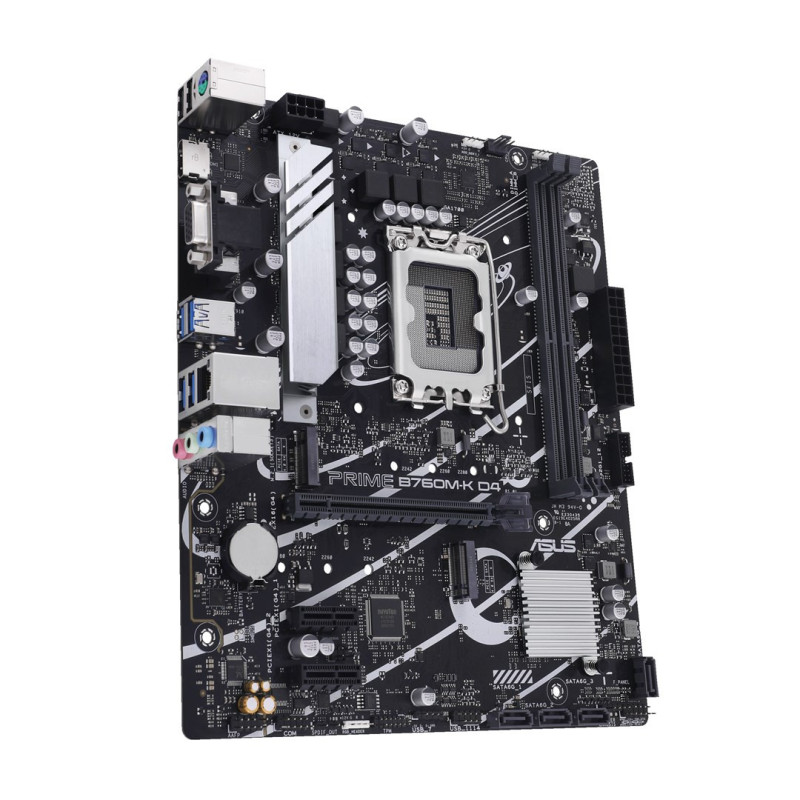

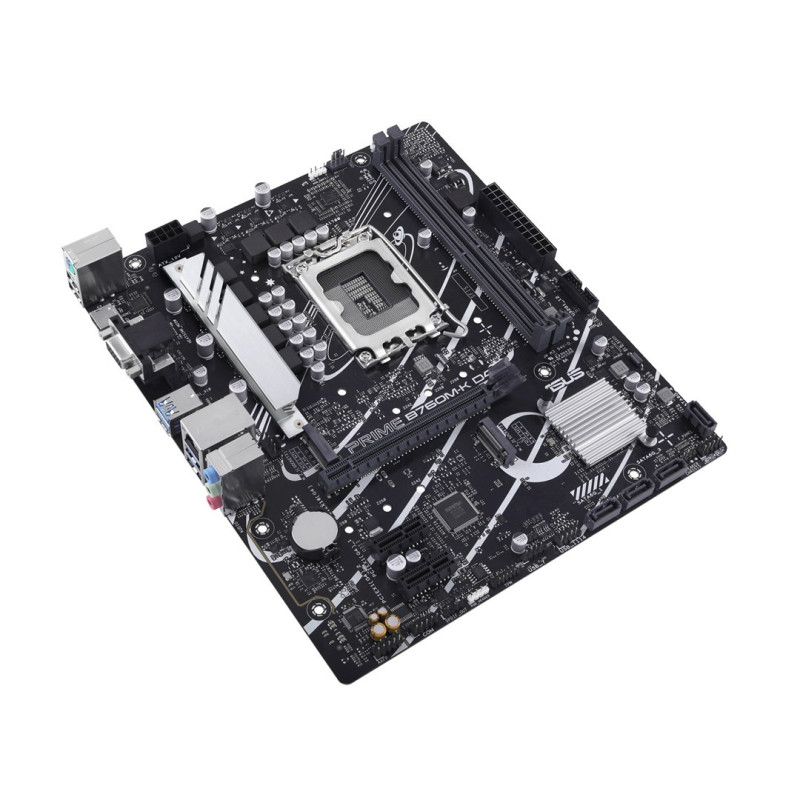

ASUS PRIME B760M-K
Micro ATX motherboard compatible with Intel 12th and 13th generation processors with LGA 1700 socket.
- Compatible with Intel® Core™ i3, i5, i7, i9, Celeron®, Pentium® Gold processors
- Maximum internal memory size - 64 GB, dual-channel DDR4-SDRAM supported
- 7.1 audio output channels for an immersive audio experience
- 2.5 Gigabit Ethernet connection for high network speeds
- Multiple USB ports and RGB LED pin header for customization
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor models | Intel® Core™ i3, i5, i7, i9, Celeron®, Pentium® Gold |
| Processor manufacturer | Intel |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard Chipset Family | Intel |
| Motherboard format type | micro ATX |
| Motherboard chip | Intel B760 |
| Supported Windows operating systems | Windows 10 x64, Windows 11 |
| Audio output channels | 7.1 channels |
Memory | |
| Supported memory clock speeds | 2133MHz to 5333MHz |
| Maximum internal memory size | 64GB |
| Memory slot type | DIMMs |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual channel |
| Unbuffered memory | Yes |
Weight and dimensions | |
| Depth | 211 mm |
| Width | 244 mm |
| Height | 36 mm |
Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| TPM connector | Yes |
| CPU cooler connector | Yes |
| 12V power connector | Yes |
| USB 2.0 ports | 2 |
| ATX power connector (24-pin) | Yes |
| S/PDIF output connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| Number of chassis cooler connections | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | Yes |
