Motherboard - ASUS Prime B760-Plus Intel B760 LGA 1700 ATX
Product reference:
14-4711387102985
Intel Core i9-12900KF processor and Z690 chipset with up to 850W ATX power supply and 24-pin connector. Features include 3 M.2 slots, 2 USB 3.2 Gen 2 ports, 1 HDMI 2.1 port, and 4 SATA III connectors.
Motherboard - ASUS Prime B760-Plus Intel B760 LGA 1700 ATX
Product reference:
14-4711387102985
Intel Core i9-12900KF processor and Z690 chipset with up to 850W ATX power supply and 24-pin connector. Features include 3 M.2 slots, 2 USB 3.2 Gen 2 ports, 1 HDMI 2.1 port, and 4 SATA III connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

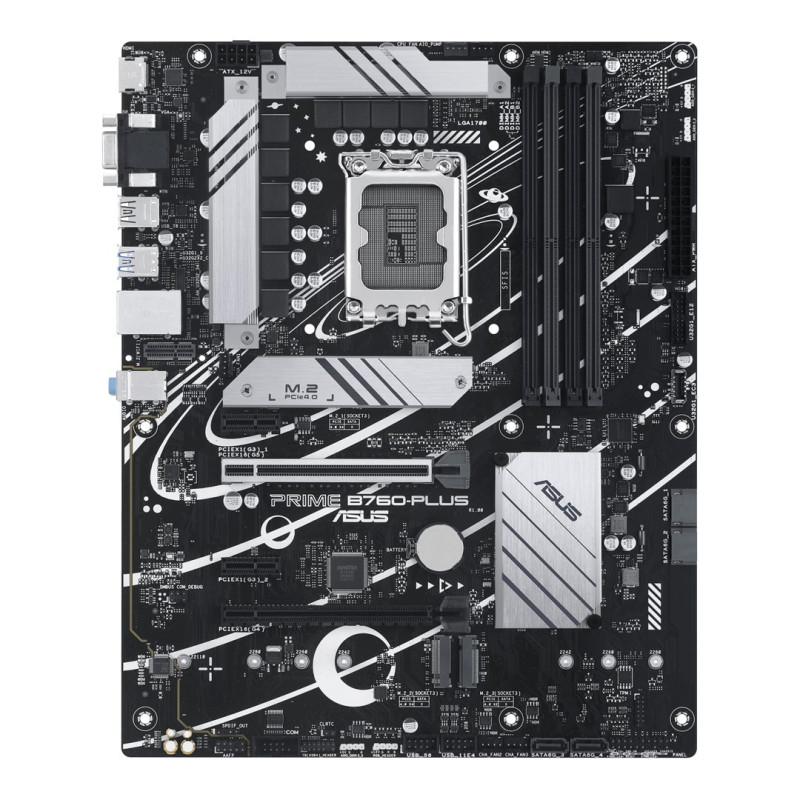

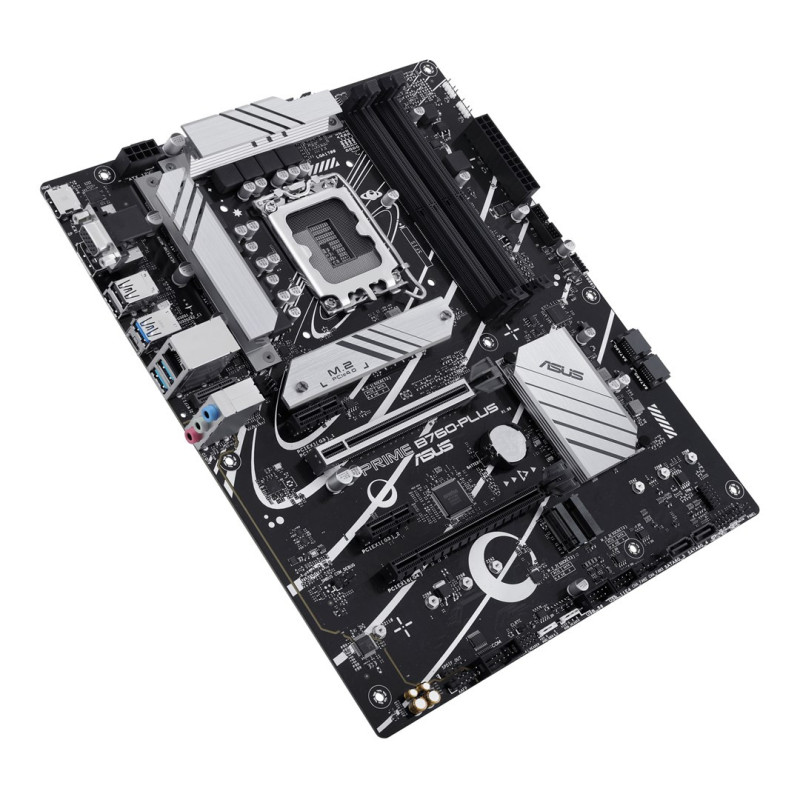

ASUS Prime B760-plus ATX
The ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX motherboard features the B760 chipset, supporting the latest Intel Core i9-12900KF processor and up to 192GB of DDR5 memory.
Main features
- Supports Intel Core i9-12900KF processor
- 4 SATA III connectors and 1 COM connector
- UEFI AMI BIOS with TPM support
- 3 M.2 (M) slots, 2 PCI Express x1 (Gen 3.x) slots and 2 PCI Express x16 (Gen 5.x) slots
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Compatible processor models | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Celeron® |
| Processor manufacturer | Intel |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard chipset | Intel B760 |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Motherboard format type | ATX |
| Power supply type | ATX |
| Motherboard chipset family | Intel |
Memory | |
| Supported memory clock speeds | 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz |
| Number of memory slots | 4 |
| Unloaded memory | Yes |
| Memory slot type | DIMMs |
| Maximum internal memory | 192GB |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channels |
Weight and dimensions | |
| Height | 36 mm |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
Internal I/O | |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| ATX power connector (24-pin) | Yes |
| Thunderbolt connectors | 1 |
| Front panel audio connector | Yes |
| RGB LED pin connector | Yes |
| 12V power connector | Yes |
| S/PDIF output connector | Yes |
| Number of chassis fan connectors | 3 |
| Front panel connector | Yes |
| USB 2.0 ports | 2 |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package width | 328 mm |
| Package weight | 1.2 kg |
| Package depth | 266 mm |
| Package height | 53 mm |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| Supported storage device types | HDD SSD |
| RAID support | Yes |
| Supported memory device interfaces | M.2, SATA III |
| Number of supported storage devices | 7 |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |

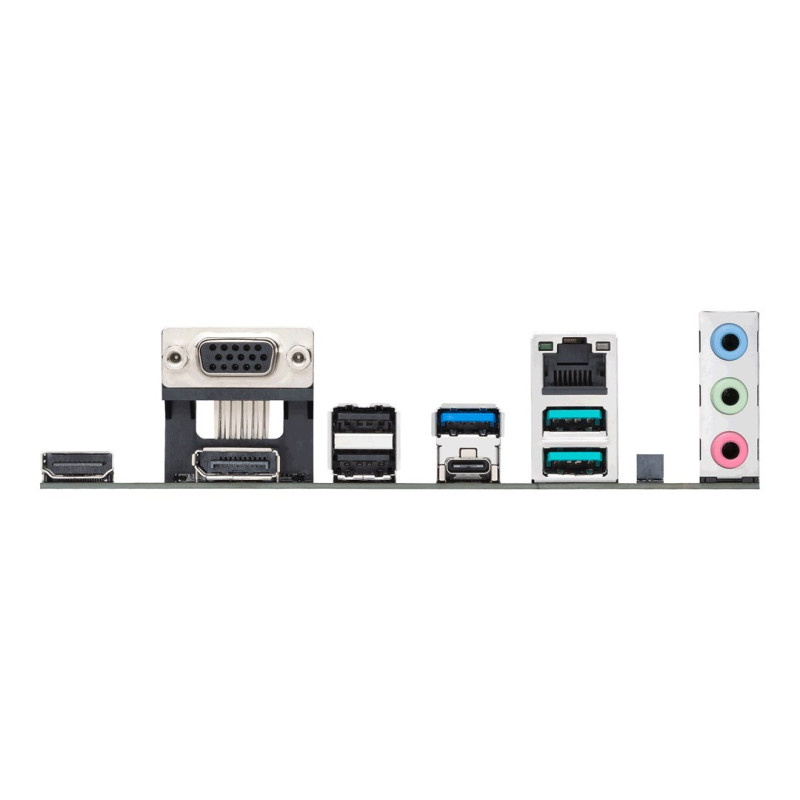

Rear panel I/O connectors | |
| Number of VGA (D-Sub) connectors | 1 |
| DisplayPort version | 1.4 |
| Line-in | Yes |
| Number of DisplayPort connectors | 1 |
| Number of HDMI ports | 1 |
| HDMI version | 2.1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 1 |
| Headphone outputs | 1 |
Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Other features | |
| Weight | 760g |
