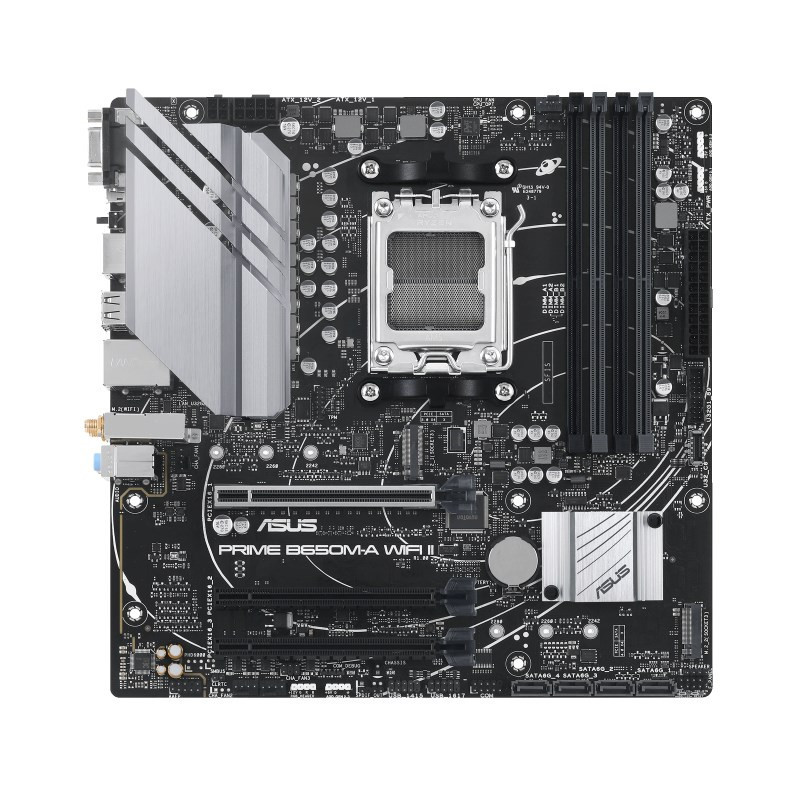

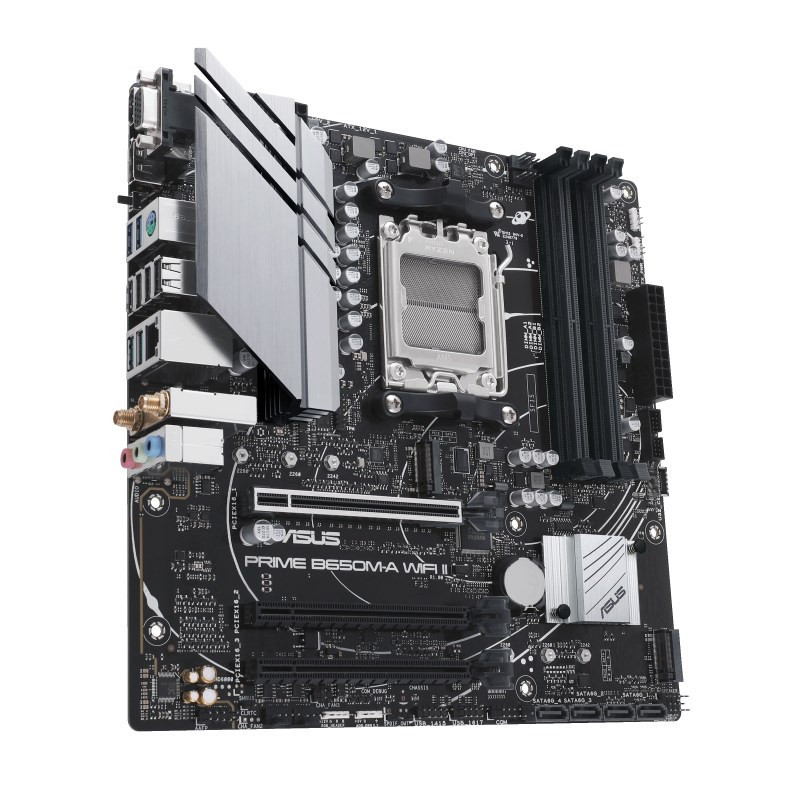

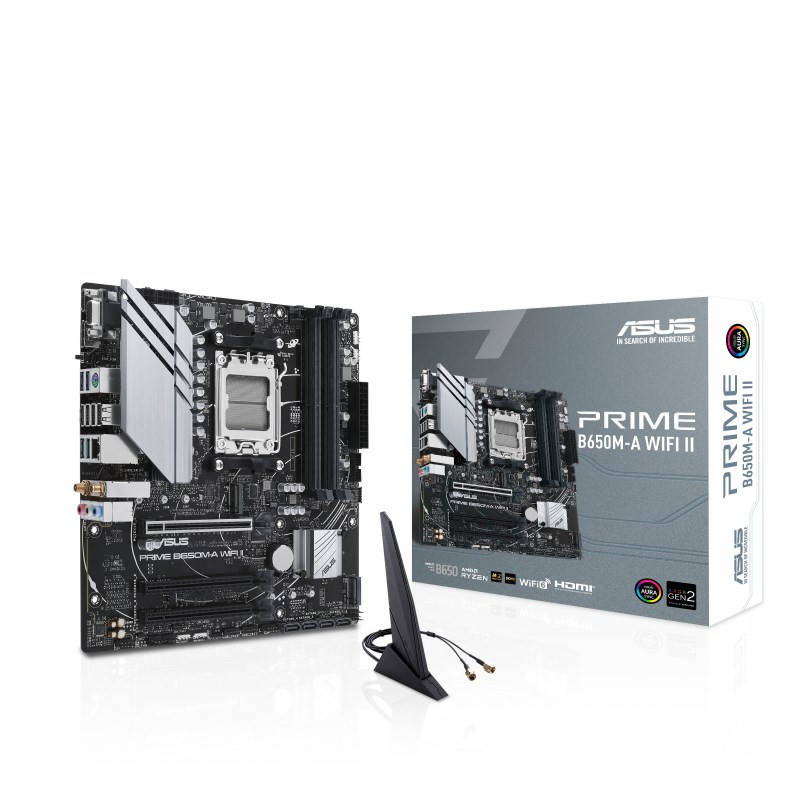

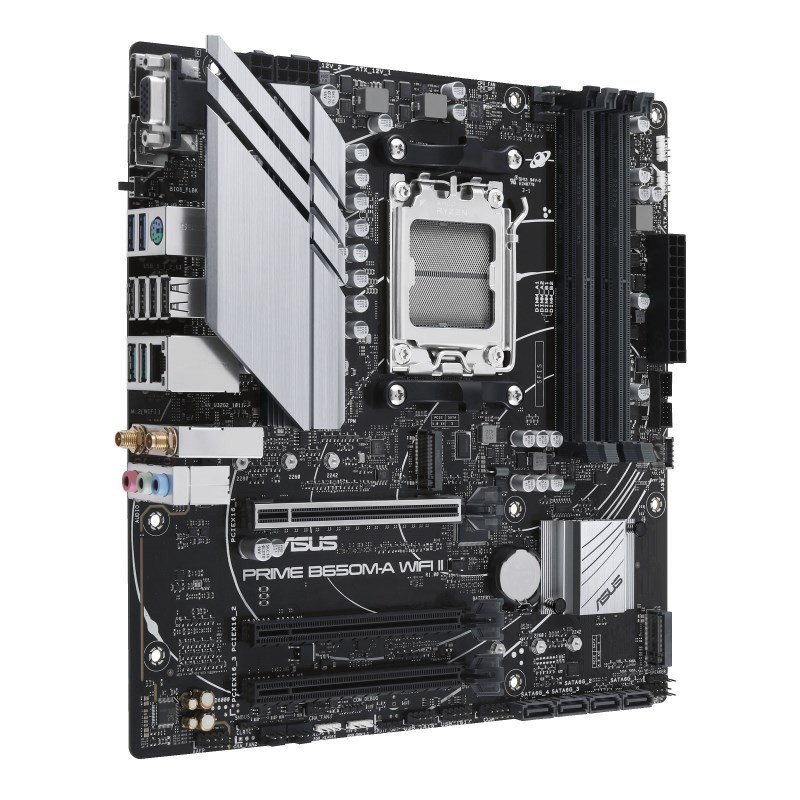

Motherboard - ASUS Prime B650M-A WiFi II AMD B650 AM5 Micro ATX
Product reference:
14-4711387034934
16 GB DDR5 RAM, 10 hours of battery life, Thunderbolt 4 ports, NVIDIA RTX 3070 graphics card. AMD Ryzen processor supported, 128 GB DDR5 memory capacity, PCIe 4.0 x16 slot for graphics cards.
Motherboard - ASUS Prime B650M-A WiFi II AMD B650 AM5 Micro ATX
Product reference:
14-4711387034934
16 GB DDR5 RAM, 10 hours of battery life, Thunderbolt 4 ports, NVIDIA RTX 3070 graphics card. AMD Ryzen processor supported, 128 GB DDR5 memory capacity, PCIe 4.0 x16 slot for graphics cards.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days
ASUS Prime B650M-A Wi-Fi II AM5 Micro ATX
This motherboard supports AMD Ryzen 5000 and 7000 series processors and features a micro ATX form factor design. It provides reliable power delivery with an 18+2 phase design that supports up to 320W of CPU power.
Main features
- CPU Support: Supports AMD Ryzen 5000 and 7000 series processors
- RAM support: up to 128GB DDR5 memory with speeds up to 6400MT/s
- Memory: 3 PCIe 4.0 x16 slots, M.2, SATA and PCIe NVMe memory support
- Network: One 2.5 Gigabit Ethernet port (RJ-45)
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard chip | AMD B650 |
| Supported Windows operating systems | Windows 11, Windows 10 |
| Motherboard format type | micro ATX |
| Motherboard chip family | AMD |
| Power supply type | ATX |
Memory | |
| Supported memory frequencies | 6400, 5800, 5400, 5200, 6000, 5600, 6200, 5000, 4800 MHz |
| Maximum internal memory | 128GB |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Memory channels | Dual channels |
| ECC compatibility | ECC Non-ECC |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 244 mm |
Network | |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11g |
| Bluetooth version | 5.2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| S/PDIF output connector | Yes |
| USB 2.0 ports | 2 |
| Number of SATA connectors | 4 |
| EPS power connector (8-pin) | Yes |
| ATX power connector (24-pin) | Yes |
| Peripheral (Molex) power connector (4-pin) | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Front panel connector | Yes |
| CPU cooler connector | Yes |
| Number of chassis cooler connections | 3 |
| Power cooler connector | Yes |
| Number of COM ports | 1 |
| 12V power connector | Yes |
| Audio connector | Yes |
| RGB LED pin connector | Yes |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| Supported memory interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
| Supported memory types | HDD SSD |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Number of supported storage devices | 2 |
| Number of HDDs supported | 4 |
Rear panel I/O ports | |
| Number of DisplayPorts | 1 |
| Number of USB 2.0 ports | 4 |
| USB connection type | USB Type-A |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Microphone input | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of VGA (D-Sub) ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Headphone outputs | 1 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 3 |
