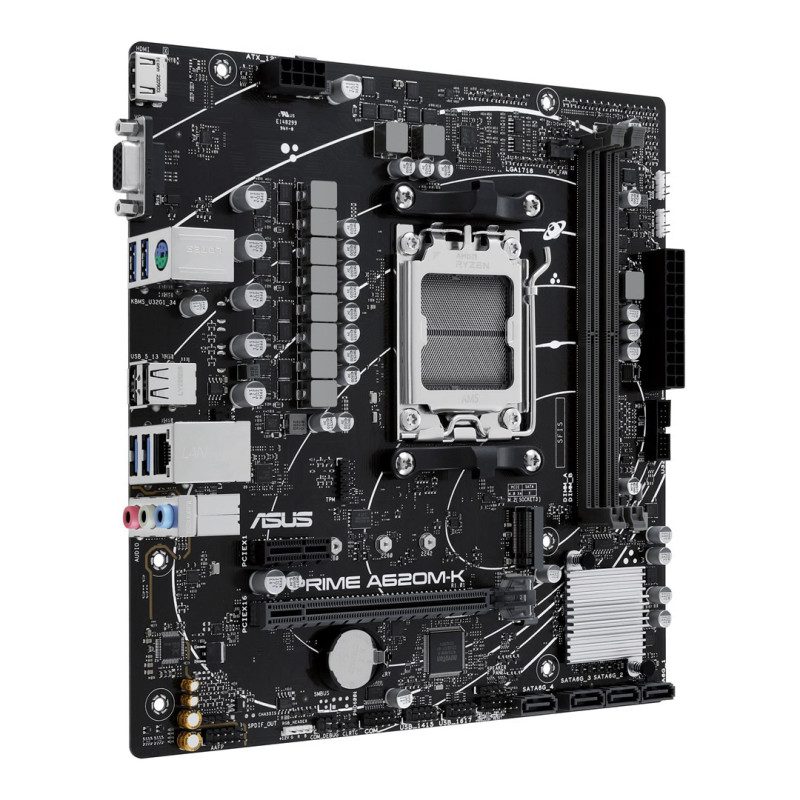

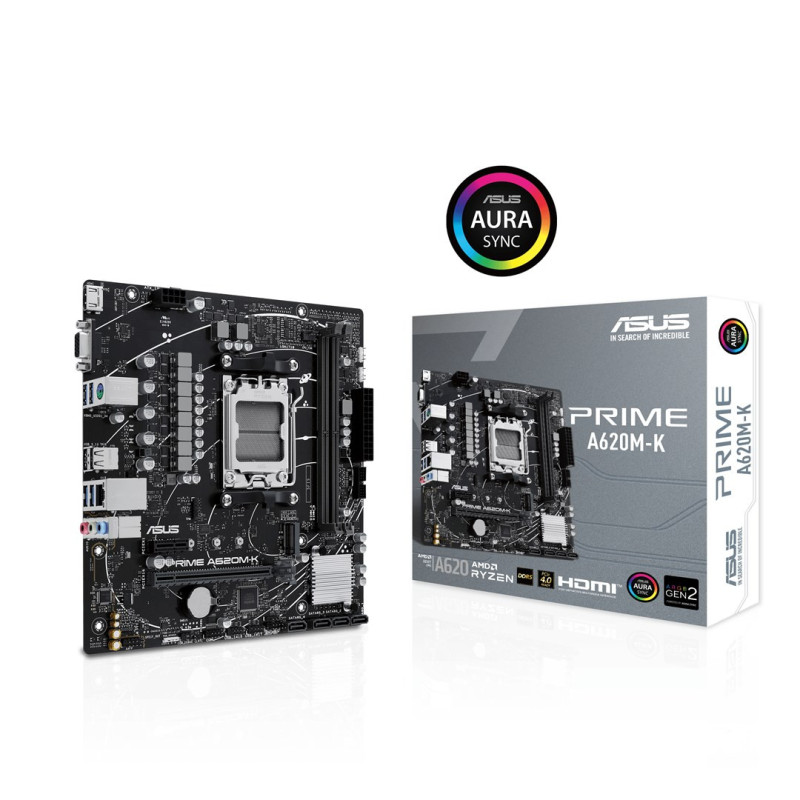

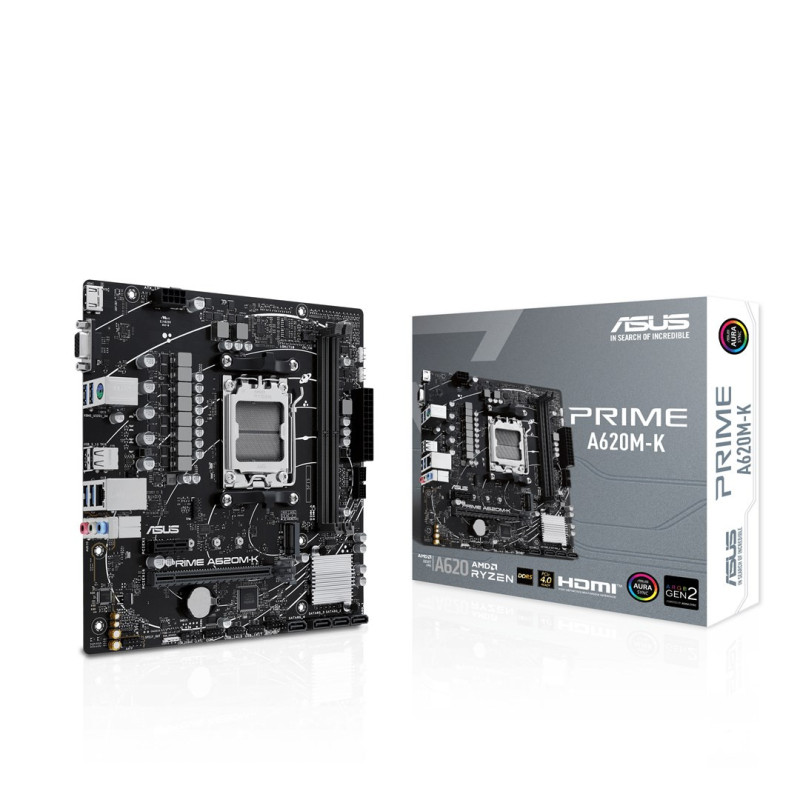

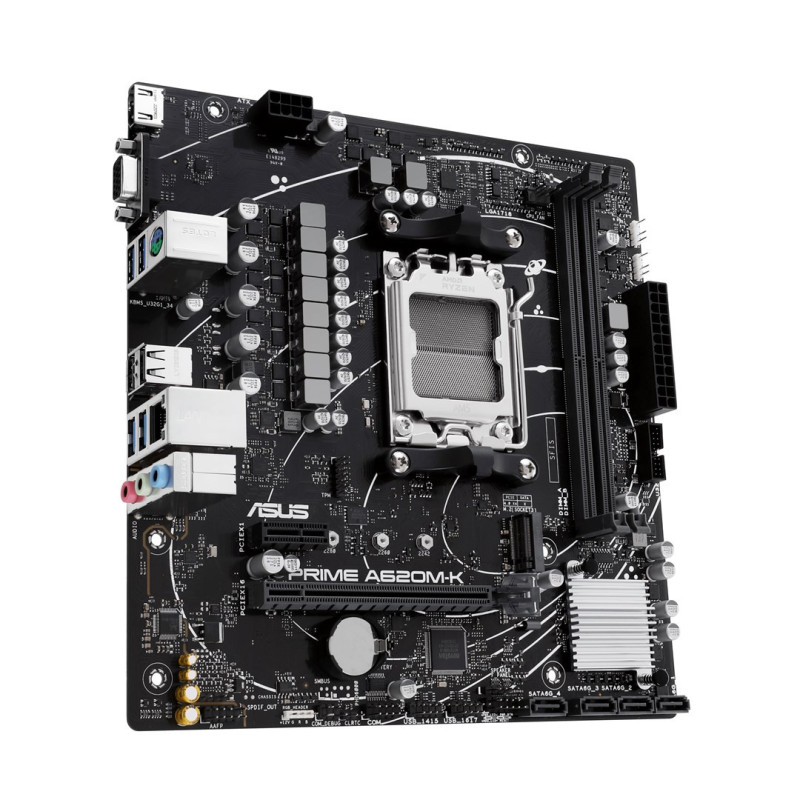

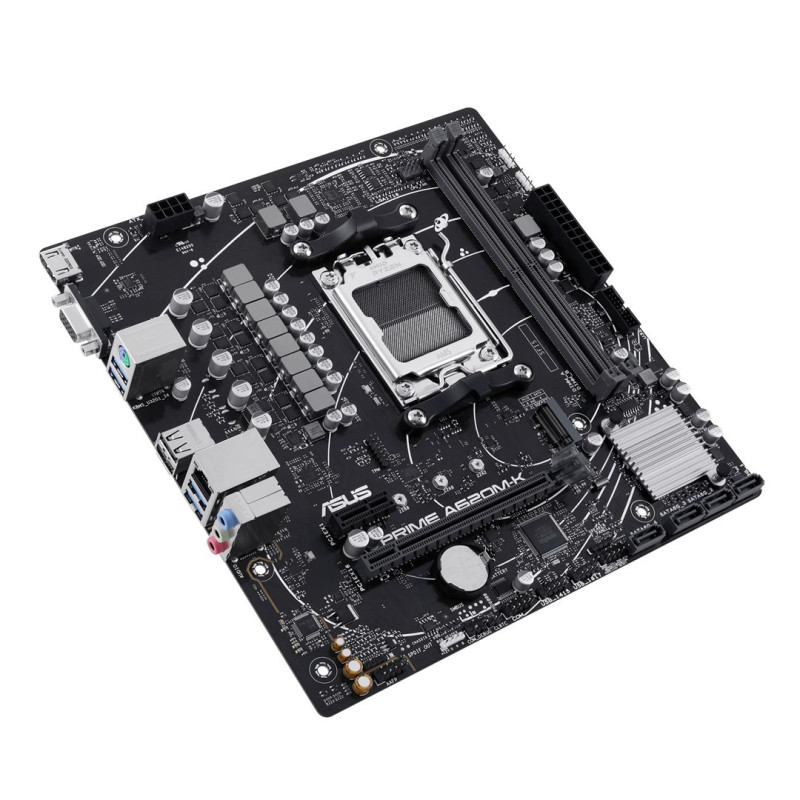

Motherboard - ASUS Prime A620M-K AMD A620 AM5 Micro ATX
Product reference:
14-4711387242087
ASUS PRIME A620M-K - micro ATX motherboard supporting AM5 processors and up to 96 GB DDR5 memory, ensuring excellent performance with a variety of I/O connectors.
Motherboard - ASUS Prime A620M-K AMD A620 AM5 Micro ATX
Product reference:
14-4711387242087
ASUS PRIME A620M-K - micro ATX motherboard supporting AM5 processors and up to 96 GB DDR5 memory, ensuring excellent performance with a variety of I/O connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Motherboard - ASUS Prime A620m-k Am5 Micro Atx
This motherboard is designed for AMD Ryzen 7000 series processors, has a micro ATX form factor and AMD A620 chipset. It supports up to 96 GB of DDR5-SDRAM memory and has two dual-channel memory slots.
Main features
- AM5 processor socket support
- Dual-channel DDR5-SDRAM memory, up to 96 GB maximum internal memory
- 7.1 channel audio output
- Fast Ethernet and Gigabit Ethernet LAN connection
- UEFI AMI BIOS
Processor | |
|---|---|
| Processor socket | AM5 socket |
| Compatible processor series | AMD Ryzen 7000 series |
| Processor manufacturer | AMD |
| Supported processor sockets | AM5 socket |
Features | |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
| Motherboard format type | micro ATX |
| Motherboard chip | AMD A620 |
| Audio output channels | 7.1 channels |
| Motherboard Chipset Family | AMD |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channel |
| Number of memory slots | 2 |
| Supported memory frequencies | 5200, 4800, 5000, 5800, 5400, 5600, 6000, 6400 MHz, 6200 |
| Maximum internal memory | 96GB |
| Unbuffered memory | Yes |
Weight and dimensions | |
| Depth | 221 mm |
| Width | 226 mm |
Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Internal I/O | |
| TPM connector | Yes |
| 12V power connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| CPU cooler connector | Yes |
| S/PDIF output connector | Yes |
| Number of chassis cooler connections | 1 |
| Number of USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| ATX power connector (24-pin) | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package depth | 270mm |
| Package height | 51.5 mm |
| Package weight | 920g |
| Package width | 260mm |
Memory controllers | |
| Number of HDDs supported | 4 |
| Number of supported storage devices | 5 |
| Supported storage device interfaces | M.2, SATA III |
| Supported storage device types | HDDs and SSDs |
Rear panel I/O connectors | |
| Number of HDMI ports | 1 |
| Number of PS/2 ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 4 |
| Number of VGA (D-Sub) connectors | 1 |
| Ethernet LAN (RJ-45) connectors | 1 |
| Number of USB 2.0 ports | 2 |
Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
