Maxus Deliver 9 10/2020-2025 rear view camera brake light

Application:

• Maxus Deliver 9 (SV63C) 10/2020 - 2025

• Maxus eDeliver 9 (SV63C) 10/2020 - 2025

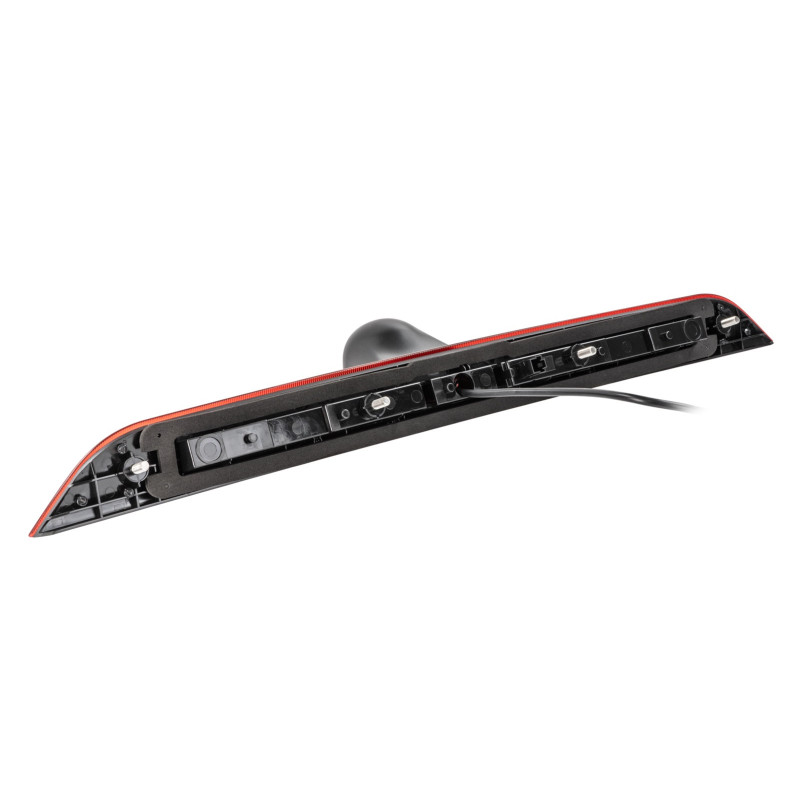

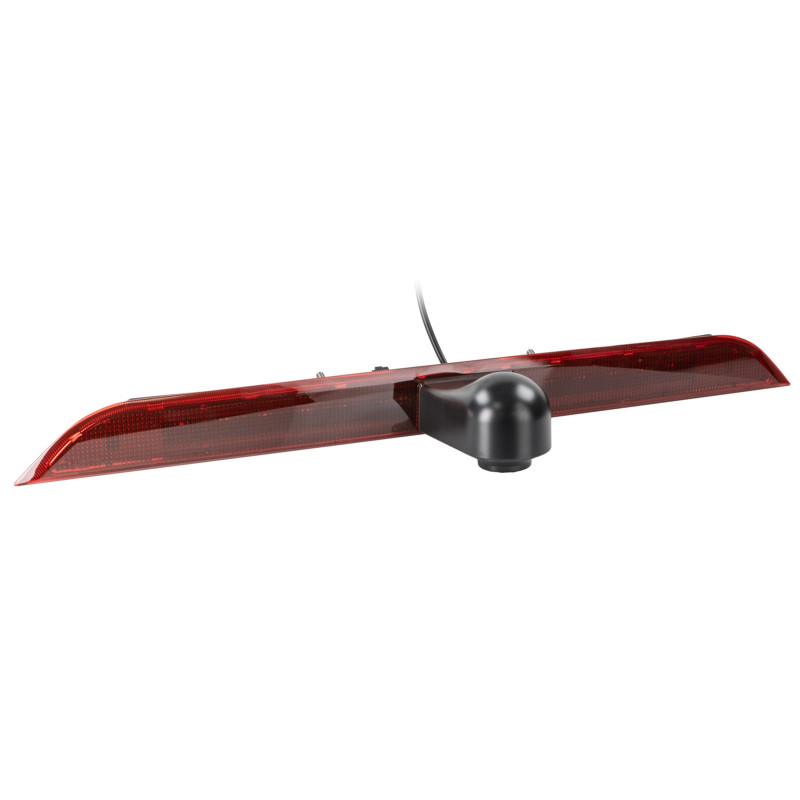

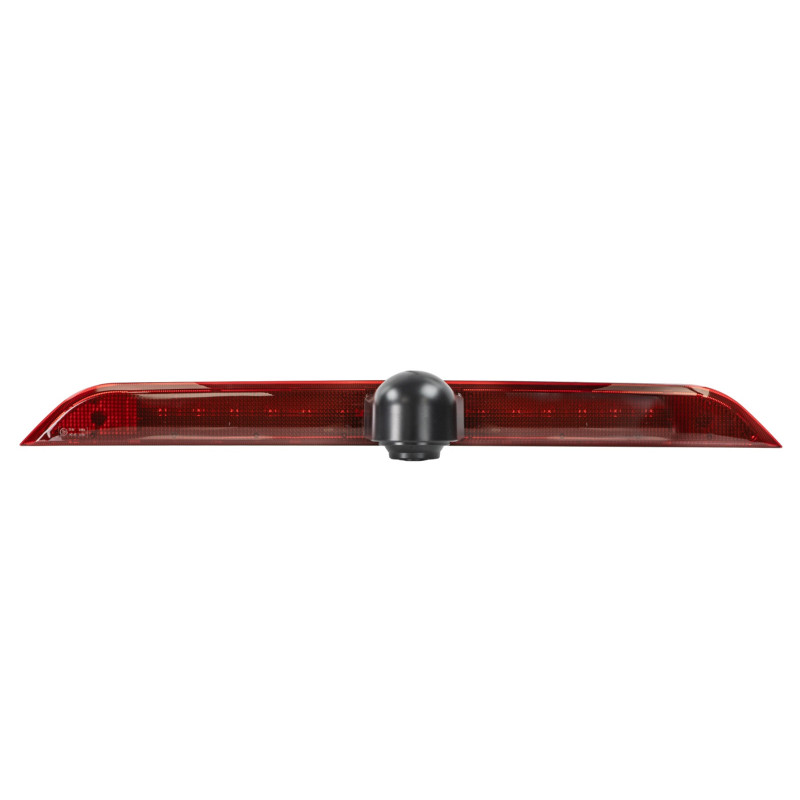

The rear view camera is designed forreplacing the original third brake light.

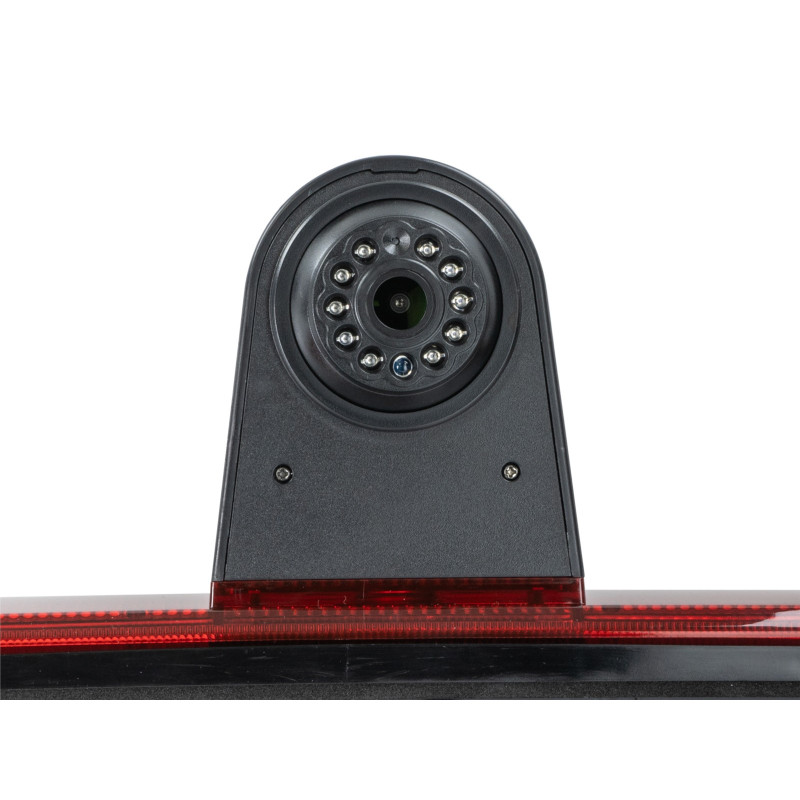

Equipped withleading lines,night vision functionandadjustable viewing angle 20°, provides excellent visibility when reversing in all conditions.

⚠Attention:
Before mounting, check the viewing angle and camera position at the mounting location using a test monitor.

• Design:plastic

• Color:black / red

• Guide lines:activated/deactivated by cable loop

• Viewing angle:horizontal 115°, vertical 75° (+5° adjustment)

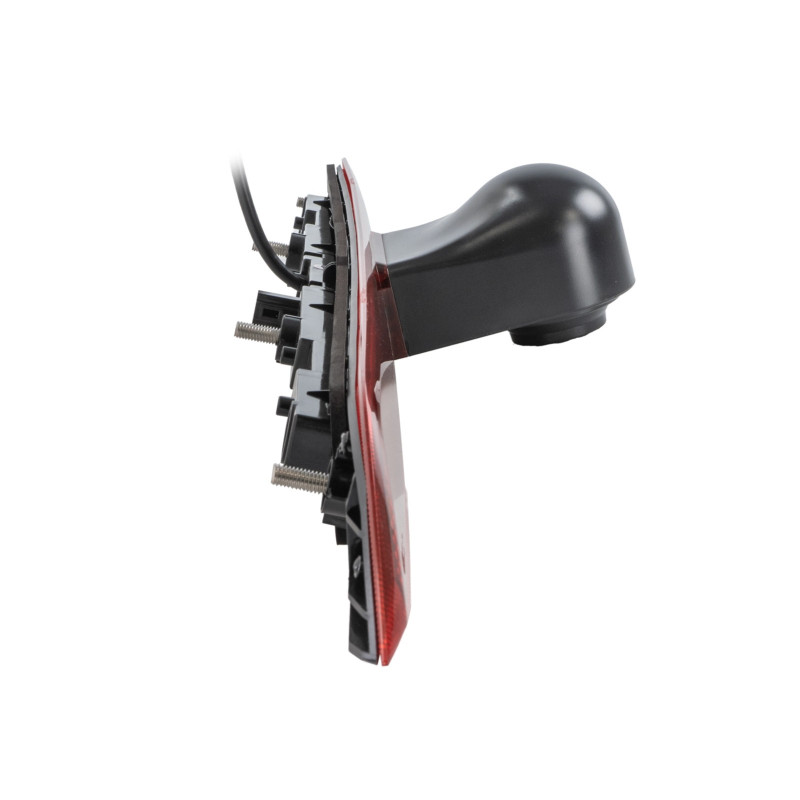

• Angle adjustment:up to 20°

• Image sensor:1/3" CMOS

• TV system:NTSC

• Effective pixels:976 × 592

• Lens:12.6 mm

• Minimum lighting:0 Lux (night view active)

• Night vision range:up to 35 feet

• Resolution:600 TV lines

• Degree of protection:IP67 (water and dust resistant)

• Operating voltage:+12V DC

• Power supply:+12V / +24V

• Power consumption:150 mA (when the night function is active)

• Operating temperature:-20°C ~ +70°C

• Storage temperature:-40°C ~ +80°C

• System connector:4-pin (m)

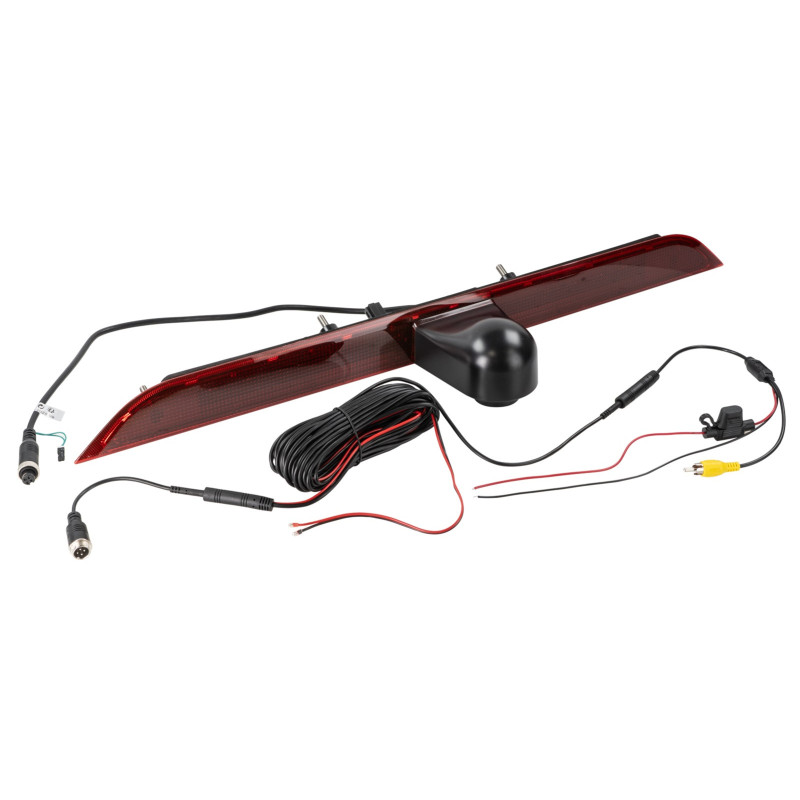

• Camera Cable (Pigtail):3.2 m

• Harness Adapter:4-pin system connector (f) → 4-pin ACV (m)
