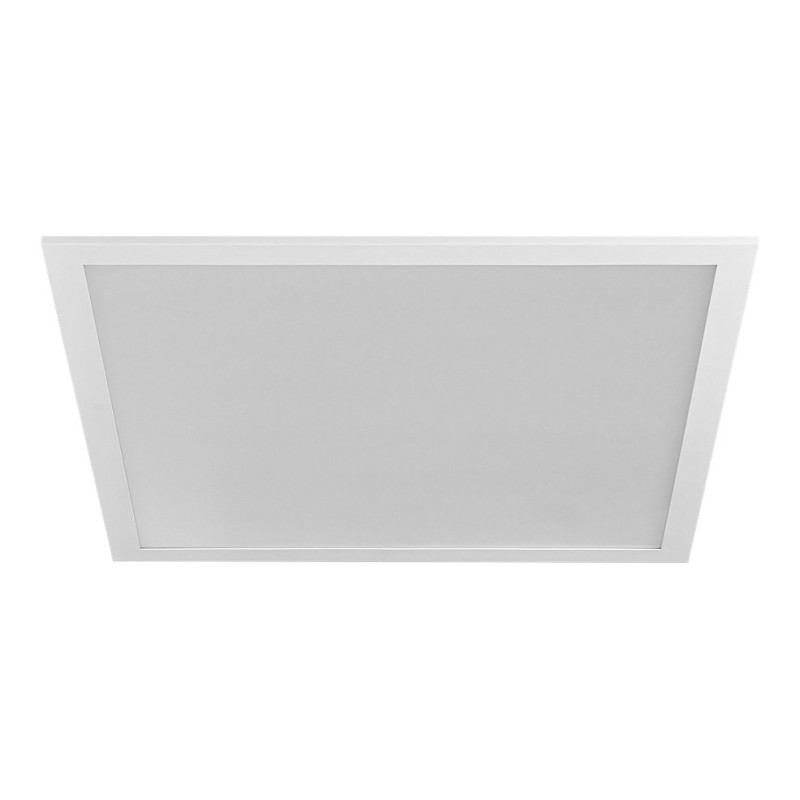

OPPLE Lighting LEDPanelS-E4 Sq620-32W-840

OPPLE Lighting LEDPanelS-E4 Sq620-32W-840. Shape: Square, Product colour: White, Housing material: Aluminium, Polystyrene (PS). Power consumption (max): 32 W, Light colour type: White, Light output (max): 4100 lm. Power source type: AC, Input voltage: 220-240 V, AC input frequency: 50/60 Hz. Width: 620 mm, Depth: 620 mm, Height: 35 mm. Glow-wire test: 650°C, Driver failure rate at 5000 h: 1%, Median useful life L70B50: 60000 h

Slim Panel EcoMax G4
LEDPanelS-E4 Sq620-32W-840

Features

Shape: Square
Product colour: White
Housing material: Aluminium, Polystyrene (PS)
International Protection (IP) code: IP20
Protection class: II
Mechanical impact protection code: IK03
Feature: Dimmable
Average ambient temperature: 25 °C

Lamps

Power consumption (max): 32 W
Light colour type: White
Colour temperature (max): 0 K
Light output (max): 4100 lm
Color Rendering Index (CRI): 80
Beam angle (max): 115°
Luminous efficacy: 130 lm/W
Number of switch cycles: 100000
Bulb lifetime: 60000 h
Power factor: 0.9
Equivalent bulb power: 18 W

Power

Input voltage: 220-240 V
AC input frequency: 50/60 Hz
Power source type: AC
Operating current: 0.15 A
Inrush current: 40 A
Inrush time: 316 ms
DC input voltage: 180-280 V
AC input voltage: 220-240 V

Weight & dimensions

Width: 620 mm
Depth: 620 mm
Height: 35 mm
Weight: 1.73 kg
Cable length: 1 m

Packaging content

Feature: Remote control included

Other features

Glow-wire test: 650°C
Driver failure rate at 5000 h: 1%
Median useful life L70B50: 60000 h
Median useful life L80B50: 50000 h
Operating temperature (T-T): -10 - 45 °C

Logistics data

Pallet net height: 63 cm
Pallet net length: 67.3 cm
Pallet net width: 4 cm
Pallet net weight: 2.36 kg
