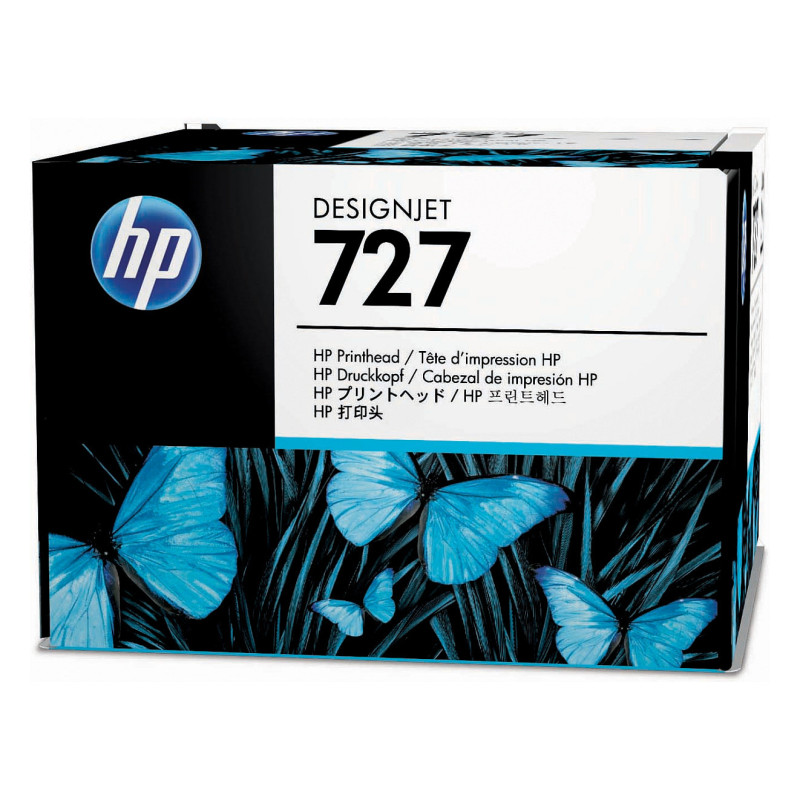

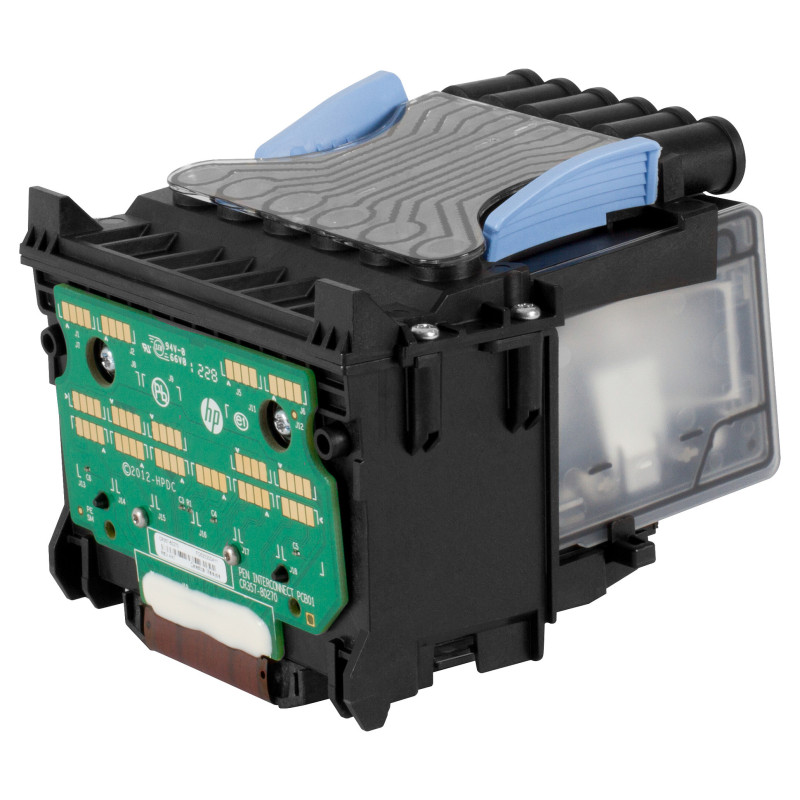

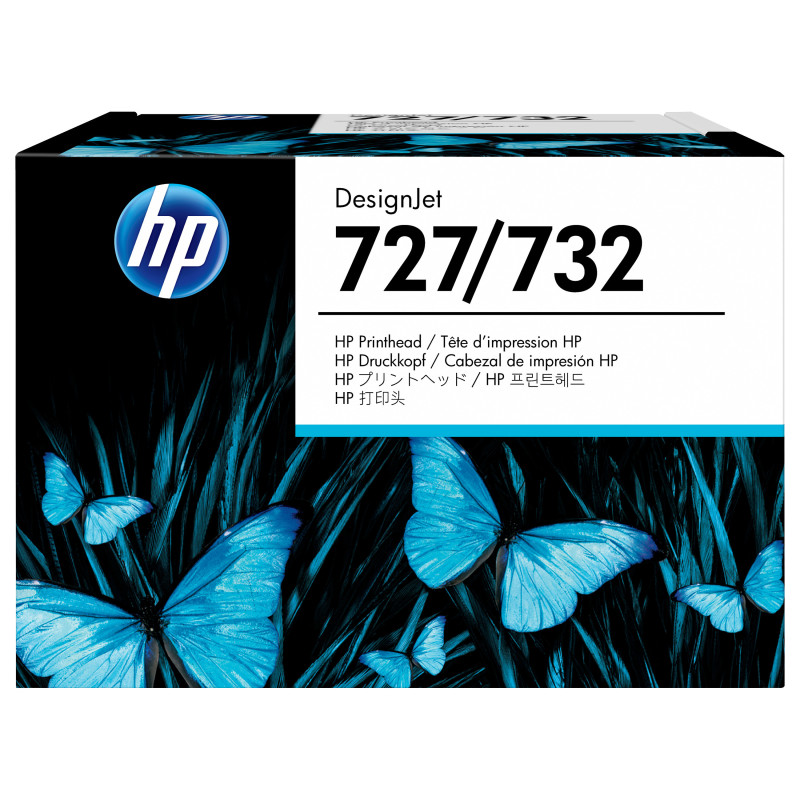

HP 727 / 732 DesignJet Printhead print head

HP 727 DesignJet Printhead. Compatibility: HP DesignJet T920 Printer series; HP DesignJet T1500 Printer series; HP DesignJet T1600 Printer..., Print technology: Thermal inkjet, Printing colours: Cyan, Photo black, Magenta, Yellow. Width: 173 mm, Depth: 120 mm, Height: 170 mm. Package width: 173 mm, Package depth: 120 mm, Package height: 170 mm. Master (outer) cases per pallet: 20 pc(s), Products per pallet: 360 pc(s), Layers per pallet: 4 pc(s). Quantity per box: 1 pc(s)
Ideal for AEC workgroups producing high-quality, professional drawings.
HP 727 Designjet Printheads make it easy to get consistent, professional results. The 6-colour Original HP printhead is designed together with your printer as an optimized printing system.

Performance

Print technology: Thermal inkjet
Printing colours: Cyan, Photo black, Magenta, Yellow
OEM code: B3P06A
Country of origin: Singapore

Weight dimensions

Width: 173 mm
Depth: 120 mm
Height: 170 mm
Weight: 410 g

Packaging data

Package width: 173 mm
Package depth: 120 mm
Package height: 170 mm
Package weight: 600 g

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -25 - 55 °C

Logistics data

Master (outer) cases per pallet: 20 pc(s)
Pallet dimensions (W x D x H): 1016 x 1219.2 x 1722.12 mm
Products per pallet: 360 pc(s)
Layers per pallet: 4 pc(s)
Pallet dimensions (W x D x H) (imperial): 1016 x 1219.2 x 1722.1 mm (40 x 48 x 67.8")
Pallet size (EU): 1016 x 1219.2 x 1722.12 mm
Pallet weight (imperial): 250 kg (551.2 lbs)
Pallet gross weight: 250 kg
Products per master (outer) case: 18 pc(s)
Master (outer) case gross weight: 11.8 kg
Quantity per pack: 1 pc(s)
Pallet weight (EU): 250 kg
Harmonized System (HS) code: 84439990

Technical details

Box contents: Printhead
Total carbon footprint (kg of CO2e): 20.7
Master (outer) cases per pallet layer: 5 pc(s)

Other features

Quantity per box: 1 pc(s)
UNSPSC-code: 44103105
