i-dapter Skoda / VW models 52Pin Quadlock Multilead

Infoadapter Skoda / VW

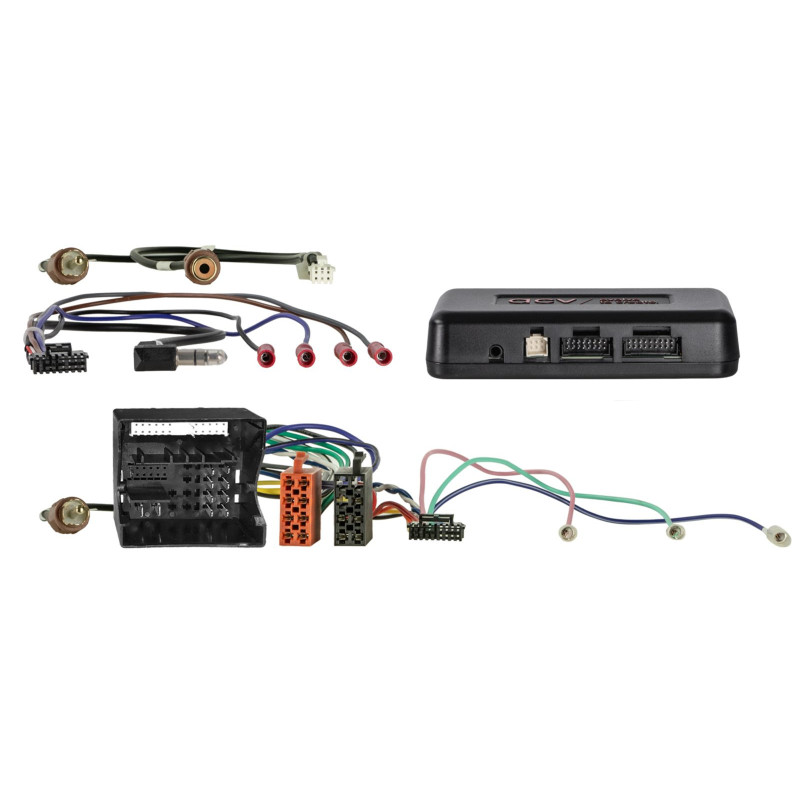

The Infodapter allows you to retain some of the functionality of your vehicle's factory display when replacing the factory radio or navigation system with an aftermarket head unit.

Features and capabilities

• Display vehicle-specific settings on the aftermarket head unit.

• SWC button support is required to configure the Infodapter.

• Depending on the vehicle equipment and HU software, some functions may be omitted or replaced.

• Not all driver assistance functions, such as Trailer Assist, E-Call, PDC or other comfort systems, are supported.

Pre-installation requirements

1. Check the compatibility of the OEM HU unit with the visual and technical fit of the connectors.

2. Verify operation of all vehicle settings and functions before final installation.

3. If you have any problems, please contact support

Connectors and signals

• Main connector:52-pin Quadlock VAG

• SWC:OEM > 3.5mm Jack / loose

• Reversing camera:RCA(m) ochre

• Vehicles with MIB-PQ OEM system:activates and configures the rear view camera input

Reversing camera inputs in retrofit HU:

• Purple/White: +12V Reverse Signal

• RCA(m) ochre: rear view camera input

Vehicles with SWC:

• Press and hold the SWC "track up" button or select item: 43x-remote

Vehicles without SWC:

• i-adapter accessories remote control > interface settings: item 43x-remote

Special Notes

• If you have problems with the camera image or i-dapter visualization, please connect an additional GND signal to the external RCA cable of the camera and the HU connection.

• On vehicles with front PDC, the display is activated when the ignition is switched on and the +12V reverse gear signal is switched off above 3 km/h.

• Not all vehicle settings, features or information are fully supported.

Installation - step by step

1. Check all vehicle functions and settings in the original HU.

2. Disconnect the HU from the power supply.

3. Check all unpowered interface connections for correctness.

4. Connect the radio connection cable according to the HU instructions.

5. Connect the remaining wires according to the HU instructions.

6. Connect the entire system to the vehicle, with the main connection connected last.

7. Configure the interface software according to the instructions.

8. Configure your upgrade device: steering wheel remote control, camera, FSE, power
