Network Board - Digitus Internal Ethernet 2500 Mbit/s
Product reference:
14-4016032473978
2500 Mbit/s data transfer rate with Realtek RTL8125B chipset and 2.5 Gigabit Ethernet interface. Supports Linux, Windows Server and Windows operating systems, as well as Wake-on-LAN and IEEE 802.3x standards compatibility.
Network Board - Digitus Internal Ethernet 2500 Mbit/s
Product reference:
14-4016032473978
2500 Mbit/s data transfer rate with Realtek RTL8125B chipset and 2.5 Gigabit Ethernet interface. Supports Linux, Windows Server and Windows operating systems, as well as Wake-on-LAN and IEEE 802.3x standards compatibility.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Not available

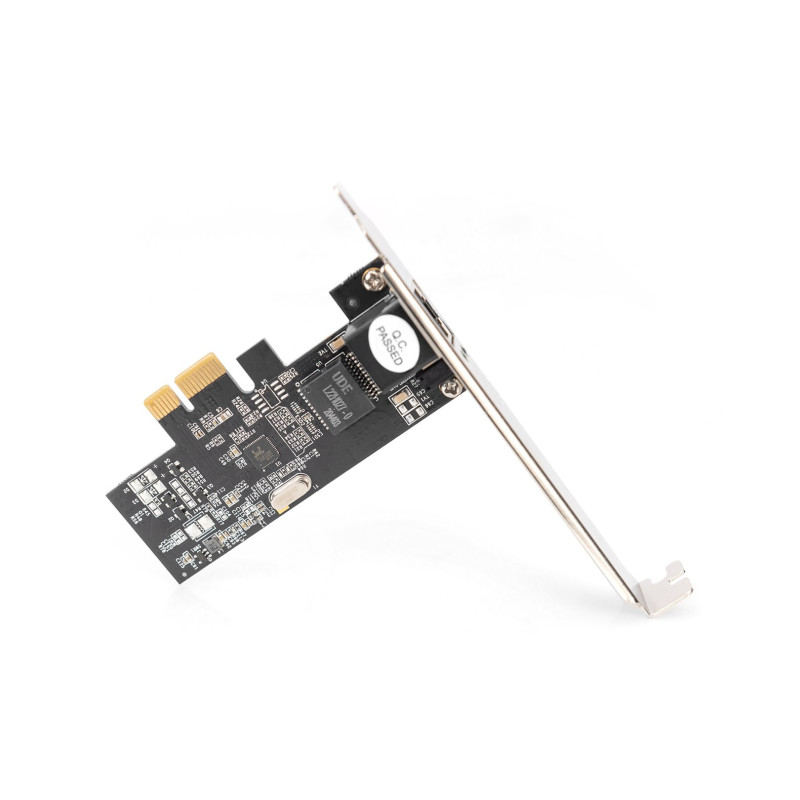

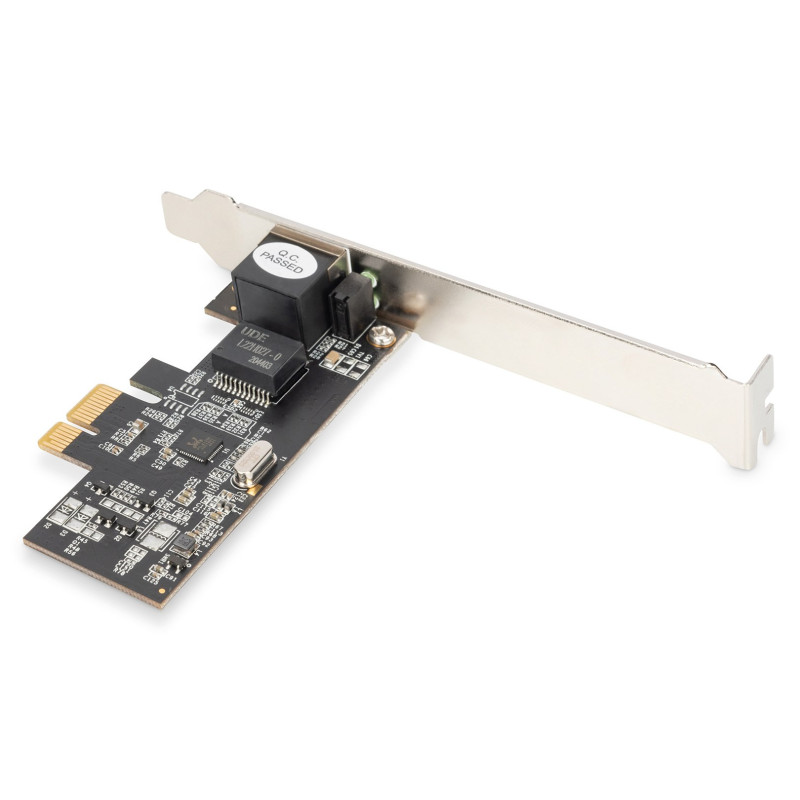

Digitus Gigabit PCI Express Card 2.5G
The Digitus Gigabit Ethernet PCI Express network card 2.5G provides speeds of up to 2500 Mbit/s, ideal for servers and workstations, using the Realtek RTL8125B chip.
Main features
- 2.5 Gigabit Ethernet interface
- Supports Wake-on-LAN and IEEE 802.3x standards
- Compatible with Linux, Windows Server and Windows operating systems
Maximum data transfer rate: 2500 Mbit/s
Design | |
|---|---|
| Product color | Black |
| Plug and Play | Yes |
| Component | Server/workstation |
| LED indicators | Yes |
| Internal | Yes |
| Microchip | Realtek RTL8125B |
Operating conditions | |
| Operating temperature (OT) | 5 - 50 °C |
| Operating relative humidity (HH) | 20 - 80% |
Weight and dimensions | |
| Weight | 35.2 grams |
| Width | 120mm |
| Depth | 98 mm |
| Height | 22 mm |
Network | |
| Maximum data transfer speed | 2500 Mbps |
| Wake-on-LAN ready | Yes |
| Network standards | IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 2500 Mbit/s, 100, 1000 Mbit/s, 10 |
System requirements | |
| Supported Linux operating systems | Yes |
| Supported server operating systems | Windows Server 2008 R2, 2012 R2, 2016 |
| Supported Windows operating systems | Windows 10, 7, 8 |
Package contents | |
| Mounting brackets included | Yes |
| Quick Installation Guide | Yes |
Ports and interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Communication technology | Wired |
| Host interface | PCI Express |
| PCI version | 2.1 |
| PCI card form factor | Full height (low profile) |
| Height | 140mm |
| Length | 200mm |
| Weight | 190 g |
| Width | 30 mm |
