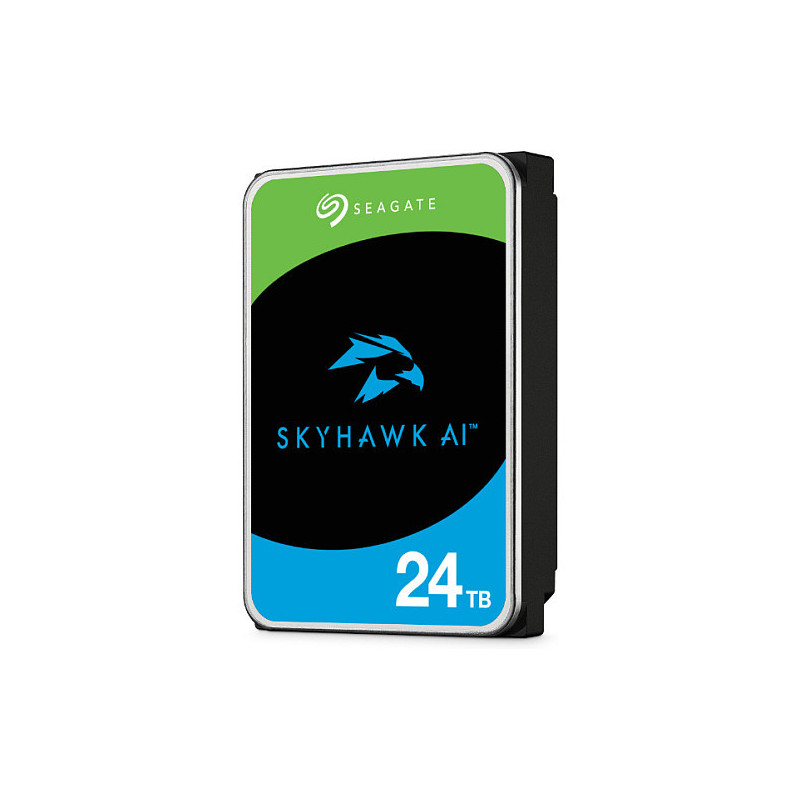

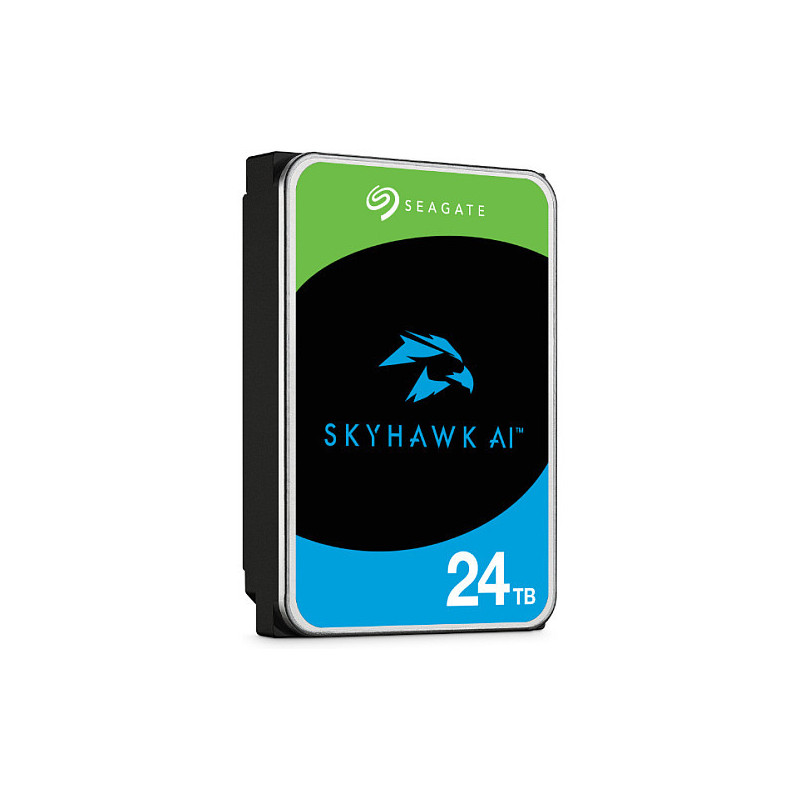

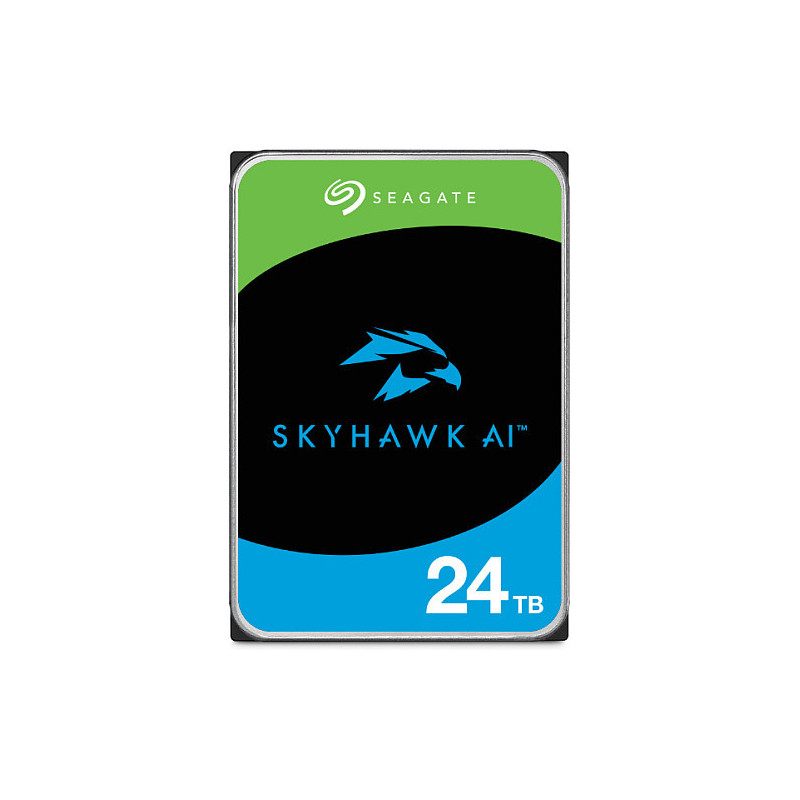

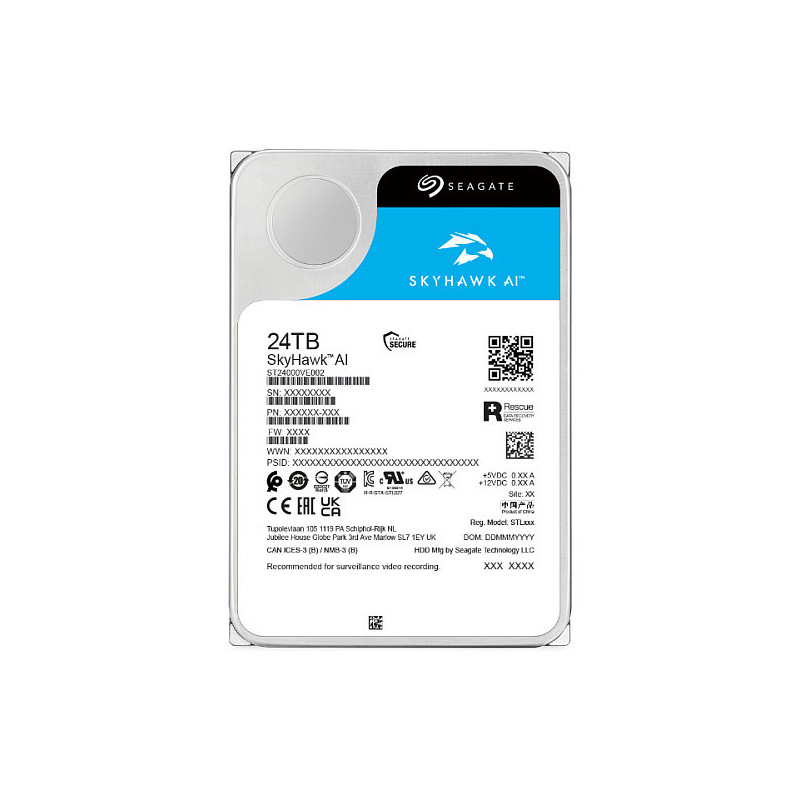

Seagate SkyHawk AI internal hard drive

Seagate SkyHawk AI. HDD capacity: 24 TB, HDD speed: 7200 RPM, Storage drive buffer size: 512 MB, HDD size: 3.5", Interface: Serial ATA III

A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.

SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.

SkyHawk
24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.

Drive Health and Data Recovery
When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1

In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.

Features

HDD capacity: 24 TB
HDD speed: 7200 RPM
Storage drive buffer size: 512 MB
HDD size: 3.5"
Interface: Serial ATA III
Type: HDD
Component for: Surveillance system
HDD interface transfer rate: 6 Gbit/s
HDD sustained transfer rate: 260 MiB/s
Uncorrectable Bit Error Rate (UBER): < 1 per 10^15 bits read
Feature: Rotational Vibration (RV) sensors
Number of AI channels: 32
Start/stop cycles: 600000
Mean time between failures (MTBF): 2000000 h

Power

Power consumption (typical): 7.72 W
Power consumption (standby): 1 W
Power consumption (idle): 3.5 W
Operating voltage: 5 / 12 V
Start-up current: 2 A

Operational conditions

Operating temperature (T-T): 0 - 65 °C

Weight & dimensions

Width: 101.8 mm
Height: 26.1 mm
Depth: 147 mm
Weight: 680 g

Logistics data

Products per pallet layer: 8 pc(s)
Harmonized System (HS) code: 84717050
Master (outer) cases per pallet: 40 pc(s)
Products per master (outer) case: 20 pc(s)

Other features

Maximum number of cameras supported: 64
