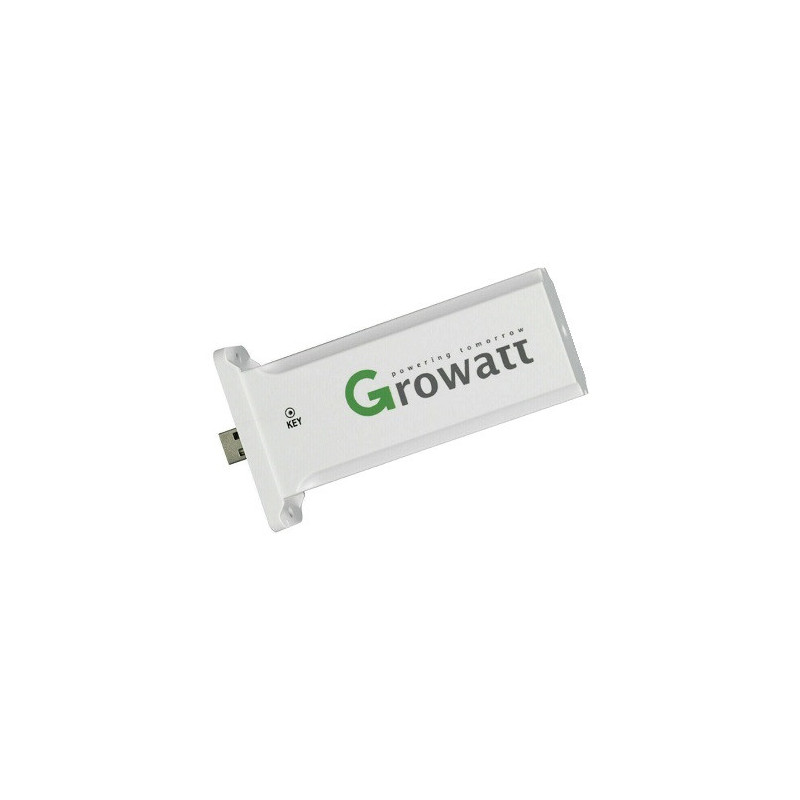

GROWATT Internet Interface Shine WiFi-F

Growatt Internet interface Shine WiFi-FFeatures:The interface is designed to link the Growatt inverter parameters to the Cloud server via Wi-Fi and monitor the operation of the solar power plant and the energy produced. The device is connected to the solar inverter to remotely detect and possibly eliminate faults in the PV system. The USB dongle with a range of 50 meters (max. 100m without obstacles) and integrated memory connects your PV system to Wi-Fi. The data of the connected inverter is saved for 30 days, even if the internet connection is lost. Suitable for all Growatt inverters (Off-grid - without external power supply).Technical data:Supported network: Wi-Fi 2.4GHz. Max. communication range: 100m. Wi-Fi wireless communication standard: IEE802.11 b/g/n. Transmission power: 802.11b: +20dBm(max.); 802.11g: +18dBm(max.); 802.11n: +15dBm(max.). Receiver sensitivity: 802.11b: -89dBm(max.); 802.11g: -81dBm(max.); 802.11n: -71dBm(max.). Voltage: 5V. Current: 1A. Interface: USB Type-A. Data interface: UART 9600bps; Ethernet 100Mbps. Network type: Access Point; Station mode (Station Mode with Soft AP). Security: WEP / WPA-PSK / WPA2-PSK / WAPI. Encryption: WEP64 / WEP128 / TKIP / AES. Supported server: ShineServer (server-cn.growatt.com). Data transmission interval: 5 min. Operating temperature: -20°C ~ +65°C. Dimensions: 135x79x29 mm. Weight: 63g.Warranty:12 months
