Queclink GL601CEU Solar, 4G, IP67, works 5-10 years
Product reference:
44-6711
LTE tvirtas, vandeniui atsparus, saulės energija įkraunamas turto sekiklis
Queclink GL601CEU Solar, 4G, IP67, works 5-10 years
Product reference:
44-6711
LTE tvirtas, vandeniui atsparus, saulės energija įkraunamas turto sekiklis
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 5
business days
LTE rugged, waterproof, solar-powered asset tracker
- LTE CAT 1 with 3G and 2G backup

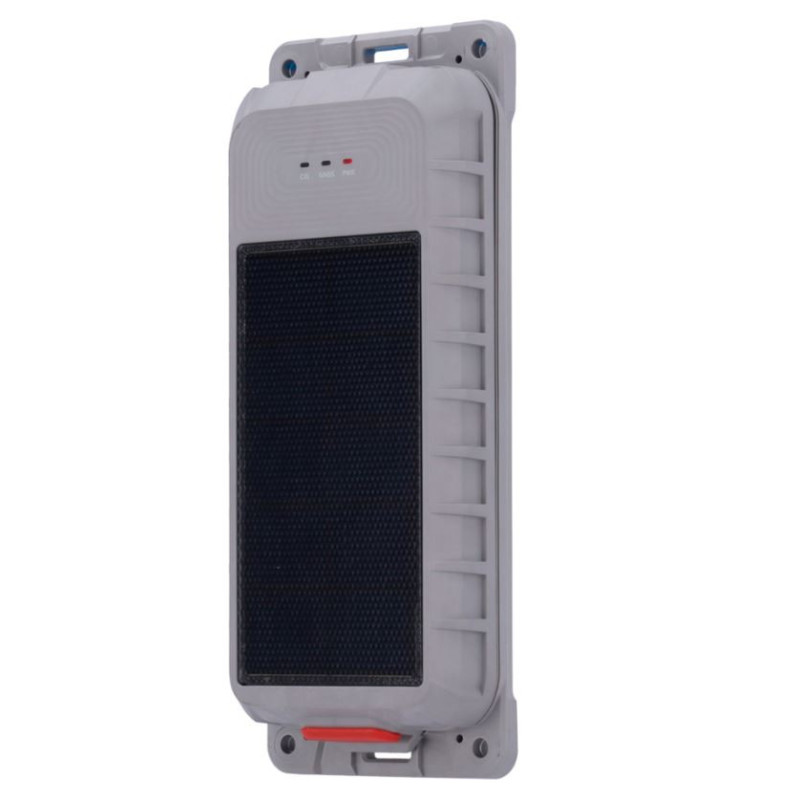

- Solar charging
- Operating time 5 to 10 years , depending on sunlight
- Rugged housing
- IP67 waterproof
- BLE 5.0
- Wi-Fi scanning
- Geo-fencing
- Tamper Detection
- Motion Detection
- OTA Control
The GL601CEU is a rugged, autonomous LTE CAT 1 tracker with 3G and 2G backup, ideal for efficient management of containers, trailers and rail cars. Thanks to its advanced solar energy harvesting technology, it can operate without any maintenance for up to 10 years. The built-in rechargeable large battery supports multi-mode operation according to transportation needs, ensuring real-time tracking while moving or infrequent reporting when the device is stationary. With LTE Cat1 technology, you no longer need to worry about network coverage during inter-regional transport. Additionally, it features a light sensor for tamper warnings, a temperature sensor for monitoring environmental conditions, and advanced features with BLE and Wi-Fi connectivity.
LTE specifications
| Operating range | LTE-FDD: LTE Category 1: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 |
EGPRS specifications
| Frequency | EFPRS: 900/1800 MHz |
GNSS specifications
| GNSS type | Universal multi-system GNSS receiver |
| Systems support | GPS, BEIDOU, GLONASS, GALILEO, AGPS |
| Position accuracy (m@CEP50) | Autonomous: < 2.5 m |
General specifications
| Dimensions | 212 (L) × 86 (W) × 30 (H) mm 8.35 (L) × 3.39 (W) × 1.18 (H) in |
| Weight | 572 g (20.2 oz) |

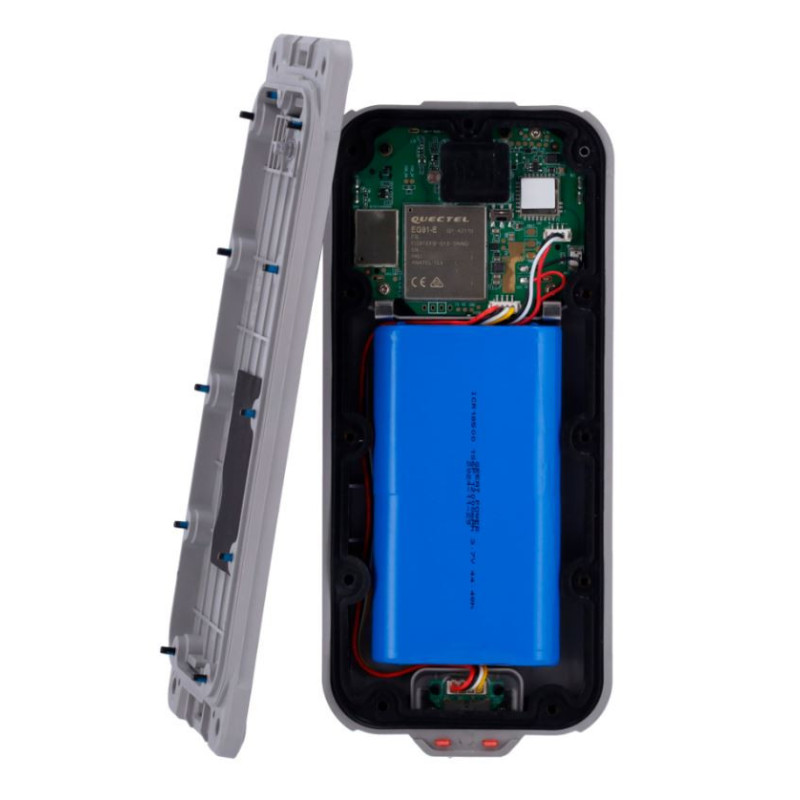

| Internal battery | 6 x ICR18500 lithium batteries, 3.7 V, 12000 mAh |
| Standby time | Continuous mode: 1 report/minute (2 working hours per day): 80 days; Sleep mode: 1 report/hour: 5 months; 1 report/day: 5 years; 1 report/day (requires regular solar charging): 10 years. |
| Water resistance | IP67 |
| Operating temperature | -20 °C~+70 °C (-4 °F~+158 °F) |

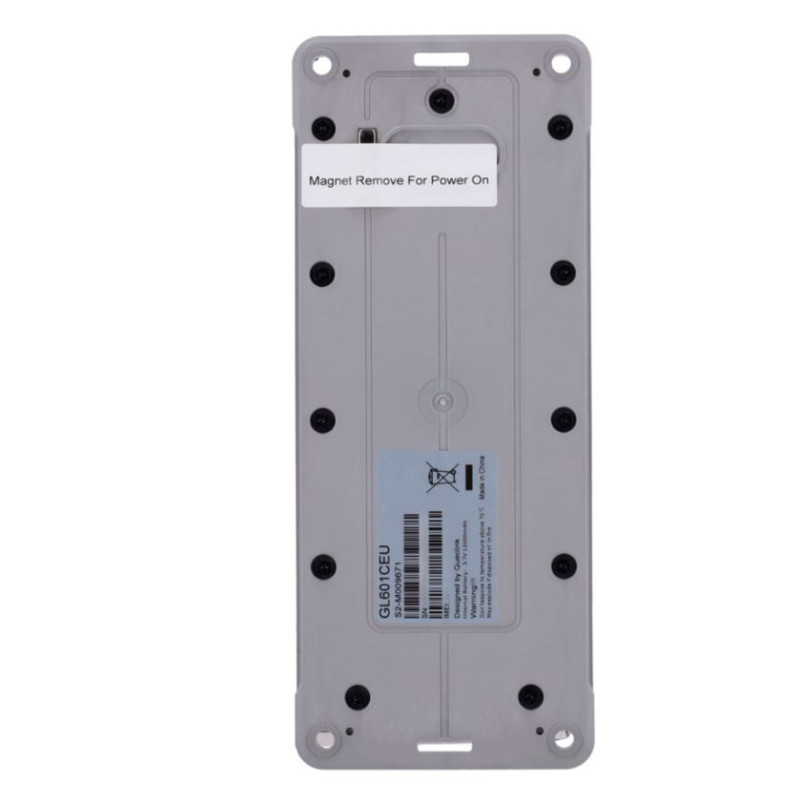

| Mounting | Screw/magnet mounting Additional strong steel cable |
| Region | EMEA |
| Certification | CE (Planning) |
Interfaces

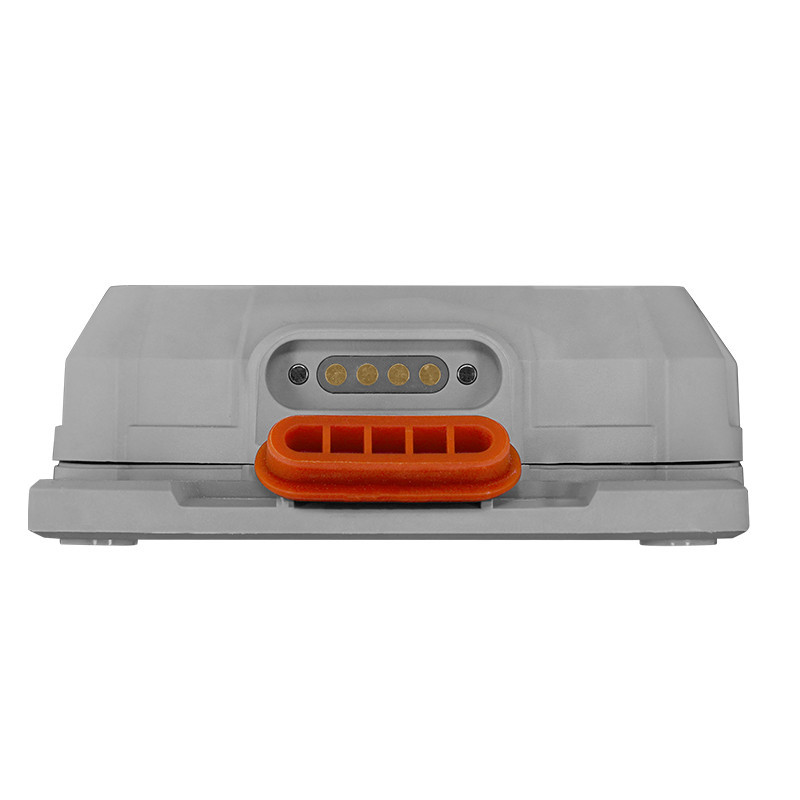

| Charging port | 4-pin magnetic connector for charging and configuration/software update |
| Cellular antenna | Internal |
| GNSS antenna | Internal |
| BLE antenna | Internal |
| WiFi antenna | Internal |
| LED indicators | GNSS, CEL, PWR |
Network Interface Protocol
| Transmission Protocol | TCP, UDP, SMS |
| Scheduled Time Report | Report Notifications at Set Time Intervals |
| Geo-Fences | Automatically reports entry/exit of Geo-Fence |
| Low power alarm | Alarm when internal battery is low |
| Battery status | Report battery health (%)/status |
| Temperature monitoring | Report ambient temperature at set time intervals |
| Tamper detection | Alarm when device is removed |
| OTA control | Remotely configure parameters to change position range, measurement interval, enable/disable sensor, update firmware |
