Navilock NL-731ETTL GPS receiver module
Product reference:
29-4043619604470
Navilock NL-731ETTL, -162 dBmW, 56 channels, L1, 1605.375 MHz, 29 s, 1 s
Navilock NL-731ETTL GPS receiver module
Product reference:
29-4043619604470
Navilock NL-731ETTL, -162 dBmW, 56 channels, L1, 1605.375 MHz, 29 s, 1 s
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 10
business days
Navilock NL-731ETTL. Sensitivity: -162 dBmW, Channels quantity: 56 channels, Navigation signals supported: L1. Width: 10 mm, Depth: 12 mm, Height: 3.5 mm. Input voltage: 3.4 - 3.6 V

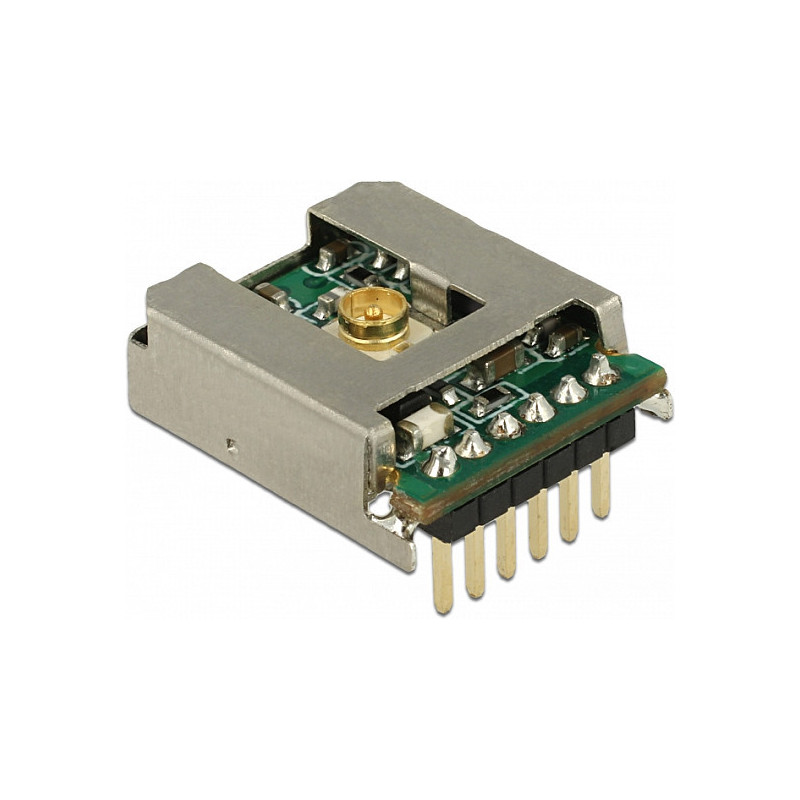

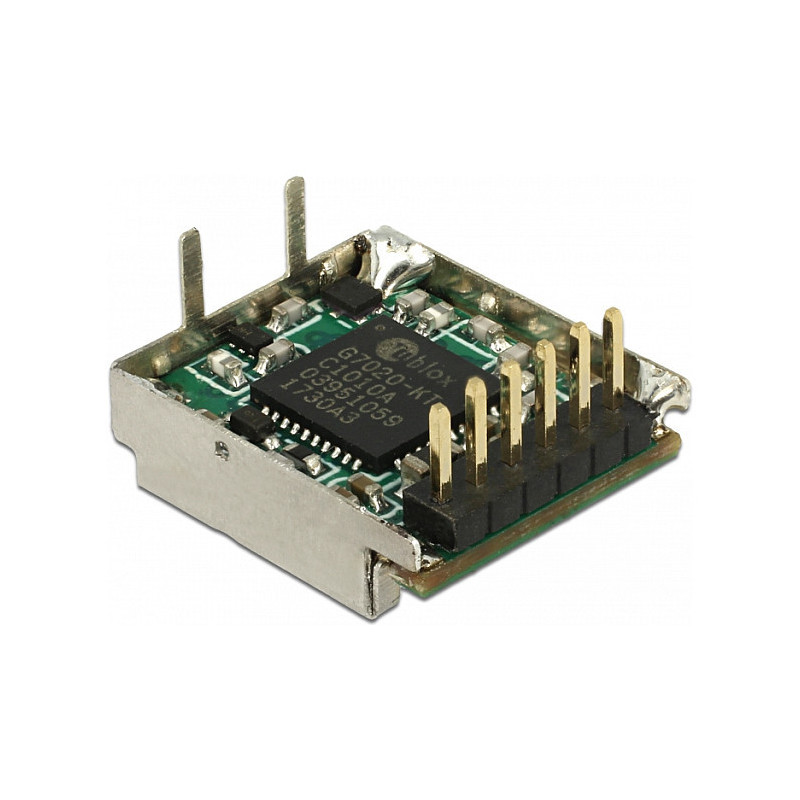

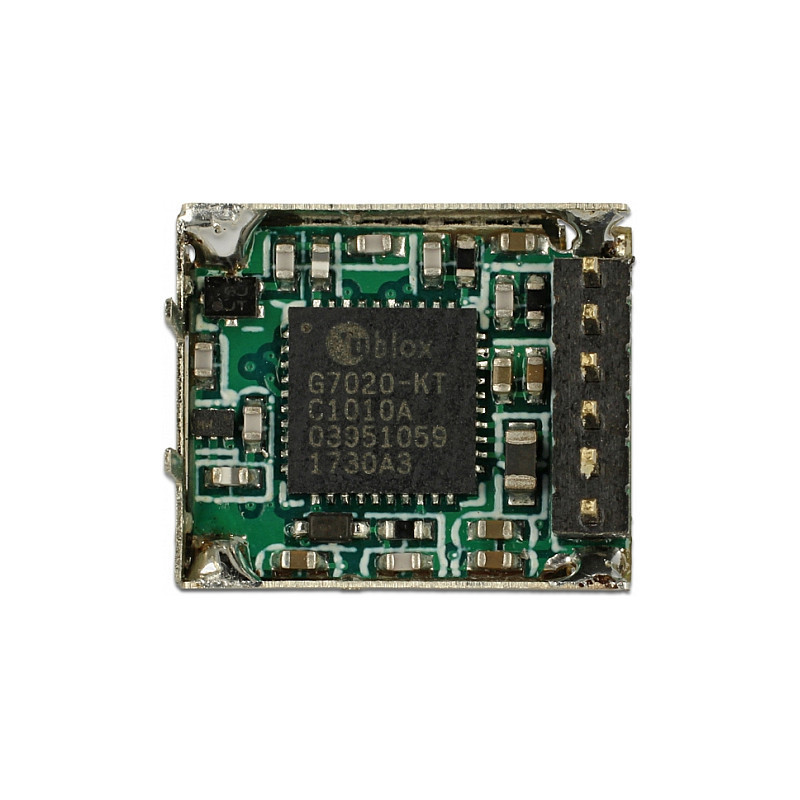

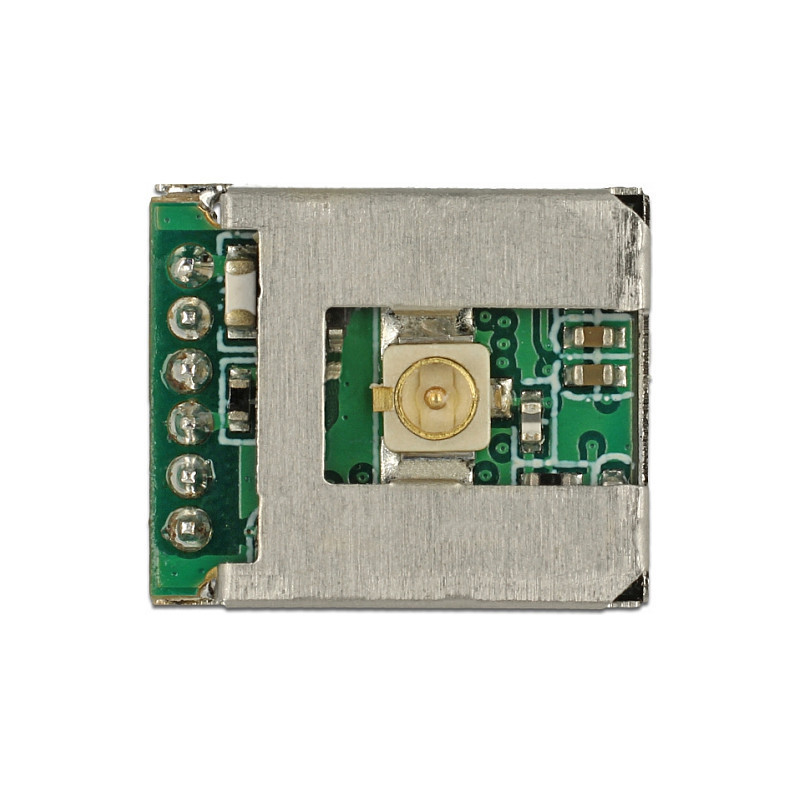

The NL-731ETTL by Navilock is an extremely small powerful GNSS GPS module with u-blox 7 chipset. It is characterized by fast response, high sensitivity and low power consumption.
GPS Performance
Navigation signals supported: L1
Frequency: 1605.375 MHz
Sensitivity: -162 dBmW
Channels quantity: 56 channels
Acquisition times - cold: 29 s
Acquisition times - hot: 1 s
GPS accuracy - position: 2.5 m
Update rate: 10 Hz
Baud rate: 115.2 Kbit/s
Technical details
Product colour: Silver
WAAS capability: Yes
Weight dimensions
Width: 10 mm
Depth: 12 mm
Height: 3.5 mm
Battery
Input voltage: 3.4 - 3.6 V
Operational conditions
Operating temperature (T-T): -40 - 85 °C
| Weight | 0 kg |
| Manufacturer code | 60447 |
