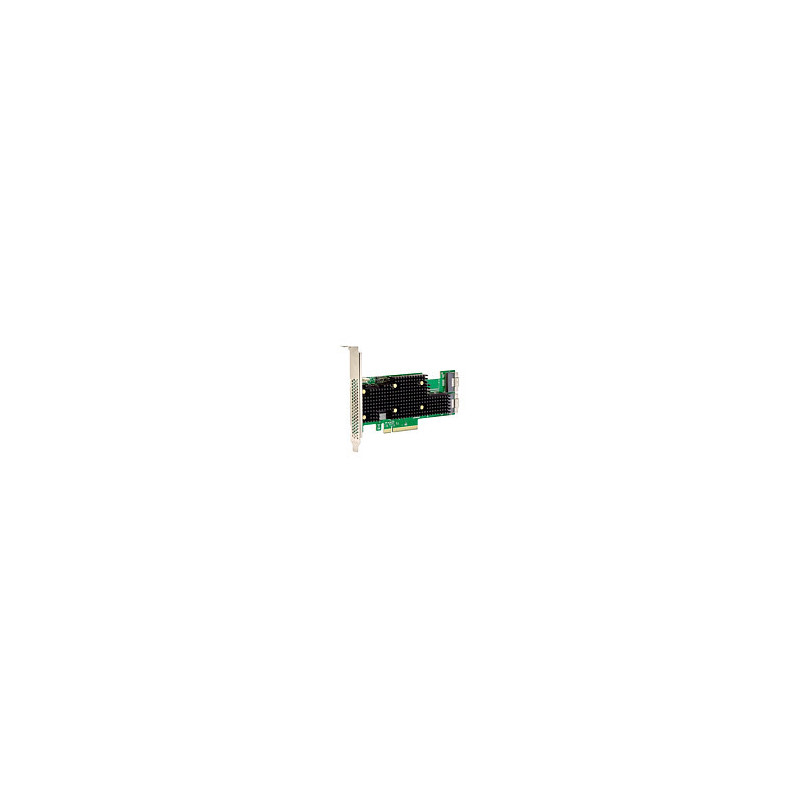

Broadcom BCM HBA 9600-16i SAS / SATA / NVMe interface cards / adapter

Broadcom BCM HBA 9600-16i SAS/SATA/NVMe. Host interface: PCIe, Output interface: SFF-8654. Purpose: Server, Cooling type: Passive, Mean time between failures (MTBF): 5000000 h. Data transfer rate (max): 22.5 Gbit/s. Power consumption (typical): 15 W. Width: 68 mm, Depth: 155 mm

The high-port 9600-16i Tri-Mode, PCIe Gen 4.0 eHBA (enhanced HBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9600-16i adapter delivers the performance and scalability needed by critical applications.

Ports & interfaces

Host interface: PCIe
Output interface: SFF-8654

Design

Feature: Internal
Purpose: Server
Cooling type: Passive
Mean time between failures (MTBF): 5000000 h

Features

Data transfer rate (max): 22.5 Gbit/s

Power

Power consumption (typical): 15 W

Operational conditions

Operating temperature (T-T): 0 - 95 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 68 mm
Depth: 155 mm
