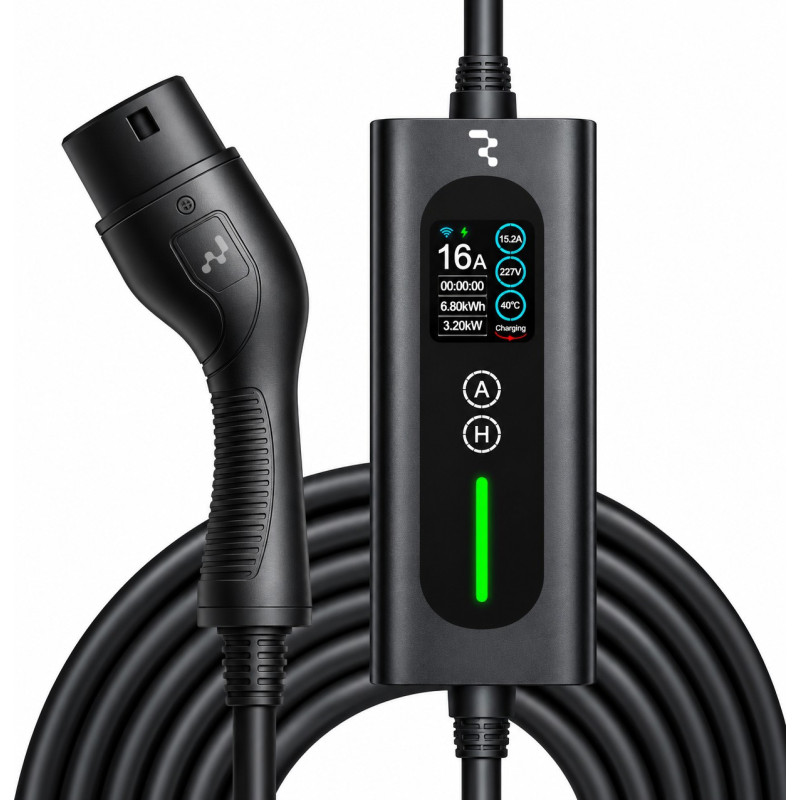

Electric car charger Reach PC62-11 3-phase Type2 16A 11kW 5.0m

Specification:
Connector type: Type 2 (IEC 62196) and CEE red 16 A plug
Charging current: 6-16 A (3-phase, adjustable)
Maximum charging power: 11 kW
Cable length: 5 m
Protection class: IP65
Operating voltage: AC 380-480 V
Block size: 220 x 100 x 60 mm
Protection class: IP65
Operating temperature: -30°C ~ +50°C
Operating humidity: 5% ~ 95% RH
RCD protection: Type B, 30 mA AC / 6 mA DC
Protection against overheating, overvoltage, undervoltage, overcurrent, current leakage, improper grounding, pulse overvoltages and improper network frequency.
Warranty: 24 months.

The set includes: charging station, power cord, wall mount with mounting screws, cleaning cloth

Real-time charging management
The integrated 2.4" display provides detailed information about the charging process in real time, allowing you to monitor and control charging parameters.

The following parameters are displayed:
Maximum current: The maximum current that the charging station can use.
Accumulated energy: Total energy accumulated during the charging session.
Charging time: How long it takes to charge.
Charging unit temperature: The current temperature of the charging unit.
Mains voltage: current mains voltage.
Instantaneous charging power: the actual power supplied to the car at this moment.
Instantaneous charging current: current charging current.
Charging status: Displays the current charging status.

On-screen control menu options:
Current change: possibility to change the charging current - 6 / 8 / 10 / 13 / 16 A.
Charging start time setting: Ability to set the charging start time up to 12 hours in advance.
Grounding mode control: the ability to enable or disable grounding protection mode depending on the usage circumstances.
